Introduction

What is LoRa?
• LoRa stands for Long Range Radio. It is the wireless technology mainly targetted for M2M and IoT networks. This technology will enable public or multi tenant networks to connect multiple applications running in the same network. This LoRa technology will fulfill to develop smart city with the help of LoRa sensors and automated
products/applications.
• LoRa Alliance formed to standardize LPWAN (Low Power Wide Area Network) for M2M/IoT. The prospective members in this alliance are Actility, Cisco, Bouygues Telecom, Proximus, SingTel, Semtech, Swisscom, IBM, SingTel, KPN etc. The LoRa Alliance will drive global success of LoRa Protocol i.e. LORA WAN.



Product Introduction

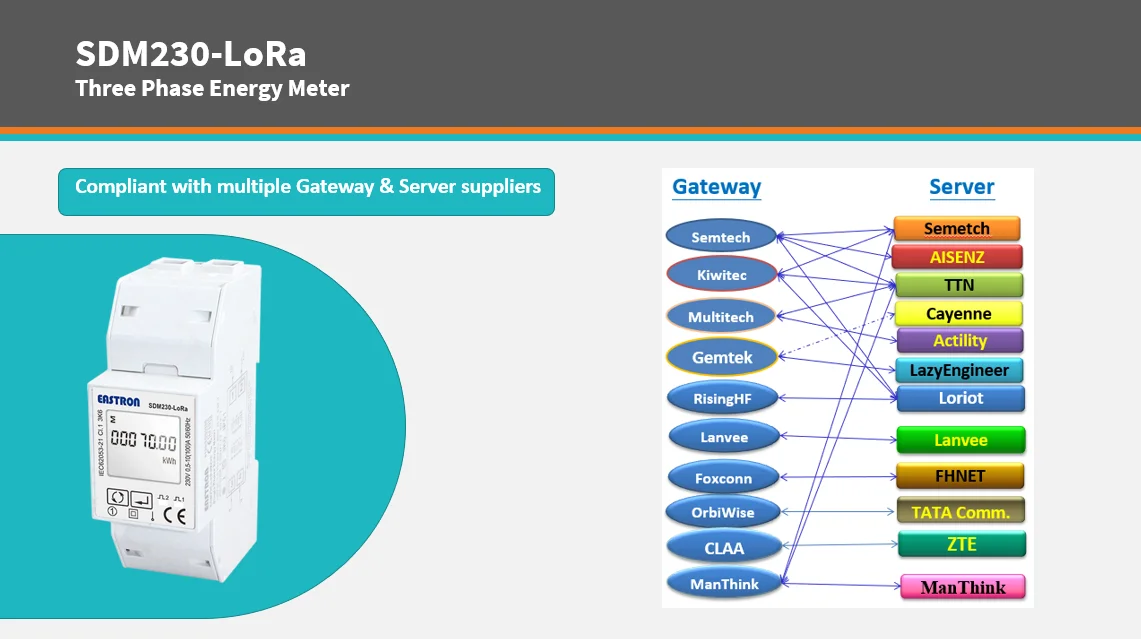

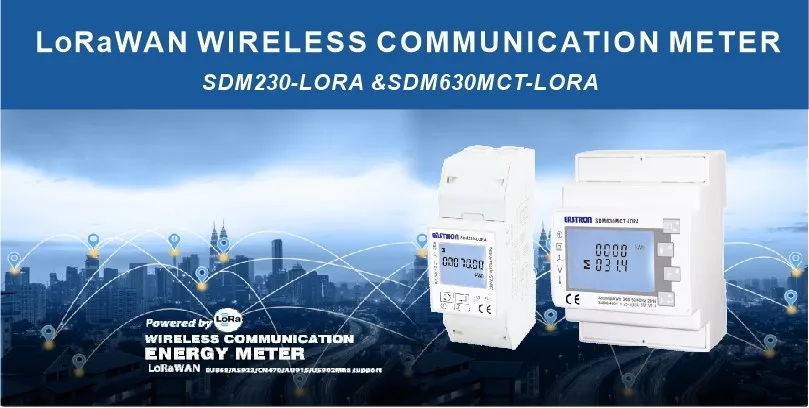

The SDM230-Lora is a new generation single phase multi function energy meter with wireless communication. With a built-in LoRaWAN module,it can be connected to any standard LoraWAN gateway directly, the user can easily build a wireless meter reading system.
The Unit measures and displays the characteristics of single phase two wire(1P2W) networks. The measuring parameters include voltage(V), Current (A), Frequency (Hz), Power(kW/kVAr/kVA), import/export/total energy(kWh/kVArh). The unit can also measures Max. demand current and power at preset period of up to 60 minutes.
Product Parameters
Specifications
Input Voltage
230VAC (80%~120%)
Input Current
0.5~10(100)A
Frequency
50/60Hz
Network
L+N
Output
Pulse Output
Communication
Standard LoRaWAN protocol
Available frequency
AS923/ EU868/AU915...
Measurements
V,A, Hz, PF, kWh, kVArh, P,Q,S, etc.
Installation Category
CAT II
Accuracy
Voltage
0.5% of range maximum
Current
0.5% of nominal
Frequecy
0.2% of mid-frequency
Power factor
1% of uity (0.01)
Active power(W)
±1% of range maximum
Reactive power(VAr)
±1% of range maximum
Apparent power(VA)
±1% of range maximum
Active energy(Wh)
Class 1 IEC 62053-21
Reactive energy(VARh)
Class 2 IEC62053-23
Environmental Characteristics
Operating Temperature
-25C to 55C
Storage Temperature
-40C to 70C
Humidity Rating
<95% RH at 50 C (non-condensing)
Pollution Degree
2
Altitude
2000m
Mechanical Characteristics
Weight
250g
IP Degree of Protection (IEC 60529)
IP51 front display
Dimensions (WxHxD)
100x36x63mm
Mounting Position
Vertical
Panel Thickness
1~5mm
Material of meter case
Self-extinguishing UL 94 V-0
