IntroductionWhat is LoRa?- LoRa stands for Long Range Radio. It is the wireless technology mainly targetted for M2M and IoT networks. This technology will enable public or multi tenant networks to connect multiple applications running in the same network. This LoRa technology will fulfill to develop smart city with the help of LoRa sensors and automated
products/applications.
- LoRa Alliance formed to standardize LPWAN (Low Power Wide Area Network) for M2M/IoT. The prospective members in this alliance are Actility, Cisco, Bouygues Telecom, Proximus, SingTel, Semtech, Swisscom, IBM, SingTel, KPN etc. The LoRa Alliance will drive global success of LoRa Protocol i.e. LORA WAN.

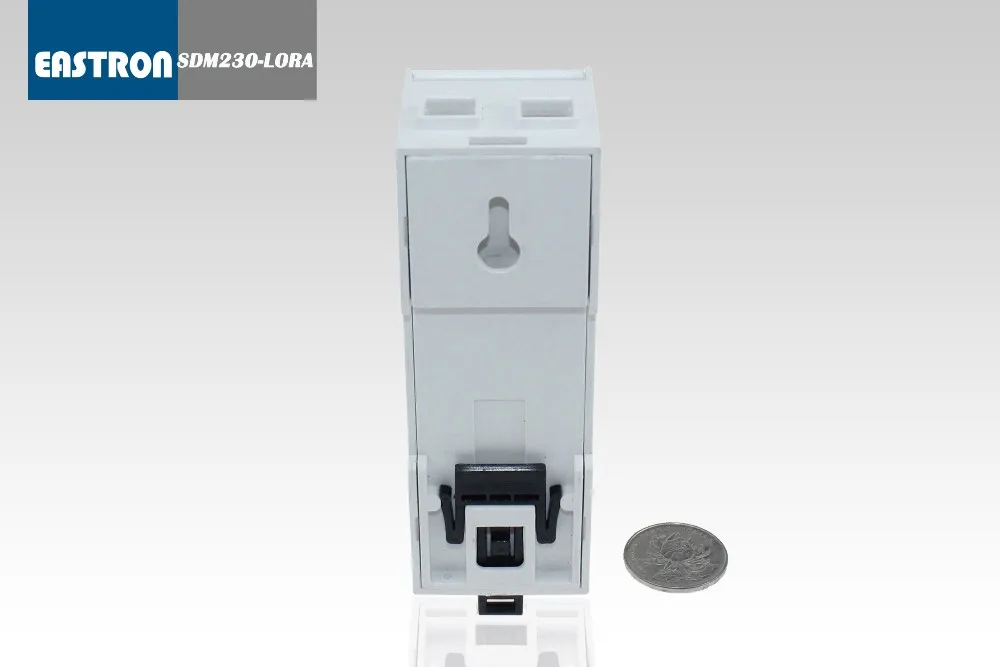

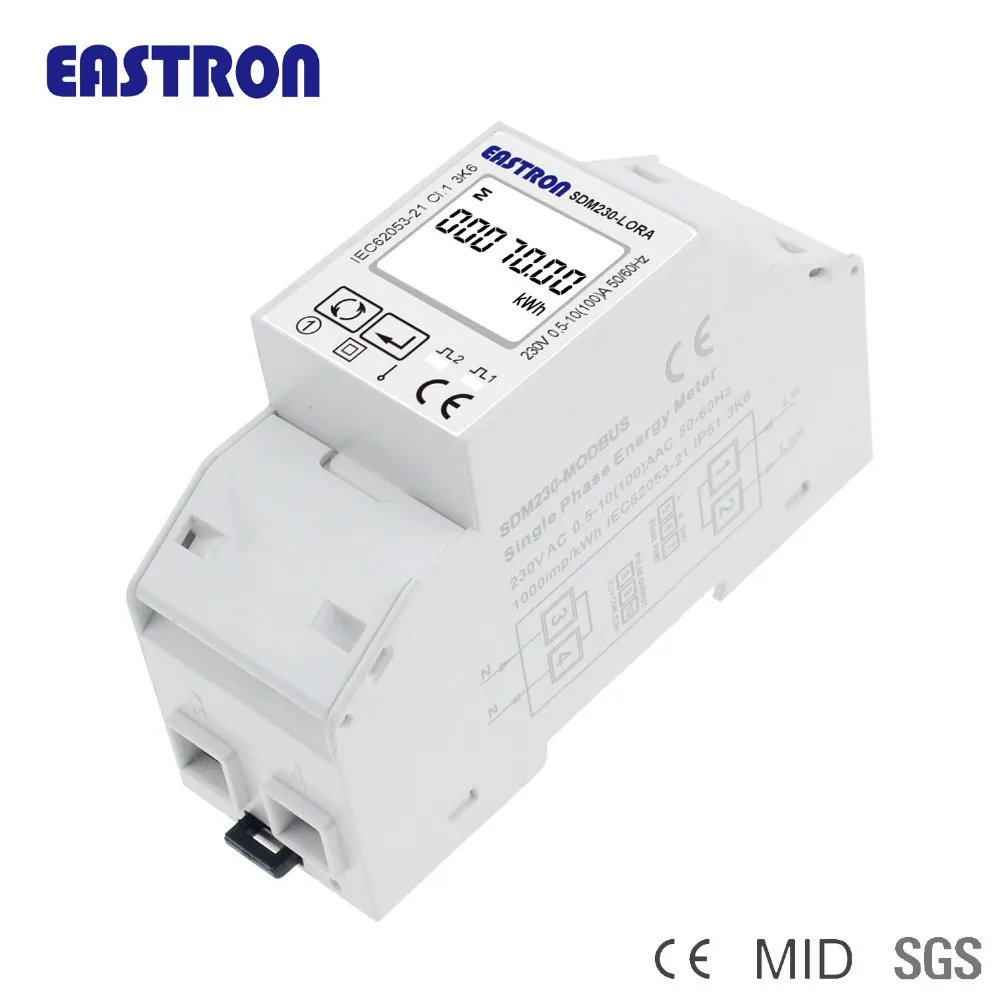

Product IntroductionThe SDM230-Lora is a new generation single phase multi function energy meter with wireless communication Lora module built inside. with Eastron lora gateway ESP-6 , the user can easily build a wireless meter reading system.
The Unit measures and displays the characteristics of single phase two wire(1P2W), single phase three wire (1P3W) networks. The measuring parameters include voltage(V), Current (A), Frequency (Hz), Power(kW/kVar/kVA), import/export/total energy(kWh/kVarh). The unit can also measures Max. demand current and power at preset period of up to 60 minutes.

Product Parameters Specifications
Input Voltage 230VAC (80%~120%)
Input Current 0.5~10(100)A
Frequency 50/60Hz
Network L+N
Output LoRa
Communication Speed 5.17~0.27kbps
Spreading Factor 7~12
Measurements V,A, Hz, PF, kWh, kVarh, dmd, P,Q,S, etc.
Electromagnetic Compatibility IEC61326-1:2013
Installation Category CAT II
Accuracy
Voltage 0.5% of range maximum
Current 0.5% of nominal
Frequecy 0.2% of mid-frequency
Power factor 1% of uity (0.01)
Active power(W) ±1% of range maximum
Reactive power(VAr) ±1% of range maximum
Apparent power(VA) ±1% of range maximum
Active energy(Wh) Class 1 IEC 62053-21
Reactive energy(VARh) ±1% of range maximum
Total harmonic distortion 1% up to 31st harmonic
Response time to step input 1s, typical, to99% of final reading, at 50Hz.
Environmental Characteristics
Operating Temperature -25°C to 55°C
Storage Temperature -40°C to 70°C
Humidity Rating <95% RH at 50 °C (non-condensing)
Pollution Degree 2
Altitude 2000m
Vibration 10Hz to 50Hz, IEC 60068-2-6
Mechanical Characteristics
Weight 250g
IP Degree of Protection (IEC 60529) IP51 front display
Dimensions (WxHxD) 99x36x63
Mounting Position Vertical
Panel Thickness 1~5mm
Material of meter case Self-extinguishing UL 94 V-0
Mechanical environment M1
Safety
Measurement Category Per IEC61010-1 CAT III
Current Inputs Require external Current Transformer for Insulation
Over voltage Category CAT III
Dielectric Withstand As per IEC 61010-1 Double Insulated front panel display
Protective Class II
Communications
Interface standard and protocol LoRa Mesh/ LoRaWan
Network Star/ Cluster
Frequency 470Mhz(default)/433Mhz/868Mhz/915Mhz
Communication distance <3000m
