Self Storage Cabinet Lock with handle
Protecting your privacy and Important file like baby
Controlled remotely through App and web directly ( cooperate with smart gate way)Unlocking method: Fingerprint + Password+ Mechanical key + App controlledSuitable for: Apartment, File Drawer, School, Gym, Fitness, Club, Swimming Pool, Sauna Room, OfficeThis Lock accept application development and accept secondary development.We have registered this lock design.
Users are able to find the available storages nearby through smart phones or other terminals, and place order online and finish payment, then open the cabinet doors with a single touch button.After-sale Service: √ Support Application Development √ Support for Saas Development √ Support for Embedded Development √ Support for Docking to Your App √ OEM Order Accepteted
Network Server Keypad Cabinet Lock
Material Aluminium Alloy
Battery Life Time 12-15 months.
Emergency Power Supply A micro USB charging port for emergency power supply.
Standby Current <60uA
Working Current <50mA
Maximum Current <200mA
Unlock Time <1.5s
Working Temperature -20ºC ~ 60ºC
Relative humidity 10%~93%

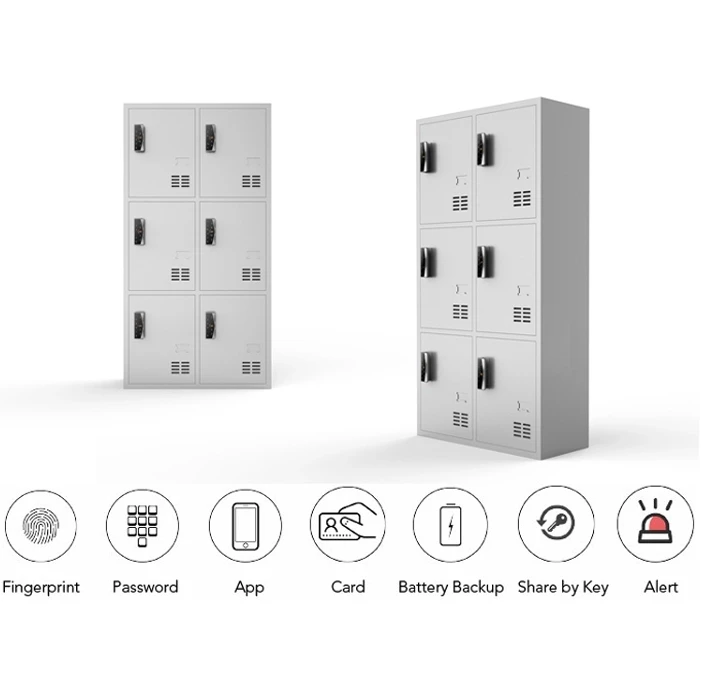

Access Methods Fingerprint/password/Card/APP

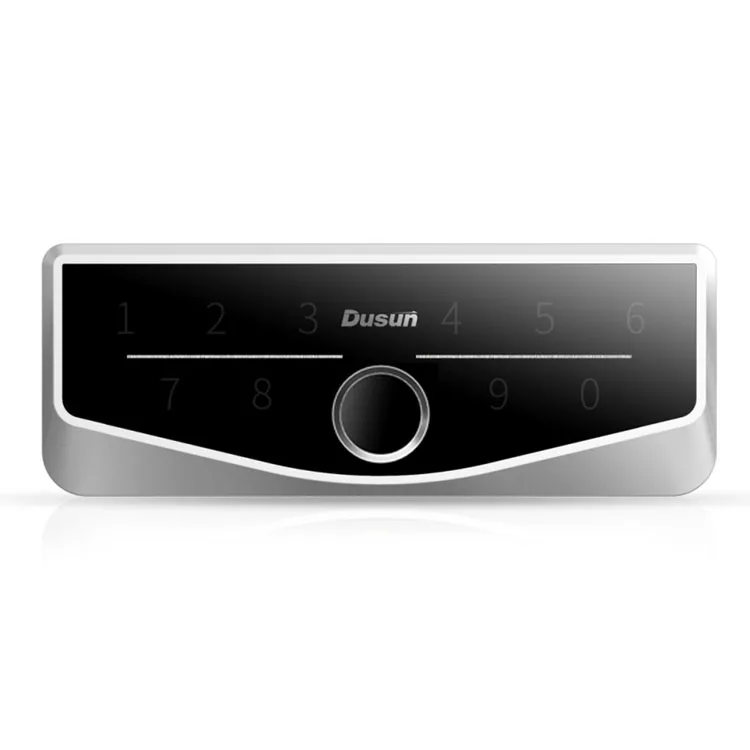

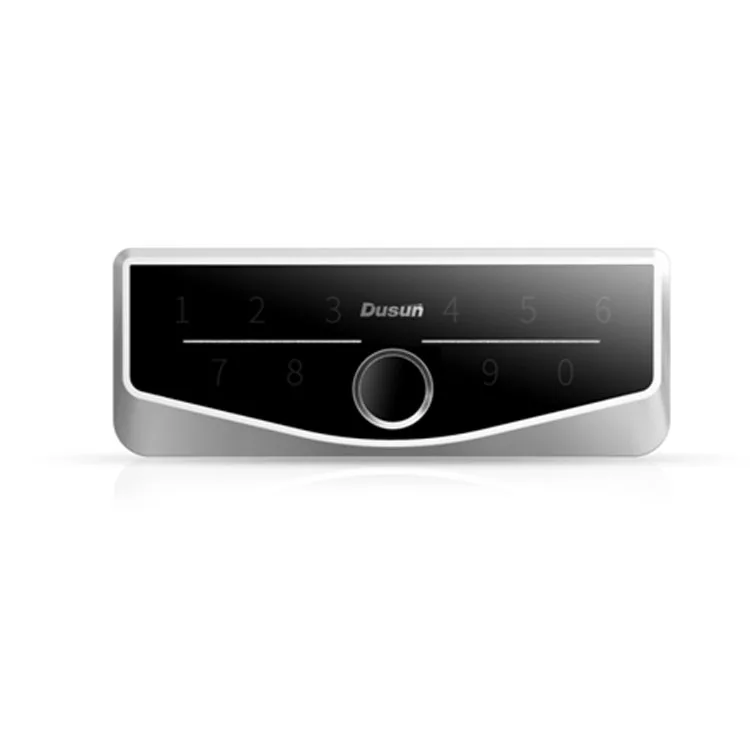

HMI 3*4 touchpad, keys are "0-9" number and "OK", Battery Volume and Lock Status.
Key Capabilties Password 50 sets.
Unlock History Stored in the cloud of platform.
Cloud-based Memory The password would not be reset when out of power.
Auto Lock It will be auto locked after 5s, in case you forgot to lock.
Physical Button Inside the cover of battery, to reset the lock to default value.
Intrusion Alarm If incorrect password enter 5 times, automatically locked for 5 minutes until press correct password.
Security for power off Automatic latch lock the door, you need to use the mechanical key to open or power
Power Volume When the power is less than 30% to open the door , sent by ZIGBEE to the cloud of information, battery indicator, or open the door buzzer sounds unusual

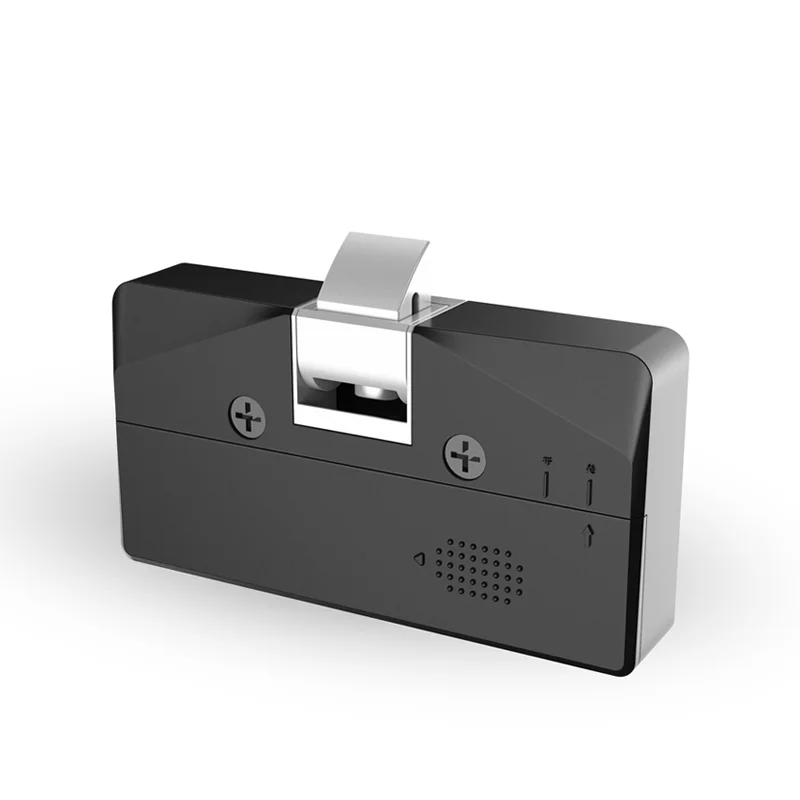

Lock Body Size Self-eject mechanical body, width 15mm*height 12mm.
Dusun Security electric cabinet lock for Storage
Unique in Design
Public Storage can be easily Accessed
by users and simplified platform management

Stylish and easy to install, users can install it by themselves

Support Application DevelopmentDusun able to provide the SDK of gateway, allow customers to develop the firmware application.
Support for Saas DevelopmentAPI of platform can be offered for convenience to develop the Saas applications for end users.
Support for Embedded DevelopmentWe are able to help customer to make embedded development to custom functions.
Support for Docking to Your AppThe communication protocols could be provided for customers to dock to your own applications.
OEM Order AcceptetedThe Logo and color could be customized when order quantity more than 2000 units, and we are able to help customers to make certifications to fit to your target markets.
Product AdvantageApplications

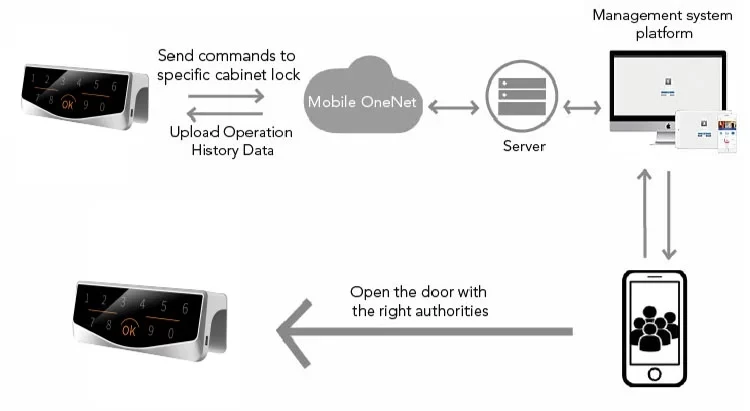

Intelligent Public Storage Management
Solution
Users are able to find the available storages nearby
through smart phones or other terminals, and place order online and finish payment,
then open the cabinet doors with a single touch button.

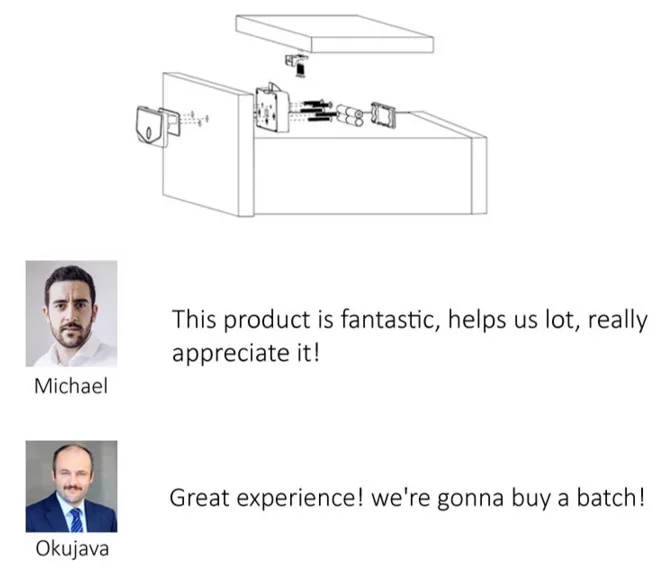

Installation Instruction
