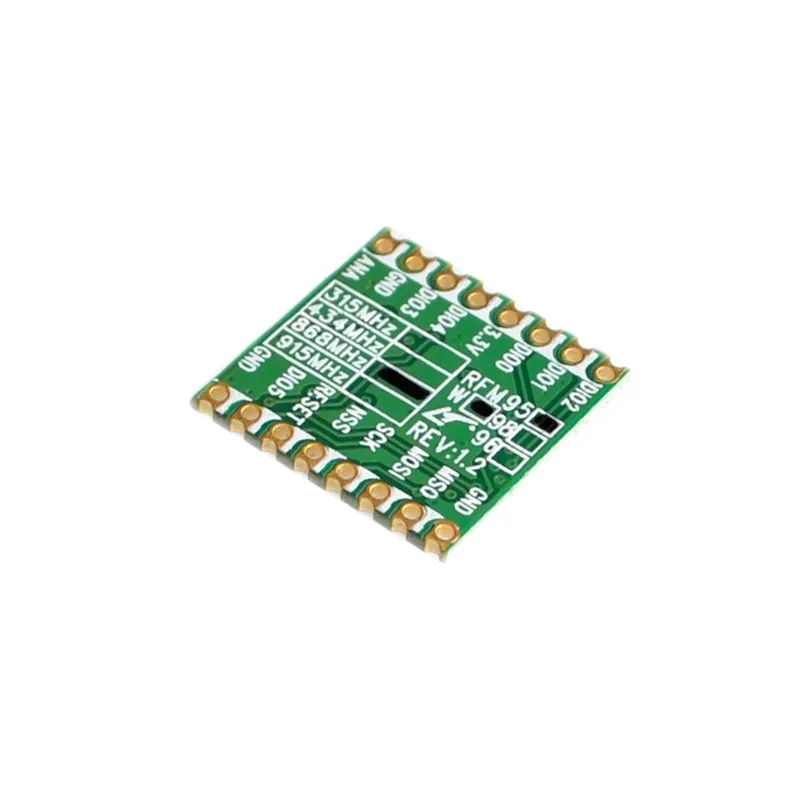

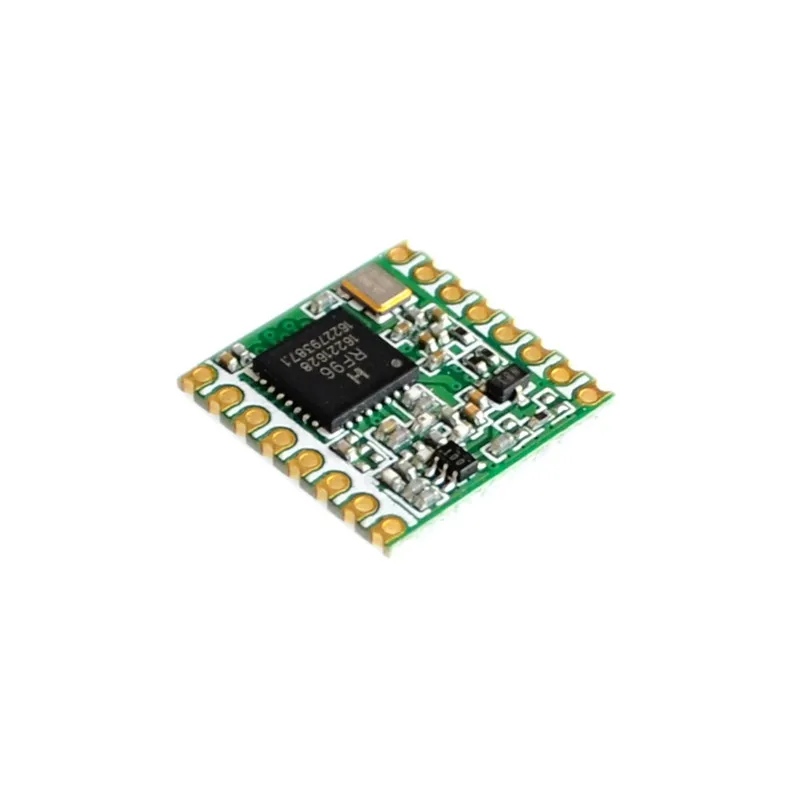

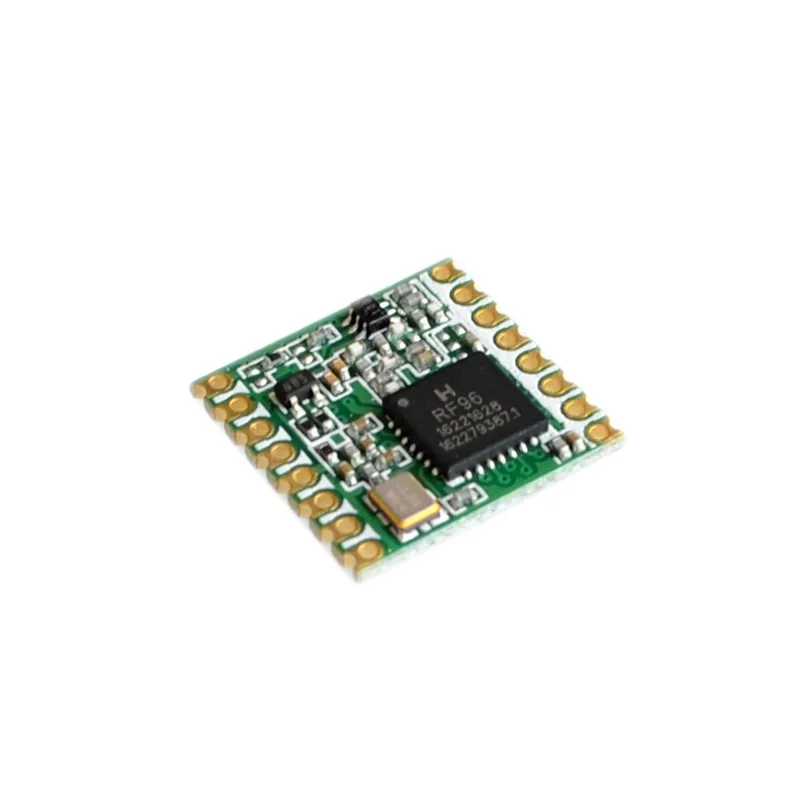

RFM95W/RFM98W 100mW 433/868/915Mhz High sensitivity sx1278/sx1276 Lora modules ultra long range RF Wireless Transceiver Module
Please specify which frequency you need when place the order.
RFM95W-868S2 : 868Mhz , ship with wired antenna , base on SX1276
RFM95W-915S2 : 915Mhz, ship with wired antenna , base on SX1276
RFM98W-433S2: 433Mhz, ship with wired antenna, base on SX1278
Introduction:
The HopeRF RFM9X transceivers feature the LoRa(TM) long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Using Hope RF"s patented LoRaTM modulation technique RFM9XW can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM9XW deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.
Specification:
Operating voltage: 1.8 - 3.7V
168 dB maximum link budget
+20 dBm - 100 mW constant RF output
+14 dBm high efficiency PA
Programmable bit rate up to 300 kbps
High sensitivity: down to -148 dBm
Bullet-proof front end: IIP3 = -12.5 dBm
Excellent blocking immunity
Low RX current of 10.3 mA, 200 nA register retention
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation
Built-in bit synchronizer for clock recovery
Preamble detection
127 dB Dynamic Range RSSI
Automatic RF Sense and CAD with ultra-fast AFC
Packet engine up to 256 bytes with CRC
Built-in temperature sensor and low battery indicator
