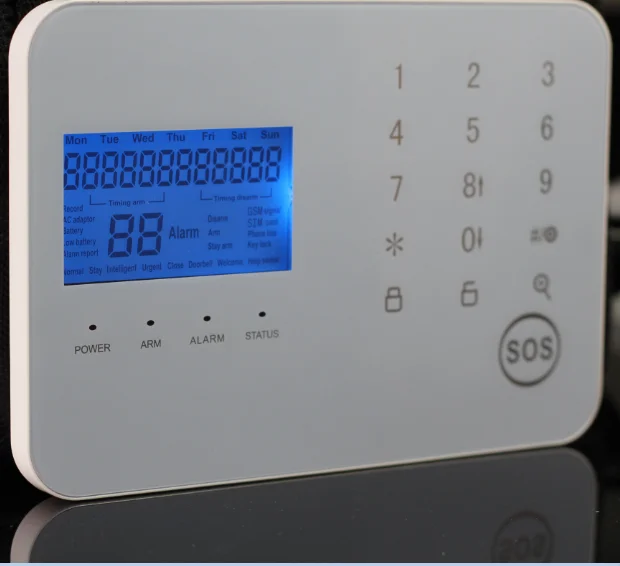

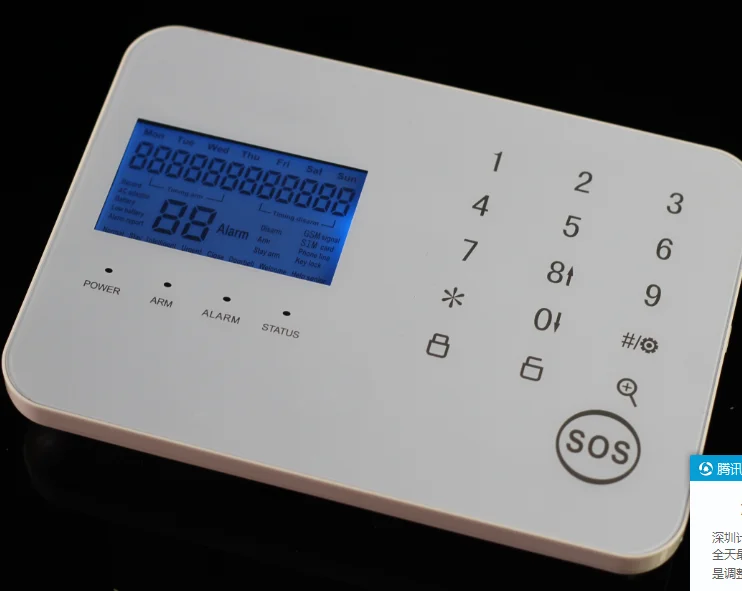

Residencial gsm safe home security for alarm theft security protection equipment
It is 850/900/1800/1900MHZ, main features:
1, with touch keypad to operate, very easy to operate
2, GSM network, no need telephone line
3, Know which zone triggers from SMS when alarm
4, wireless/wired defense zone
5, Industrial SIMCOM module, very stable
6, Can call 5 phone numbers and send the SMS when alarm
7, Can home arm, away arm, disarm on panel
8, Can check gsm alarm systems status by SMS to know if arm or disarm, when you are out
9, Built-in artificial intelligent English message
10, Can support all kinds of wireless sensors, such as PIR detectors, door (gap) sensors, gas sensors, smoke sensors, beams, panic buttons and so on
11, Built in NI-HI battery, still work when power is off
12, Suitable for the garage, store, house, villa, warehouse, shop and other places.
13, When power is off, it will send SMS to alert, when power is on, will also alert



Standard componentS:
1 the main panel
1 wireless PIR detector
1 wireless door/window detector
1 siren
2 remote controllers,
1 adaptor
1 instruction manual
Additional products:(Users can add more sensors/detectors if needed.) Wireless PIR detector smoke detector wireless door sensor
Remote controller gas/CO/LPG detector panic button siren with strobe infrared beam beam bluster
Package details:
20sets in one carton
Each carton size :56X61X36CM
Each carton weight :24 KG
Technical parameters:
*Input Voltage: DC12V/1A
*Standby Current: <55mA
*Alarming Current: <450mA
*Wireless Frequency: 433MHz, 2262/4.7MΩ
*GSM Frequency: 900/ 1800/ 1900MHz or 850/900/ 1800/ 1900MHz
*Back-up Battery: NI-HI AAA*6 DC7.2V
*Siren Volume: 110dB
Outer Alarm Siren Volume: 110 db
Working Condition: Temperature –10°C~+ 40°C
Humidity ≤ 90%
Capacity for Wireless Device: 32
Wireless door/window Detector
Power Supply: DC12V(inner 9V battery)
Static Current: ≤20 uA
Transmission Current: ≤15mA
Transmission Frequency: 315/433MHZ±0.5MHZ
Transmission Distance: No obstacle 80m
Interval Distance: 15 mm
Working Condition: Temperature –10°C~+ 40°C
Humidity ≤ 90%
Wireless P.IR Detector
Power Supply: DC9V (inner 9V battery)
Static Current: ≤100 uA
Transmission Current: ≤20mA
Transmission Frequency: 315/433MHZ±0.5MHZ
Transmission Distance: No obstacle 80m
Detective Speed: 0.3~3m/s
Detective Distance: 5~12m
Detective Range: Horizontal 110° Vertical 60°
Working Condition: Temperature –10°C~+ 40°C
Humidity ≤ 90
Remote ControllerPower Supply: DC9V (inner DC9V battery)
Static Current: 0
Transmission Current: ≤15mA
Transmission Frequency: 315/433MHZ±0.5MHZ
Transmission Distance: No obstacle 80m
Working Condition: Temperature –10°C~+ 40°C
Humidity ≤ 90
