powerful dimmable support motion sensor zibee light control led constant current driver


Powerful Dimmable Support Motion Sensor ZigBee Light Control LED Constant Current Driver Color-temp adjustable & brightness dimmableSupport Zigbee wireless control, from mobile phone, tablet and PC0-10V or 1-10V control inputMotion sensor control inputWork with WiFi-ZigBee control bridge for daylight sensor, timer, delay, scene and group control

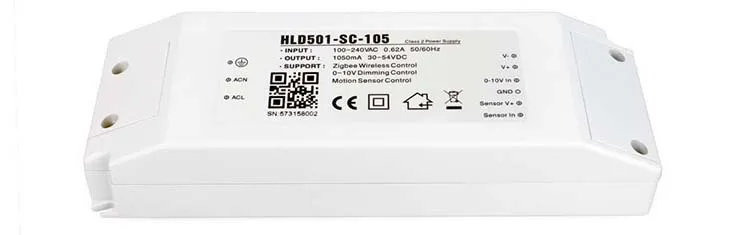

Powerful Dimmable Support Motion Sensor ZigBee Light Control LED Constant Current Driver
OUTPUT DC Voltage 30-54V DC
Constant Current Region 0-1050mA
Rated Current 1050mA
Rated Power 54W
THD 5%-15%
Voltage Tolerance 10-56V DC
Load Regulation YES
INPUT Voltage Range 100-240Vac
Frequency Range 50/60Hz
Power Factor Active PFC
Typical Value: 0.95
Efficiency (TYP) Max 89%
AC Current 0.62A
PROTECTION Over Current YES
Short Circuit YES
Over temperature YES
ENVIRONMENT Working Temperature -20 to 55
Working Humidity 10%RH to 90%RH
Storage Temperature -30 to 70
SAFETY&EMC Safety Standards CLASS 2
Withstand Voltage 264VAC
EMC YES
OTHERS Model No ALD501SC
Certification CE
IP Rating IP20
MTBF 15000h
Warranty 3 Years
Product NW 300g
Product GW 350g
Product Size 186mmx65mmx36mm
Packing Small Boxes, 30/ Carton
Carton Dimension 375mmx210mmx373mm

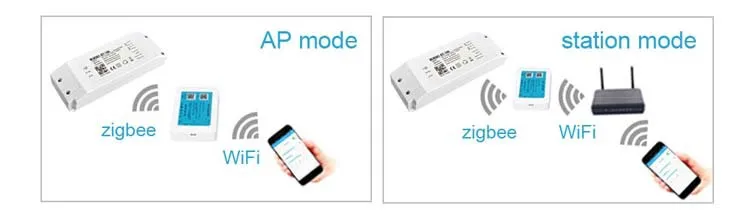

Functions of Amelech"s powerful LED driver are shown in the below diagram. 2 output channels for cold LED and warm LED, ZigBee wireless control, 0-10V dimming control, motion sensor control are integrated in the driver. Such powerful LED driver makes lighting power-saving and multi-functional, at a reasonable cost.

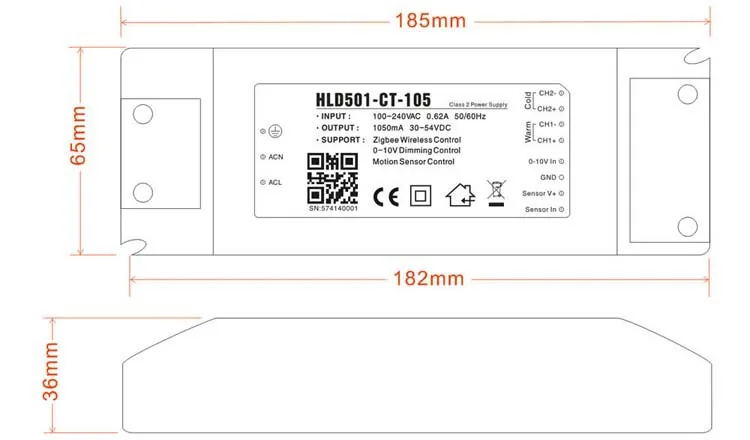

Amelech"s LED driver is designed in a compact size, 185mm (L) x 65mm (W) x 36mm (H). It fits for different LED lights in different dimensions.
