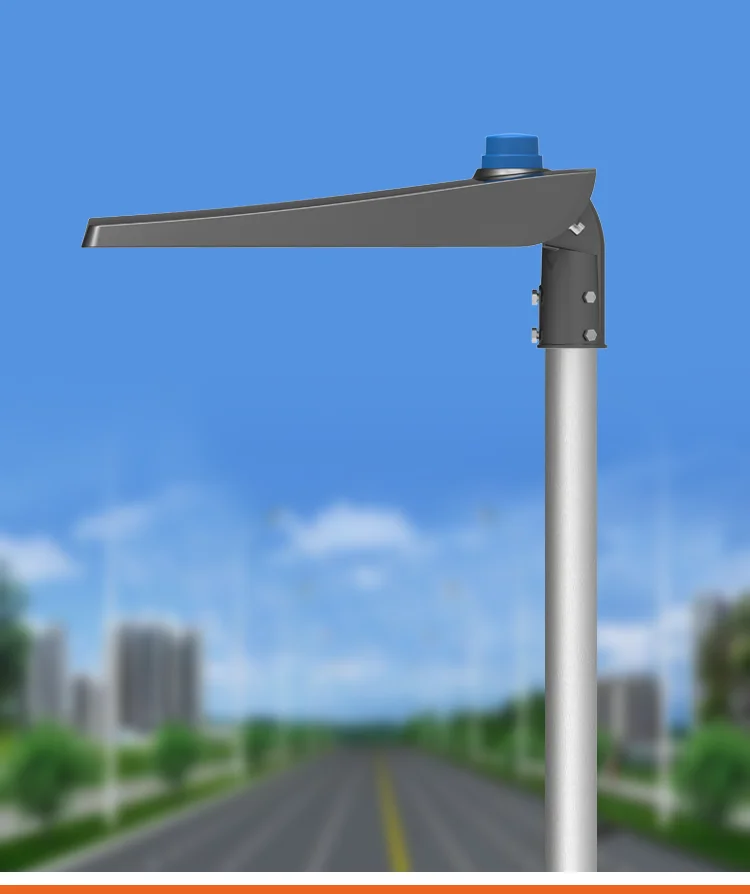

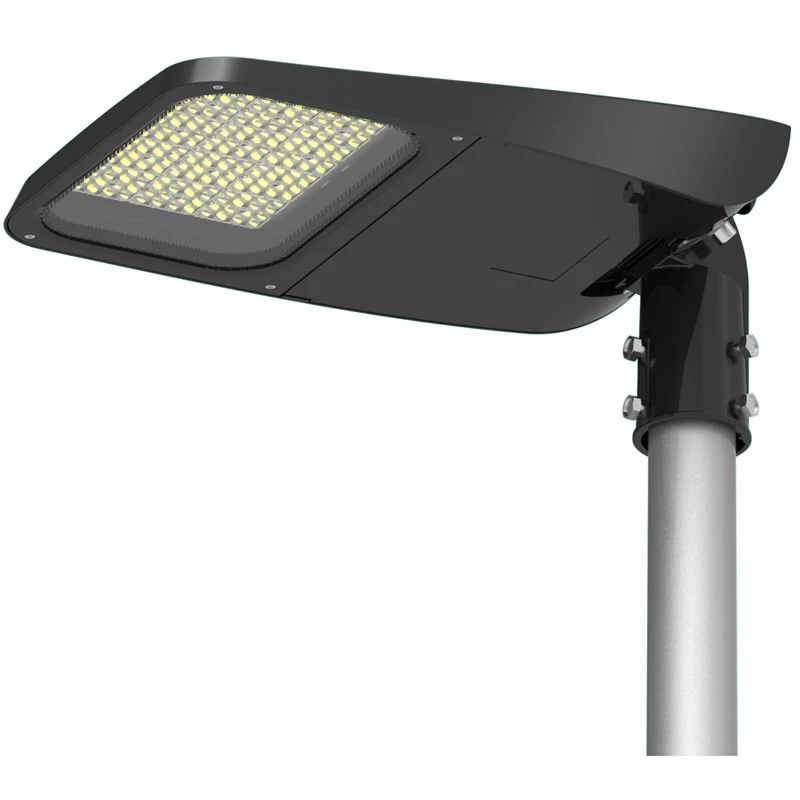

CWCE Park road government projects Europe fashion highbay smart light-operated USA energy-saving high pole lamp led street light
Products Description
Power
28/38/45/55/65W
75/90/105/120W
130/150/160/180W
Input Voltage
198-264VAC 50/60HZ
Input Current
0.13/0.27A
0.41A
0.55/0.69/0.82A
Lumen(lm)
3920/5320/6300/7700/9100 Lm ±10%
10500/12600/14700/16800Lm ±10%
18900/21000/22400/25200Lm ±10%
Efficiency
140Lm/W ±10%

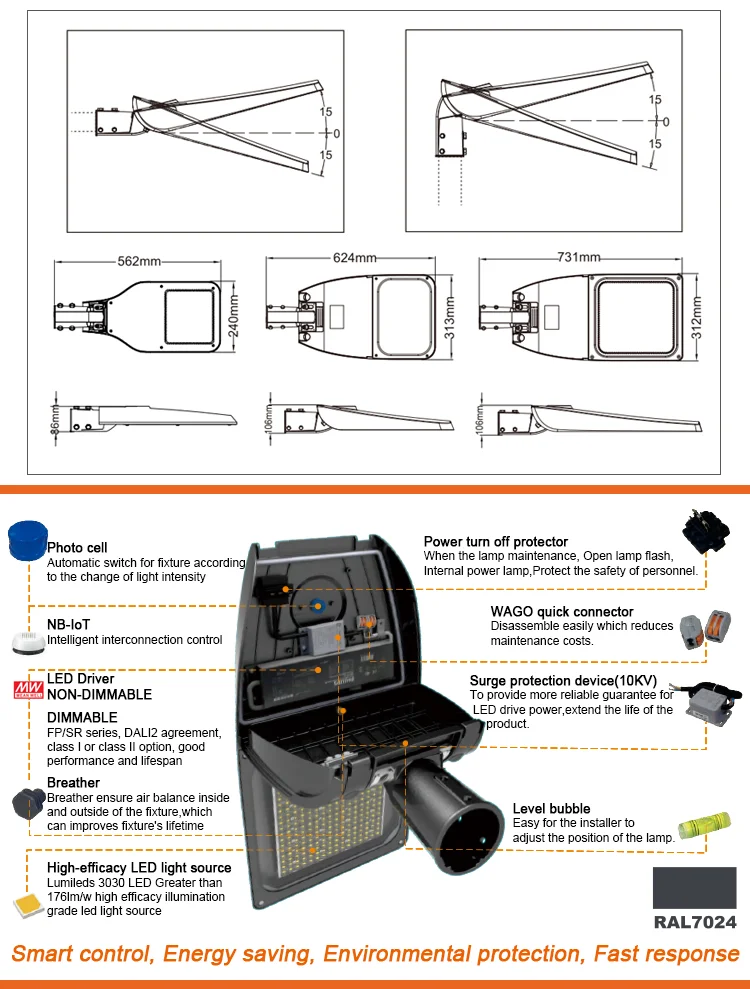

Product Size(mm)
562*240*86
624*313*106
731*312*106
Net weight(KG)
4.3
6.0
7.8
Packing size(mm)
631*318*169
700*390*190
800*390*190
Gross weight(KG)
5.5
7.2
9

SmartLED Street Light
• This product meets the requirements of CB,CE,IK08,IP66.• Self-cleaning design to prevent accumulation of dirt.• The product has a power cut-off protector, which automatically cuts off the power when opening the housing.• Equipped with large displacement breathing valve, so to balancethe pressure inside and outside of luminary.• The 10KV/20KV surge protector is optional to provide protection for the power supply.• Nb-IoT and Photocell are available to meet the needs of smart cities.



Street ligth led lamps for street lighting spare parts 105w 120w energy saving lights waterproof road engineering construction
