Spectrum Tuning and Integrated Dimming by WiFi, PC and PWM
Samsung LM301B CREE XP-E2 660nm
660W Horticulture Lighting 5 -Year Warranty
A Mimic to the Suns Circle for Seedling, Veg., Flower, Seeds, Clones
For buds, nutrient contents, flavor taste, quality and yields
2.2g each watt per harvest
1. Optical Performance
(1) Spectral Tuning - Allows digital tuning of spectrum to match any plant type at any growth stages, from Veg. to bloom, or to the Suns circle. Dr. Tessa Pocock works to improve indoor plant production and associated energy as well as plant nutrient and pharmaceutical value

(2) Full Spectrum - Samsung LM301B 3500K, 6500K, 660nm (450nm, IR, UV for option)
- The newly designed ORIGLITE Horticulture Lighting for signaling effects are white-based, and uses full spectrum to allow sufficient red light, while enabling a better working environment. It can also be a very powerful tool for ornamental plant growers who manipulate photoperiodic responses for scheduling.
- ORIGLITE"s approach goes beyond the standard of horticulture lighting by providing the highest efficacy of 2.92-3.0 µmol/J at a current of 65 mA, a dramatically extended non-yellowing lifetime and better PPFD uniformity.
- ORIGLITE Horticulture LED has a full line-up of these - with high efficient blue, deep red (or far-red) packages. You can apply ORIGLITE Horticulture Lighting virtually anywhere such as in greenhouse and indoor farming, where dynamic growth lighting is needed.

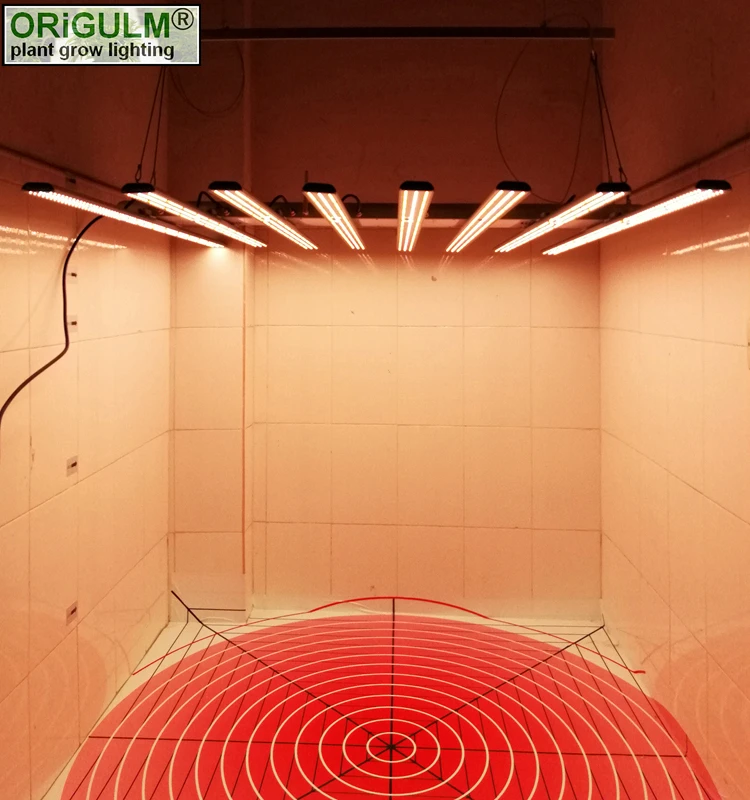

(3) PPF & PPFD & PAR Vales

(4) LitePro DLX layout

2. Thermal Management

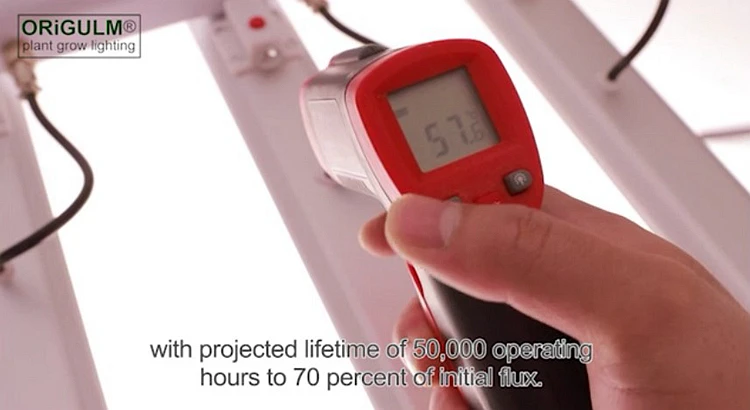

(1) Surface Temperature

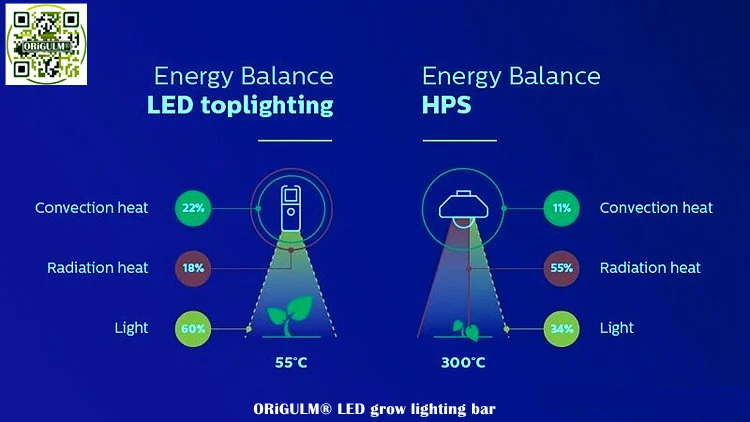

(2) Energy Balance

3. Electrical Performance
(1) Meanwell power, isolated, the dual mode constant voltage and constant current output, protections of over load, over voltage and current, over temperature, short-circuit and surge.
(2) AC/DC power, operate from 90-277VAC input, 48VDC output, built-in active PFC function.
(3) High efficiency up to 94%.
(4) Driver failure rate, 0.05% per 5000 hours. Safety standards, UL60950-1, BSMI CNS14336-1 approved.
4. Spectrum Tuning & Integral Dimming

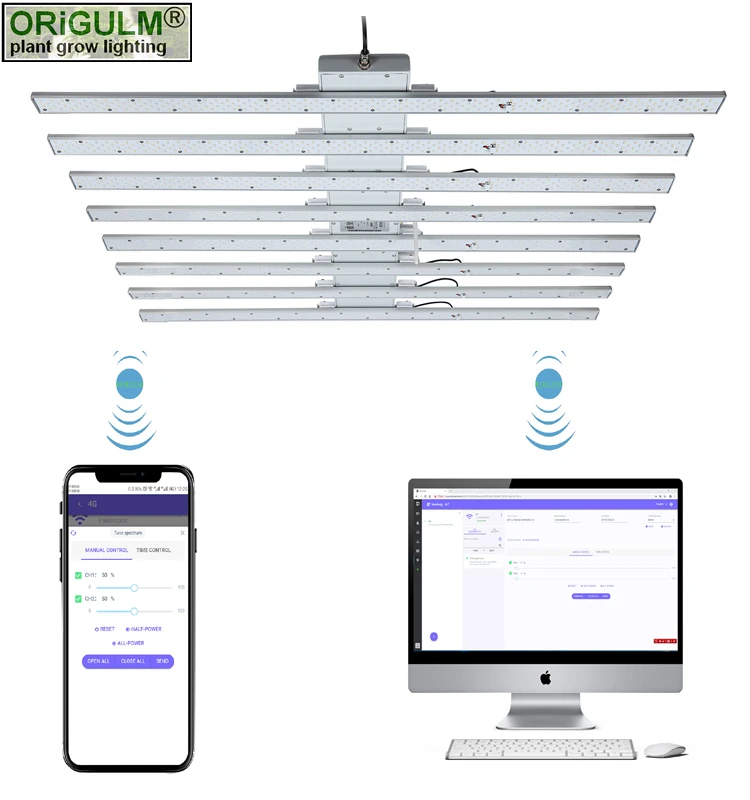

(1) How to Tune Spectrum - For convenience of growers use, each light designed for spectrum tuning by 3 modes, WiFi router(Mobile phone operation), wired Ethernet(PC operation) and PWM(Manual operation. A knob in the light. You can make tunning of 3 colours, 3500K, 6000K, 660nm for different stages of growth).

(2) Integrated Dimming - PWM dimming, ranges from 0-100% in a clockwise, or in anti-clockwise. No flicker, no dazzle.
(3) Technology of Internet of Things - LoRa(Long Range)technology used for Wi-Fi router and wired Ethernet. It provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
(4) ORiGLITEs WiFi Router
Please check origulm wifi router on alibaba
- Used for spectrum tuning LED plant light by digital signal. WiFi communication or wired Ethnert connected with the router. The instructions sent to the router, under which the router makes control of the lights.
- The router provides WiFi hotspots to the site to have an access, and control end nodes by mobile phone or wired Ethernet, which is called LAN(Local Area Network).
- Only ONE WiFi router makes spectral tuning of 1-65535PCS lights, to the maximum, around 2-5km in area.

5. Quick and Easy Installation - Each lighting bar is updated with a push-lock.

6. Data
Item No.PPF(umol/s)Efficiency
(umol/J)
Output Watts(W)Full SpectraSpectral Tuning Integrated Dimming Footprint
Coverage
(Feet)
Power Supply Luminance
Uniformiy
OPL-DD8-V21(8 Bars 660W)1531.272.31660Samsung LM301B, CREE
660nm
(730nm)
3-Channel Tuning Constant Current Dimming
(CC)
@12 flower 5×5;
@6 Veg. 6×6
Meanwell,
UL listed
>0.836
7. Cases
Please pay a visit to https://www.facebook.com/origulm for Ram Seeds breeding and flowering, Kevins clones, Eriks plants, Douglas comments, etc..

(12) Solutions & Applications
- PPF 1531.27μmol/s + Spectrum tuning and dimming
- PPF 1531.27μmol/s + PWM spectrum tuning and dimming
- PPF 1531.27μmol/s + Non-spectrum tuning and non-dimming

Packaging & Shipping
(1) Each bar wrapped with a PE bag, and inserted in Polyethylene foam;
(2) 2pieces 5-layer sturdy corrugated CTNs for long-distance shipment and tough handling;
(3) For 660W, 8PCS bars, 1PC assembly bracket, 2PCS hanging steel cords, 1PC 1.5M D1 m2 electrical wire;
(3) By Express DHL, UPS or sea shipping
