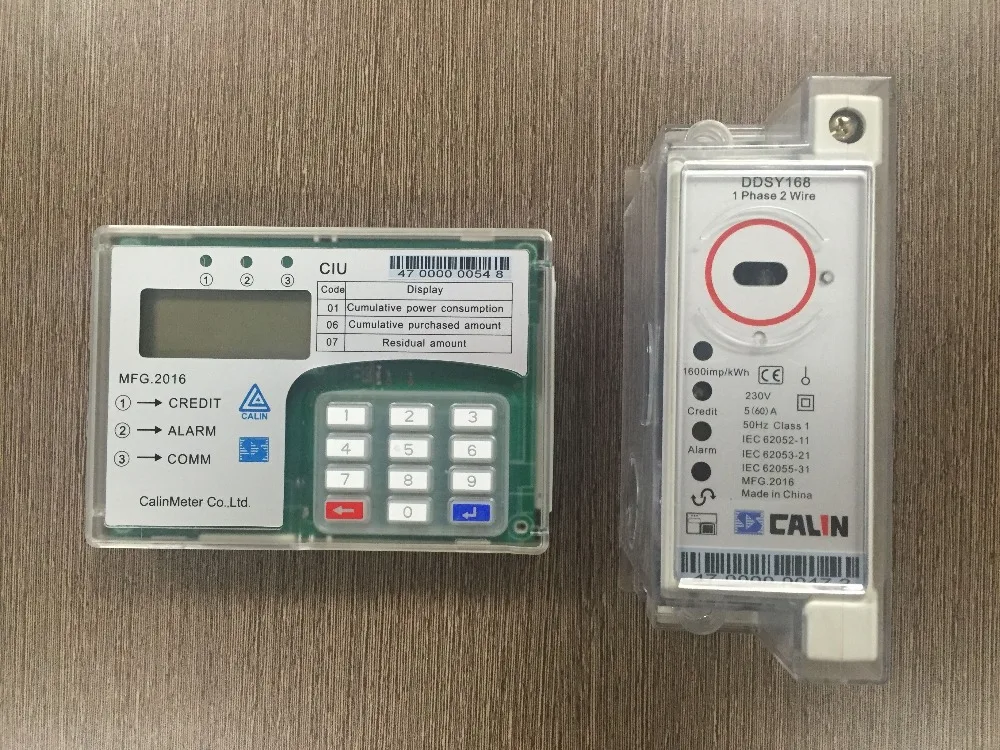

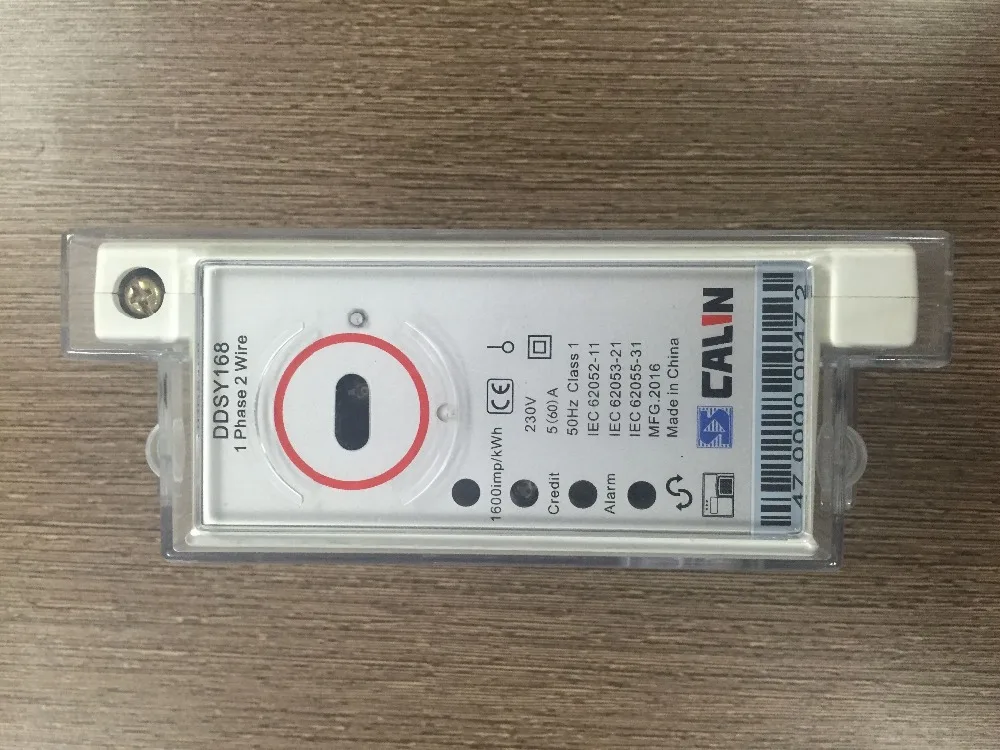

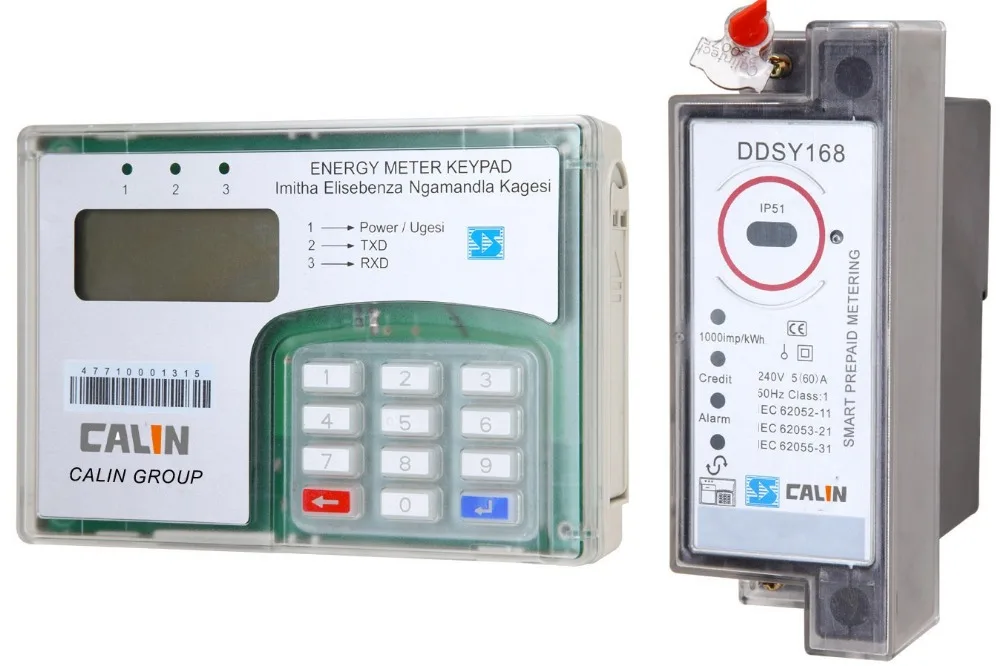

The DDSY168 -S consists of two parts. A customer interface unit (CIU), and a metering and control unit (MCU). A CIU is a keypad based display, to be installed within consumers homes wherever there is a plug point. A MCU is the main meter, installed away from consumers home in a kiosk, meter box or a pole-mounted enclosure .MCU communicates with CIU via wireless communication such as Power Line Carrier (PLC), Radio Frequency(RF), and LoRa.
Key Benefits
1) Quick and easy installation with no need of accessories
2) Reduce operational and inventory cost
3) Two way communication with AMR AMI server(on request)
4) Flexible payment control through various element settings
5) Meter provides information by inputting short codes
Technical Parameters
Nominal voltage Un
220/230/240 V
Limited voltage
70%~120%Un
Nominal frequency fn
50-60Hz+5%
Basic current(Ib)
5-10A
Maximum current(Imax)
60-100A
Starting current(Ist)
20mA
Active energy constant
1000imp/kWh
Accuracy as Active energy to IEC62053‐21
Class1.0
Power consumption in Voltage circuit
<2W <8VA
Power consumption in current circuit
<1VA
Operating temperature
25 to+70
Storage temperature
40 to+85




Main Features
a) Critical metrological value measurement: V, A, PF, P, etc
b) Trip on no credit or preset balance level
c) Disconnect on tamper detected
d) Meter allows setting for power limit, emergency credit, debt collection, surchages, etc
e) Uni-directional measurement for reverse energy( SRE )
f) Anti-fraud features
