SpecificationOne Line Body Design 5 Beams Angle High Power 800w Led Flood Light

* One Line Light design, special lens and PCB are used;

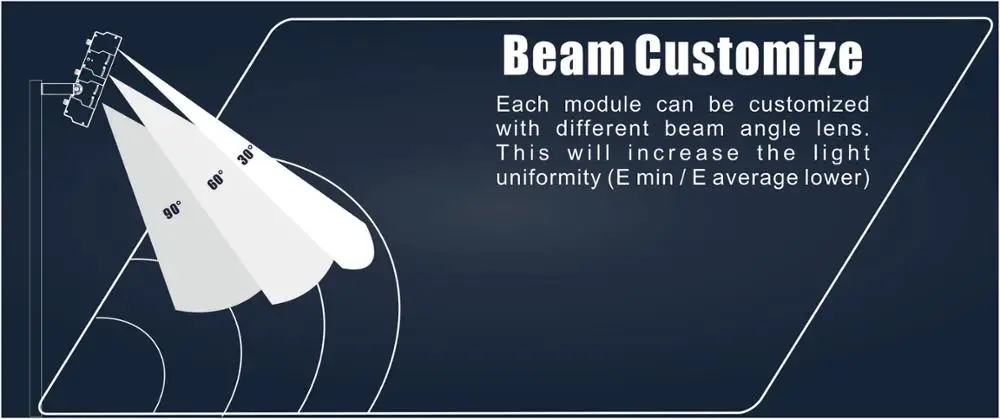

* 5 Beam angles for option, and angle adjustable;
* Modular design, which can be fixed to each other very easily;
* Multi-fuctional, buy one you will have Linear Highbay light, Flood light, Tunnel light;
* High thermal conductivity
* Low lumen decay, L70=50,000 hours
* Energy saving up to 90%
* Electrical: 85-305V, 50-60 Hz

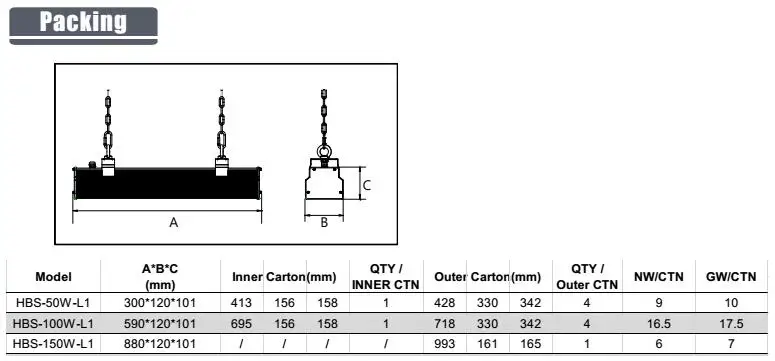

Model Module Watt Lumen IP Rate IK Rate Driver A*B*C (mm)
HBS-100W-L2 50W Module x2 100W 13000 lm IP65 IK10 Sosen 300*240*101
HBS-150W-L3
50W Module x3
150W 19500 lm IP65
IK10
Meanwell 300*360*101
HBS-200W-L2 100W Module x2
200W 26000 lm IP65
IK10
Meanwell
590*240*101
HBS-300W-L3
100W Module x3
300W 39000 lm IP65
IK10
Meanwell
590*360*101
HBS-100W-L4
100W Module x4
400W 52000 lm IP65
IK10
Meanwell
590*480*101
HBS-100W-L5 100W Module x5 500W 65000 lm IP65 IK10 Meanwell 590*600*101
HBS-200W-L3 200W Module x3 600W 72000 lm IP65 IK10 Meanwell 1170*360*101
HBS-200W-L4 200W Module x4 800W 96000 lm IP65 IK10 Meanwell 1170*480*101
HBS-200W-L5 200W Module x5 1000W 120000 lm IP65 IK10 Meanwell 1170*600*101
Detailed Images
STOCKPacking & Delivery1. Warehouse in European,fast delivery and lower cost;THE SECOND-DAY DELIVERY !!
2. By Express: Such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-7 working days.
3. Air Freight: When you order more than 100kgs which will be more economical than express.
4. Sea freight: Shipping by SEA is available after customer provide destination port.
5. Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.
Our Service1. Respond within 24 hours;
2. N-to-1 service mode: salesman,assistant,logistic team,technical support engineer;
3. Warranty System: Warranty Agreement can be signed;
4. Test report: the reports can be provided for every order;
5. All the led explosion proof lights come with 5 years warranty.
Our CompanyEstablished in 2010, Unicorn is a fast-growing company specialized in supplying energy saving products. With high quality, attractive price, in time delivery and excellent services, we achieve great success in a short time.
We are equipped with advanced manufacture equipment and quality test instruments and strictly carry out ISO9001:2000 quality management system. At the same time, our products are up to grade with both domestic and international standards, such as TUV, SAA, CE, C-TICK, RoHS, Certificate and LM79, LM80, TM21 report.
Our aim is to "Bring values to customer, grow up together with suppliers, cultivate employees, and share social responsibilities"
CertificationsTUV
SAA
CE
FAQQ1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 days for order quantity more than 500pcs.
The actual delivery time depends on order quantity and production plan.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the samples and places deposit for formal order;
Forthly, we arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%;
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
