Omni directional external rubber WiFi router antenna SMA 2.4ghz wireless modem aerial
2.4GHz omni external rubber WiFi Antenna for wireless router
Part Number DB-A0202-2.4G
Frequency range 2400-2500MHz
Gain 3dBi
VSWR <=2.0
Polarization Linear
Input impedance 50Ω
Max input Power 10w (Max)

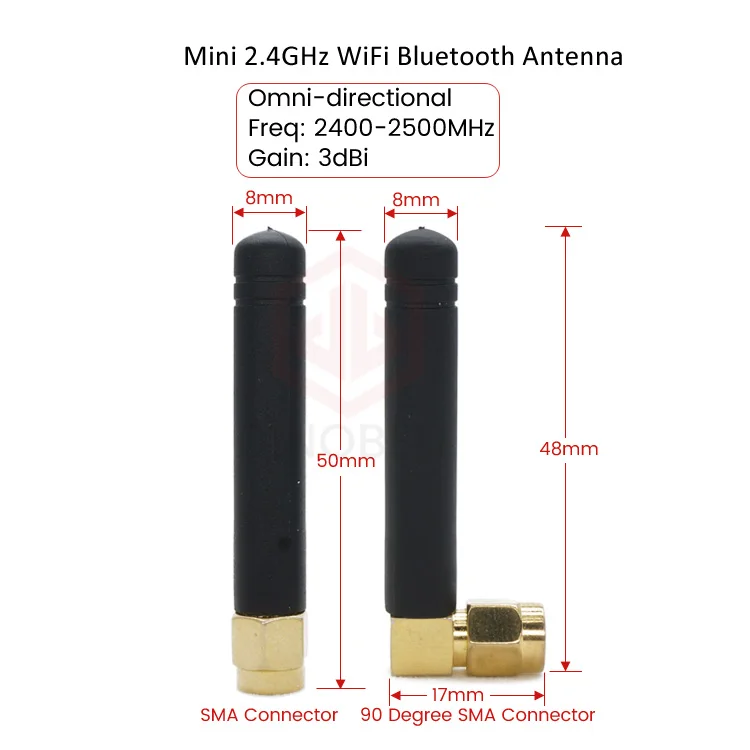

Antenna height 50mm/48mm for 90 degree connector

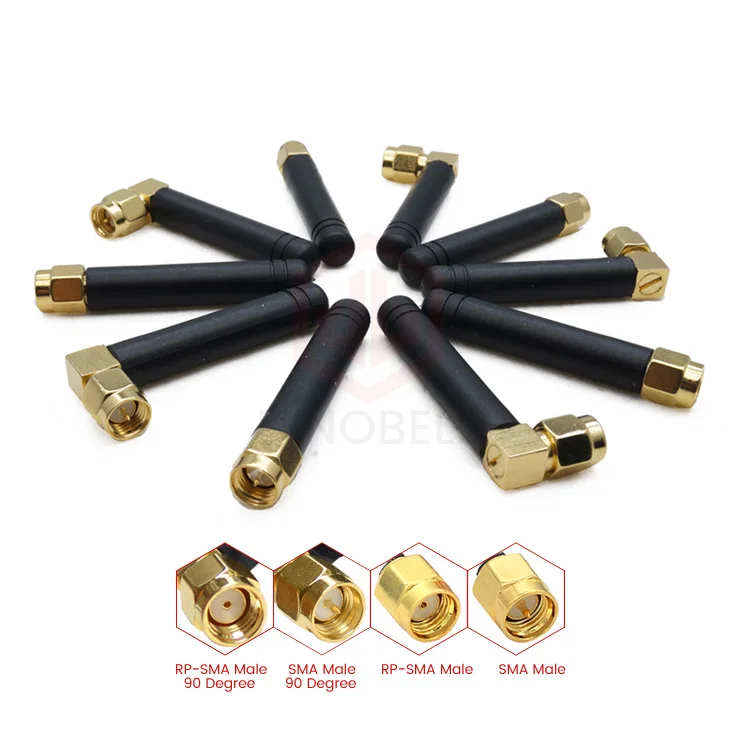

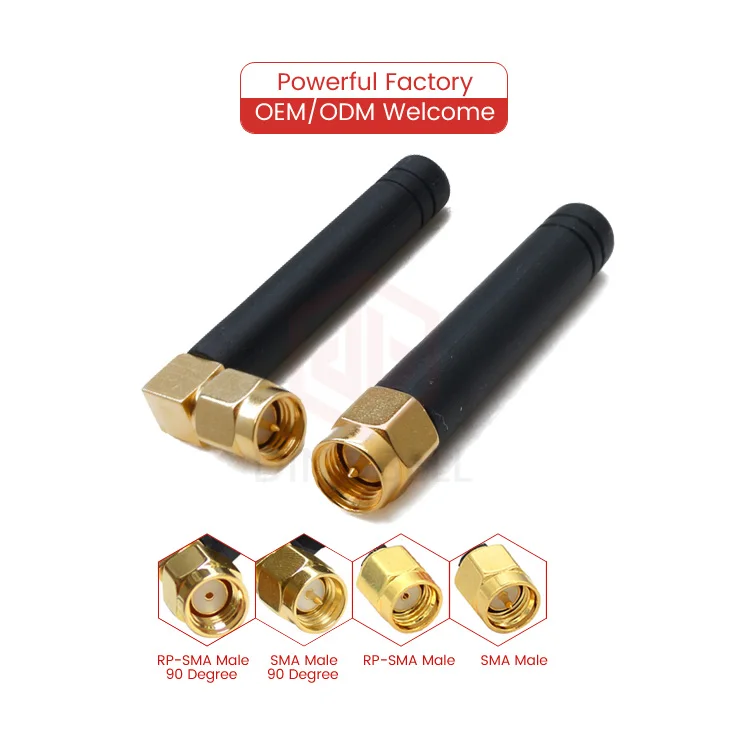

Connector SMA male/RP-SMA male/ 90 degree SMA male/90 degree RP-SMA male/
Color Black
Operation Temperature – 40 °C ~ + 80 °C
Storage Temperature – 40 °C ~ + 80 °C
Notice: If there is no specific description from clients when place order, we will delivery this 2.4GHz omni external rubber WiFi Antenna with SMA male direct connector as default.



Cable type,cable length,connector type can be customized as customers requirement.
Packing:100pcs 2.4GHz omni external rubber WiFi antenna in 1pcs transparent plastic bag,2000pcs in one carton,your OEM packing acceptable.
For magnetic antenna, each antenna will be configirated a black protective rubber sleeve,which can protect your equipment well.
For internal PCB antenna, each antenna will be attached with 3M or Sony adhesive on back.
For rubber duck antenna, SMA male/ RP-SMA male as default, and other connectors can be connected via a pigtail cable.
