OLG02 dual channels LoRa gateway good quality and good price outdoor open source LoRa IoT Gateway

IoT / LoRa

PRODUCT SHOW
OLG02 dual channels LoRa gateway good quality and good price outdoor open source LoRa IoT Gateway - ANKUX.COM

PRODUCT INFORMATION
OLG02 dual channels LoRa gateway good quality and good price outdoor open source LoRa IoT Gateway - ANKUX.COM

Brand:
Canruo
Model:
OLG02
Source category:
Outdoor gateway
Time to market:
Stock available
Battery capacity:
Power Input: 12V DC
Processor:
400MHz, 24K MIPS
Flash:
16MB
RAM:
64MB
PRODUCT DETAILS

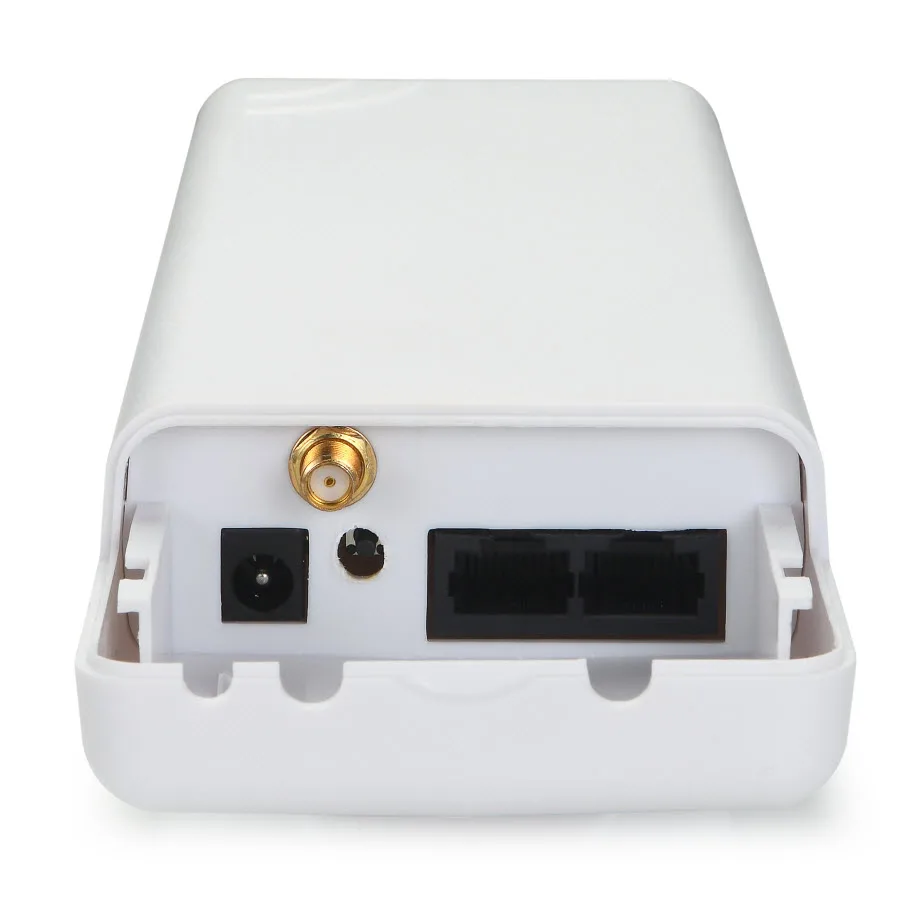

OLG02 is an open source dual channels LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. TheLoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.OLG02 has Rich Internet Connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.OLG02 can support Limited LoRaWAN protocol in single frequency and customized LoRa transmit protocol. The design of OLG02 is use the Linux to directly control two sx1276/sx1278 LoRa modules which lets the LoRa can works in full duplex LoRa mode and increase the communication efficiency.OLG02 can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.Except LoRaWAN mode, OLG02 can support mutiply working mode such as: LoRa repeater mode, MQTT mode, TCP/IP Client mode, TCP/IP Server mode to fit different requirement for IoT connection. Click this link for more info about the modes.OLG02 base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. OLG02 is only of its 1/4 or less cost. This make the OLG02 very suitable to set up small scale LoRa network or use it to extend the coverage of current LoRaWAN network.
Specifications:Linux Side:Processor: 400MHz, 24K MIPSFlash: 16MB ; RAM: 64MB Cellular 4G LTE (optional):Quectel EC25 LTE module (Clink the link to find the right model for your region)Micro SIM SlotInternal 4G Antenna + External 4G Sticker Antenna.Up to 100Mbps downlink and 50Mbps uplink data ratesWorldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverageMIMO technology meets demands for data rate and link reliability in modem wireless communication systems Interfaces:10M/100M RJ45 Ports x 2WiFi : 802.11 b/g/nLoRa WirelessPower Input: 12V DCUSB 2.0 host connector x 12 x LoRa InterfacesFeatures:Open Source OpenWrt systemLow power consumptionFirmware upgrade via WebSoftware upgradable via networkFlexible protocol to connect to IoT serversAuto-ProvisioningBuilt-in web serverManaged by Web GUI, SSH via LAN or WiFiInternet connection via LAN, WiFi, Or 3G/4G via optional LTE moduleFailsafe design provides robustly system2 x SX1276/SX1278 LoRa modulesFull–duplex LoRa transceiverTwo receive channels, and one transmit channelLimited support in LoRaWAN/ Support Private LoRa protocolSupport upto 300 nodesLoRa band available at 433/868/915/920 MhzMax range in LoRa: 5~10 km. Density Area:>500m Applications:Wireless Alarm and Security SystemsHome and Building AutomationAutomated Meter ReadingIndustrial Monitoring and ControlLong range Irrigation SystemsGPS tracker,etcLoRaWAN Reapeter
APPLICATION AREA
OLG02 dual channels LoRa gateway good quality and good price outdoor open source LoRa IoT Gateway - ANKUX.COM

GPS location tracking
OLG02 dual channels LoRa gateway good quality and good price outdoor open source LoRa IoT Gateway - ANKUX.COM

Smart City
OLG02 dual channels LoRa gateway good quality and good price outdoor open source LoRa IoT Gateway - ANKUX.COM

Smart Farm
