ODM asset tracking gateway USA UK EU AU Brazil Italy lora/ esp32 wifi bluetooth gateway plug smart home
Support multiple server platforms such as EMQTT, AWS, ALI, and also provide configuration protocol for customers to access their own server platform!
Schematic diagrams are available for customers to develop firmware!

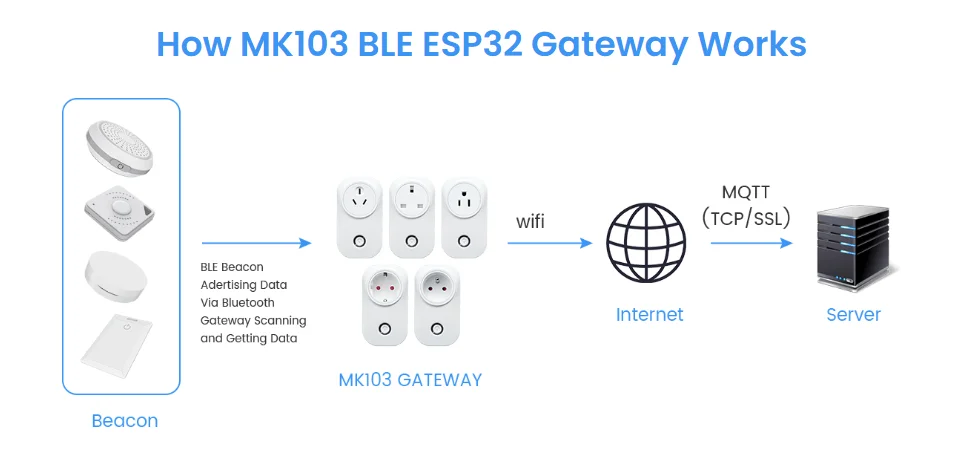

1.IntroductionMK103 is a small bluetooth gateway integrated bluetooth and WIFI wireless communication technology.With the shape of ordinary plug,you can use it whenever it connects to power.MK103 can scan BLE devices nearby to gather some location information via bluetooth,and then update these messages to the cloud servers by WIFI,so as to realize location tracker in room and environment monitoring.

2.FeaturesBuilt in ESP32 module, support BLE& WiFi communicationMax scanning distance 130m(Open area)Built in MOKO standard firmwareProvides power metering SDK for customers to develop firmwareSupport API for APP developingFirmware update Over The Air (OTA)Schematic diagrams are available for customers to develop firmwareCE/ETL/FCC/RoHS certification3.DescriptionMK103 is a brand-new type esp32 gateway (or Bluetooth probe) with esp32 chip, incorporating Wi-Fi and Bluetooth technology. It appears like a smart plug outlet with US/EU/UK/ AU/FR kind. With the regular plug outlet size and also light-weight, it is much easier. MK103 esp32 gateway criteria execute is well. The performance is steady as well as trusted in usage and also client testing. MK103 supports firmware upgrades by OTA. MK103 esp32 gateway has obtained CE/ETL/FCC/RoHS certificates.
MK103 can examine Bluetooth sign in addition to sensible sensing units nearby, as well as likewise gather area or temperature info, afterwards messages to the cloud servers by Wi-fi. the maximum scanning series of Bluetooth depends upon 130m. MK103 esp32 gateway supports EMQTT, AWS, Ali, etc.
MK103 esp32 gateway can be taken advantage of in possession surveillance, people monitoring, environment monitoring, Interior positioning & location monitoring remedies. We also offer schematic representations for Your firmware developing, and Android & iOS SDK for your application development.
MK103 esp32 gateway is MK102 collection item, it has the same size and likewise precise very same enclosure with our MK102 smart plug.
4. Basic parameterNO.TypeDescriptionRemark
1 Wireless technology BLE&WIFI
2 Input voltage 90V-240VAC
3 Output voltage 90V-240VAC
4 Max load current 16A
5 Max load 3520W
6 Operation temperature& humidity 0ºC~40 ºC/10%~90%
7 Plug type US/UK/EU/AU/FR
8 Dimensions 110x62.3x34.9mm
5. Technology parameter5.1 WiFiNO.TypeDescriptionRemark
1 WIFI protocol 802.11b/g/n
2 Frequence band 2.4GHz-2.5Ghz(2400MHz-2483.5MHz)
3 Coverage <100m Open and no shielding space
4 Transmission power 11n MCS7 13dB,11b 18.5dB
5.2 BluetoothNO.TypeDescriptionRemark
1 Bluetooth standard Bluetooth V4.2
2 Max scanning distance 130m Open and no shielding space
3 Max scanning devices quantity 300/min
3 Bluetooth scanning rate 150 times/s Quantity of broadcast frames scanned per second
4 Receiving sensitivity -97dB
5.3 Hardware parameterNO.TypeDescriptionRemark
1 ESP32 BLE&WiFi
2 RGB Different colors used to distinguish the device status
3 Button Reset&control bluetooth broadcast on/off
5.4 Software parameterNO.TypeDescriptionRemark
1 Communication protocol MQTT V3.1.1
2 Encryption protocol TLS V1.2
3 Encryption mode OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK
4 Firmware upgrade mode OTA
5 Software development Standard firmware supports MQTT servers, also provide schematic diagrams for customers to develop firmware connecting to their own server
6 User configuration IOS&Android with MOKO Scanner

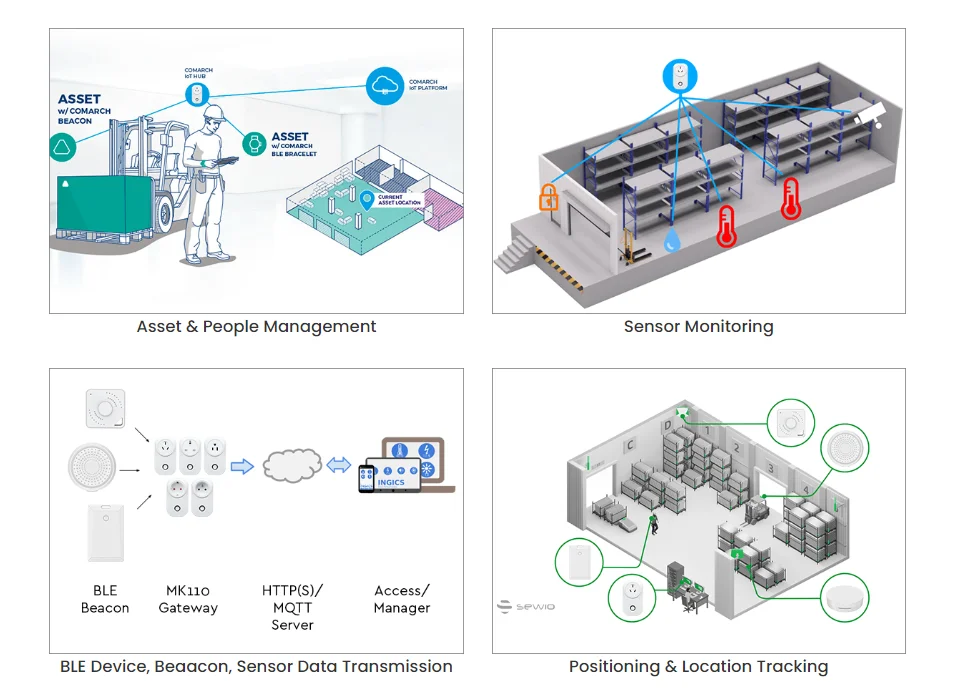

6. Applications
Whats MOKO advantage?
*Can make custom upgrades existing features(function development or customized firmware)
*Can support multiple wireless communication ways,including Wi-Fi,Bluetooth,Lora etc.
*Can provide related SDK and configuration app(IOS&Android)
*Can support connect to multiple cloud platform(Amazon/MS Azure/Google etc)
*Can customize enclosure
*Can design packaging box,label, etc
*Can communicate with certification authority directly if you have any needs
MOKO could also provide one-step solution for IOT plug.
