new part in stock Good quality SX1278 / SX1276 wireless module / 433MHZ wireless serial /LORA spread 3000 m /UART interface

IoT / LoRa

1.LOra spreading / high sensitivity / 5 km wireless transceiver modules / SX1278 / SX1276 module
2.Standard package
What is the specification of our parts?
LOra spreading / high sensitivity / 5 km wireless transceiver modules / SX1278 / SX1276 module In stock
Description : new and original
Lead Free Status / RoHS Status : Lead free / RoHS Compliant
Product Features
Half-duplex communication
Super Immunity ( channel rejection ratio : 56db)
High receiver sensitivity -139dbm.
ISMMulti- band frequency need not apply for free use .
Optional multi-frequency , multi- transfer rate. Can be used in FDMA and FM technologies.
Intelligent reset , low voltage monitoring, timing wake , low-power mode , sleep mode
Low power consumption accept current : 10-12mA
256Bit FIFO TX / RX
RSSIChannel detection
Transfer Mode : FIFO / Direct mode ( recommended FIFO packet mode )
Configuration : AFC / Air wake-up / low power / Carrier Sense / FEC error correction / AEC encryption
Ultra- long-distance transmissionOpen up the farthest5KM.
Module size:22.8 * 22.7 * 4.2mm
II: Applications
1 ) Remote control and remote data acquisition system
2 ) Wireless meter reading ( water, electricity, gas )
3 ) Wireless ordering machines , oil, mining , construction sites , factories and other original 485/232 interface system
4 ) Industrial data acquisition , transmission , intelligent control systems
5 ) Wireless alarm system
6 ) Smart Furniture System
7 ) Baby monitor system / hospital paging system
8 ) Small wireless data transmission system
Order
Definition
Description
Remarks
1
ANT
Antenna Interface
2
GND
Signal ground
3
GND
Signal ground
4
DIO1
DigitalI / O, Can be customized
5
DIO2
DigitalI / O, Can be customized
6
DIO3
DigitalI / O, Can be customized
7
DIO4
DigitalI / O, Can be customized
8
DIO5
DigitalI / O, Can be customized
9
GND
Signal ground
10
VCC
Power supply
3.3V (1.8~3.6V)
11
DIO0
DigitalI / O, Can be customized
Reference to do interrupt the program
12
REST
Reset
13
SCK
SPIClock Input
14
MISO
SPIData Output
15
MOSI
SPIData Input
16
NSS
SPIChip Select
Five : Parameter Performance
Project
Description
Min
Typical values
Maximum
Unit
Operating Voltage
1.8
3,3
3.6
V
Operating Temperature
-20
25
70
Operating Frequency
410
433
525
MHZ
Transmitting power
19
20
20.5
dBm
Receiver sensitivity
FSK 1.2K
Deviation5K
-121
dBm
Lora 146bps
BW = 62.5KHZ
SF = 12
-139
dBm

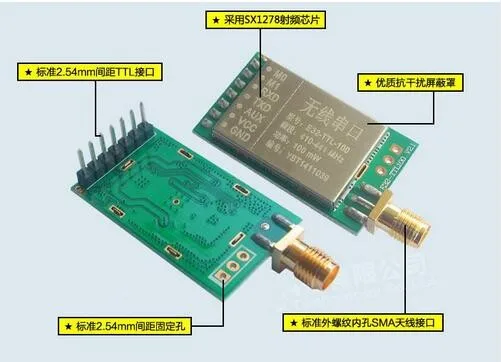

real pictures：
