NB IoT wireless temperature indicator for heating system
Model: TD-T06 (NBIOT wireless communication)
Please confirm to us the Data Route in your country
Data Route 1: end nodes - IoT platform (of Mobile Operator) - User platform for example in China
Data Route 2: end nodes - User platform for example in SGP
Brief introduction:
Gauge body wireless temperature sensor is designed to monitor the temperature in pipeline system
then report data to Cloud server at set interval,
so that user could know real-time Wherever they stay.
Once the transmitter detect a critical temperature, they will report data to server AT ONCE, so that user could get a real-time alarm.

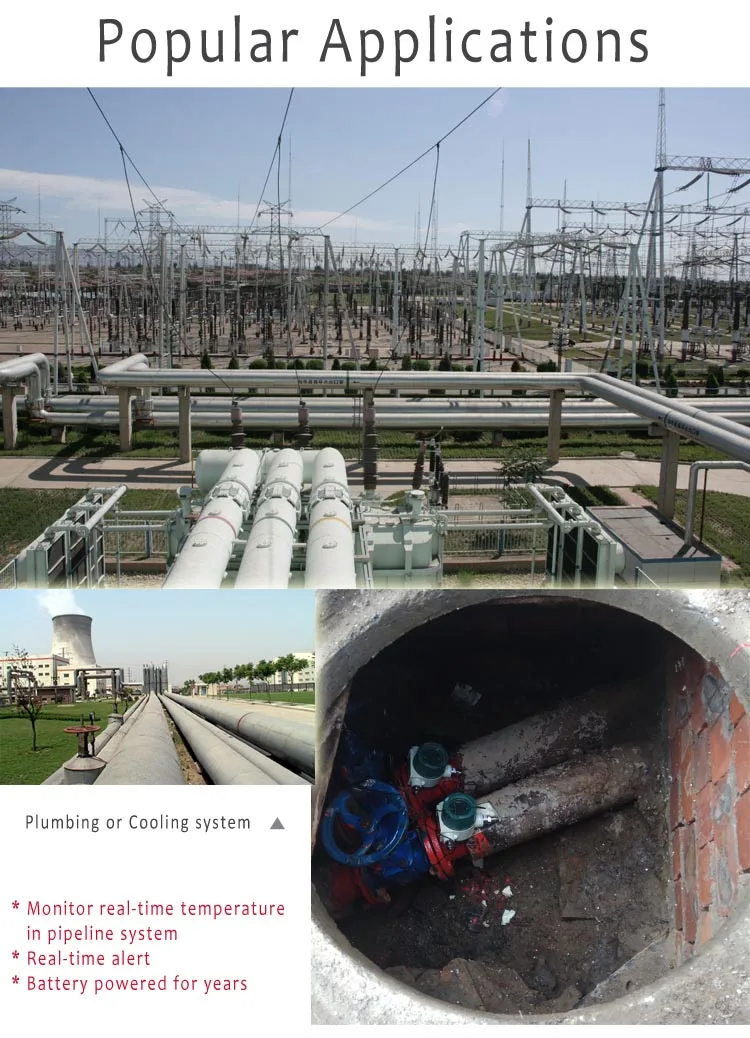

For example, for plumbing systems;
Too high temperature means heating wastage,
Too low temperature cant bring enough warmness to residents.
Advantages:1. NBIOT communication, frequency will vary for markets
2. Super low power consumption design
3. Battery work for 2~3 years outdoor
4. Customized settings, data could be sent to server of clients
Technical details: Range -50~150 Customized
Accuracy 0.5%
Temperature probe 100*6mm Customized
Temprature chip PT1000 sensor
Network NB-IoT: please confirm the frequency band in your market
Display 5 digit reading value, 7 digit display
Protection IP65, waterproof, dust-resistance
Power Battery 38000mAh 3.6V, one-time use
Working environment
Operating temperature -20~70
Operating humidity range <90%
Storage temperature -20~70
Physical materials
Process thread G1/2, M20*1.5mm Customized
Material of housing Aluminum alloy
Free demo web platform:
