Product introduction

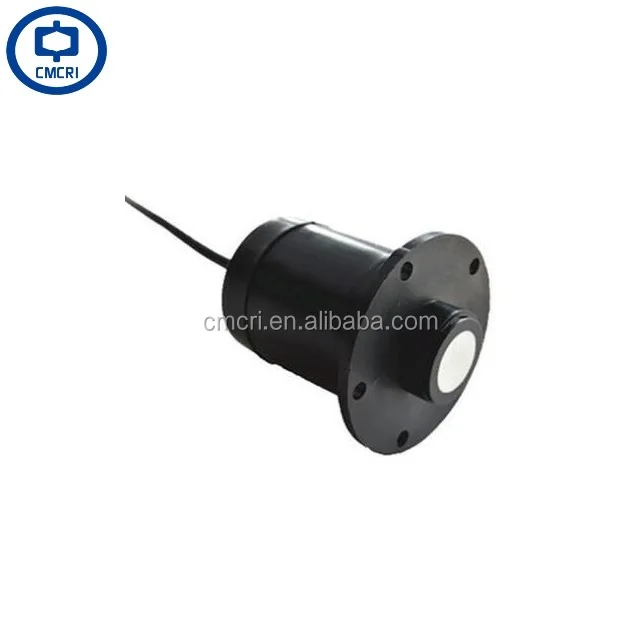

CL550 is ultrasonic level (distance )sensors which can measure the air height directly and calculate the liquid or solid height based on the total height of the container (distance).
It is applicable for the close container or open container, or even the river.
Furthermore it can calculate the volume of the container or the liquid.
With LoRaWAN wireless module, the level data is sent to the network server via gateway. Finally user can monitor the realtime level remotely. It is optional for
frequency 470Mhz(CN), 868Mhz (Europe), 915Mhz(USA), 915Mhz(Australia),
865Mhz(India),923Mhz(Australia).
Non contacted measurement, up to 5 meters. Top installation, need drill hole. Option with battery for low frequency measurement, no need to connect power
cable.

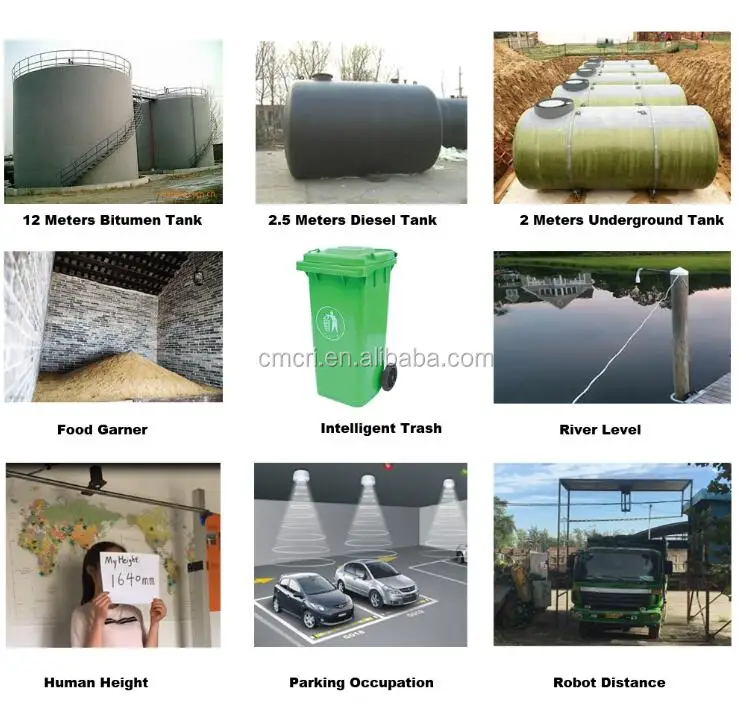

Application On-line stock
Fuel station storage
Farm storage
River/sewage level measurement
Manufacturing process distance detection
Recycle tank fill detection
Parking occupation
Human height measurement
