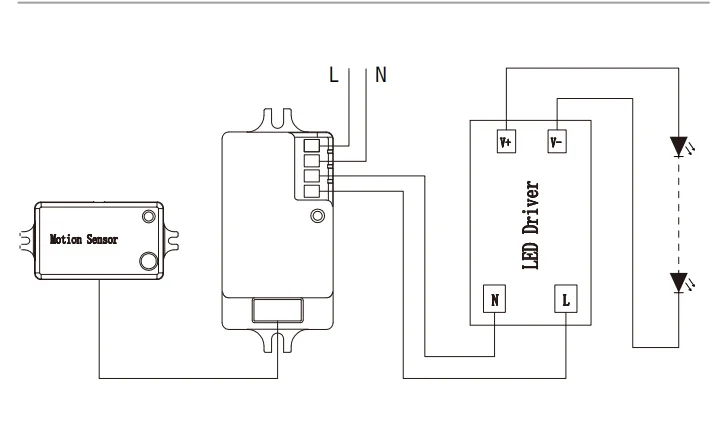

wiring diagram

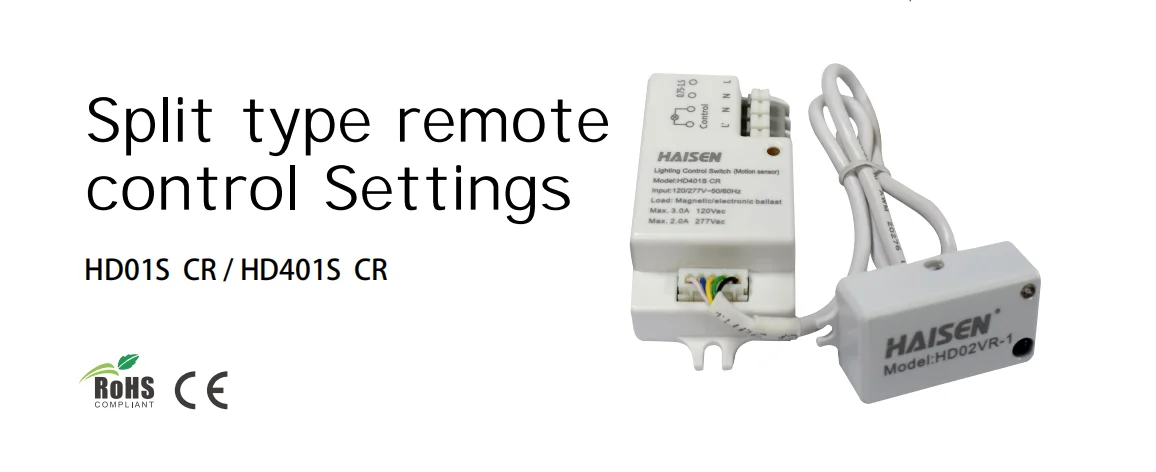

HD01S CR / HD401S CR
Motion Sensor White Original Power Theory Color Transducer Output Material Moving Temperature - ANKUX.COM

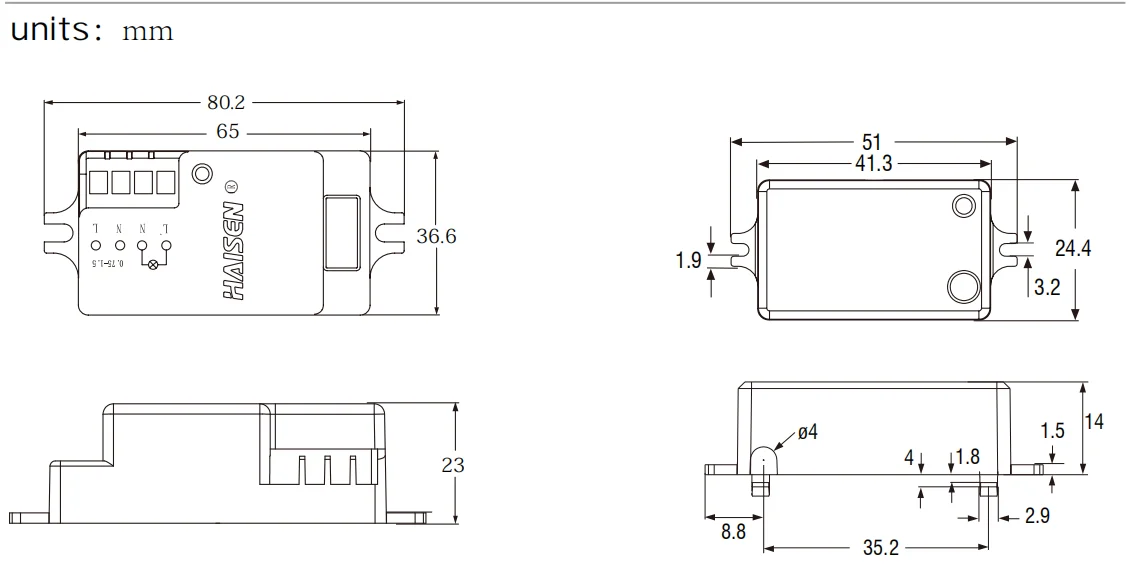

dimension figure
HD01S CR / HD401S CR
Motion Sensor White Original Power Theory Color Transducer Output Material Moving Temperature - ANKUX.COM

Specification
HD01S CR / HD401S CR
Model number HD01S CR HD401S CR
working voltage 220~240 VAC 50/60Hz
120VAC 50/60Hz
load capacity Max,400W (Capacitive load);Max,800W (Resistive load)
Max,3.0A@120Vac;
Max,2.0A@277Vac
Standby power ≤0.5W
≤1W
Operating temperature -20°C~+55°C
-20°C~+60°C
Detection range setting 25%/50%/75%/100%
Delay time setting 5s/90s/5min/15min
Daylight threshold setting 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Microwave frequency 5.8GHz±75MHz
Installation height Max.6m/19.68ft
Detection range Max.ø14m/45.92ft
IP protection level IP20

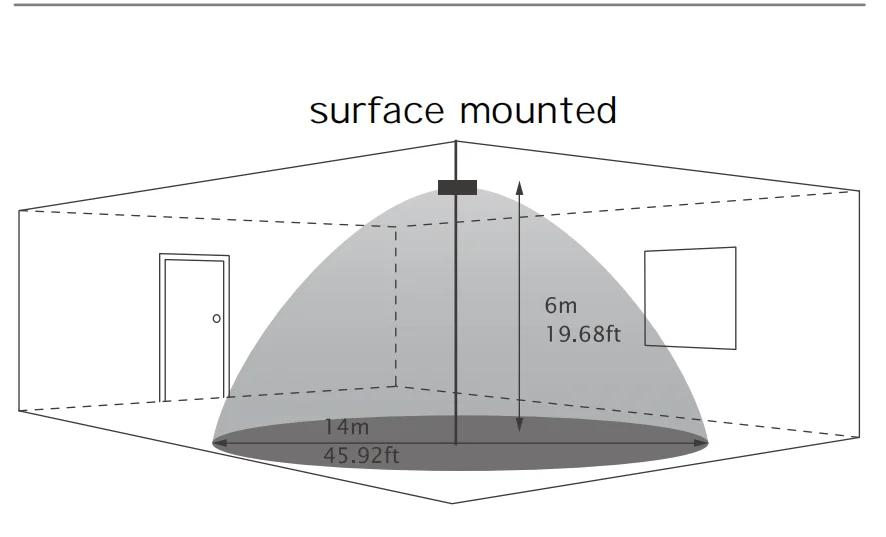

Schematic diagram of detection range
