KW7-1611-1C-372 micro switch zigbee home automation micro switch adopts the high quality PA66 for injection molding, the shell is high strength and good heat resistance. The die structures are special design, all action positions are high accuracy. The switch button push sounds silvery, feel perfect and good rhythm. Our switches are fast action, long life, high reliability, stability and good appearance. We specialize in switches field for more than ten years and we have established business relationship with many world famous company such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton and Emerson etc.
A. UL, CE, RoHS TUV, CCC approved, ISO9001:2008.
B. 1-22A, 250VAC.
C. Materials:
Base plastic---Nylon 66
Button plastic---PC or Nylon 66
Copper parts such as terminal----Copper H62
Terminal surface treatment----- tin plating
Contact----Compound Silver
Spring----Tungsten steel
1. Application
Our micro switch zigbee home automation micro switch are widely used for microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine etc. Micro switch, micro switch t85 5e4, kw3 oz micro switch, micro switch 25t85 micro switch, 40t85 micro switch
2. Features:
A. Using high quality PA66 for injection molding, the shell is high strength and good heat resistance.
B. The die structures are special design, all action positions are high accuracy.
C. The switch button push press sounds silvery, feel perfect and good rhythm.
D. Small contact gap, snap action, high sensitivity and small operating travel.
E. A Variety of levers and contact terminals are available for choosing.
F. Low to high operating force are available for various types.
G. Fast action, long life, high reliability and stability.
3. Technical Data:
Items Specifications Remark

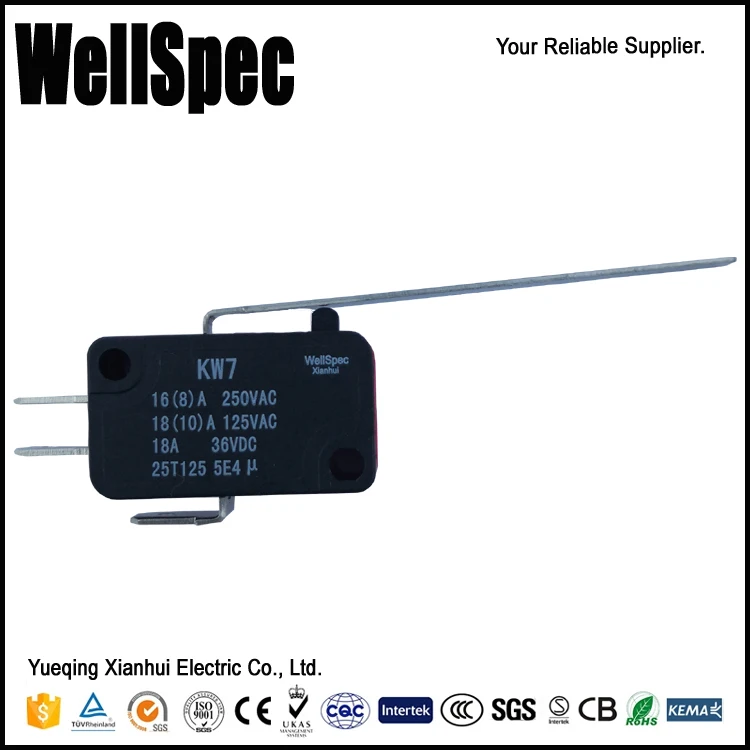

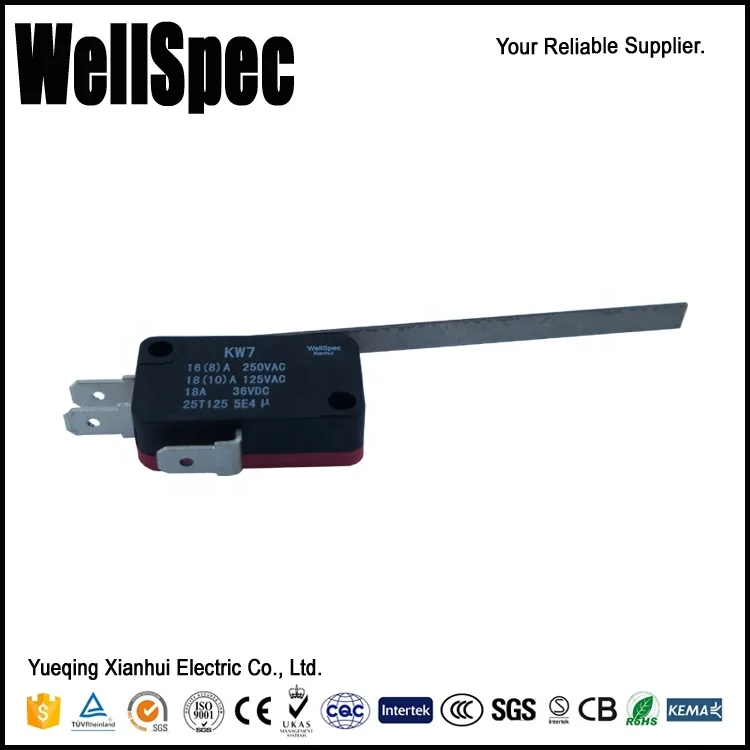

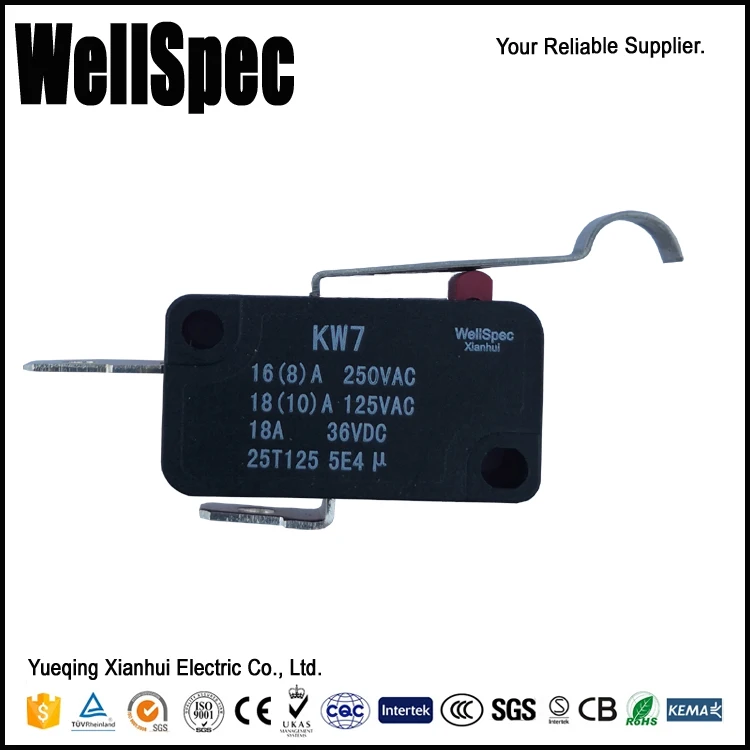

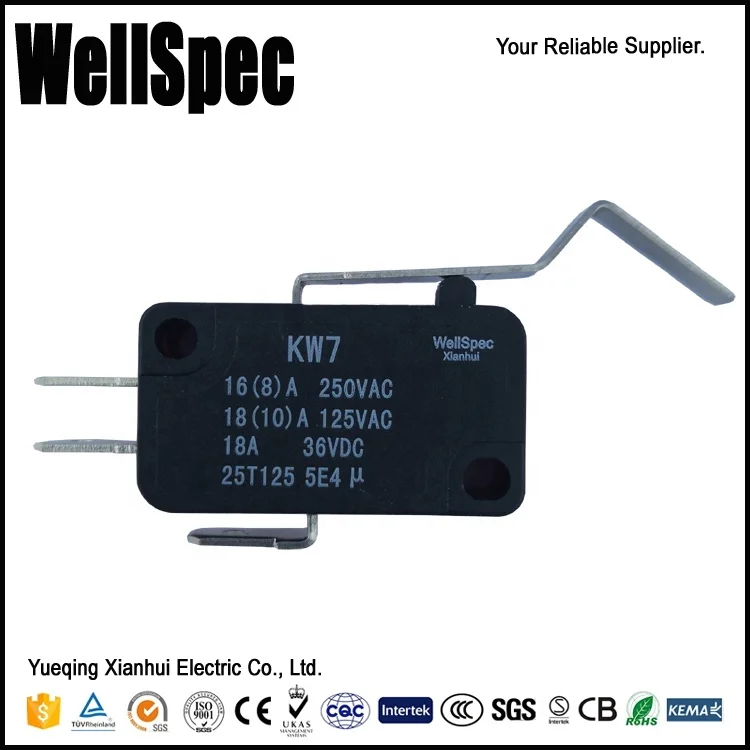

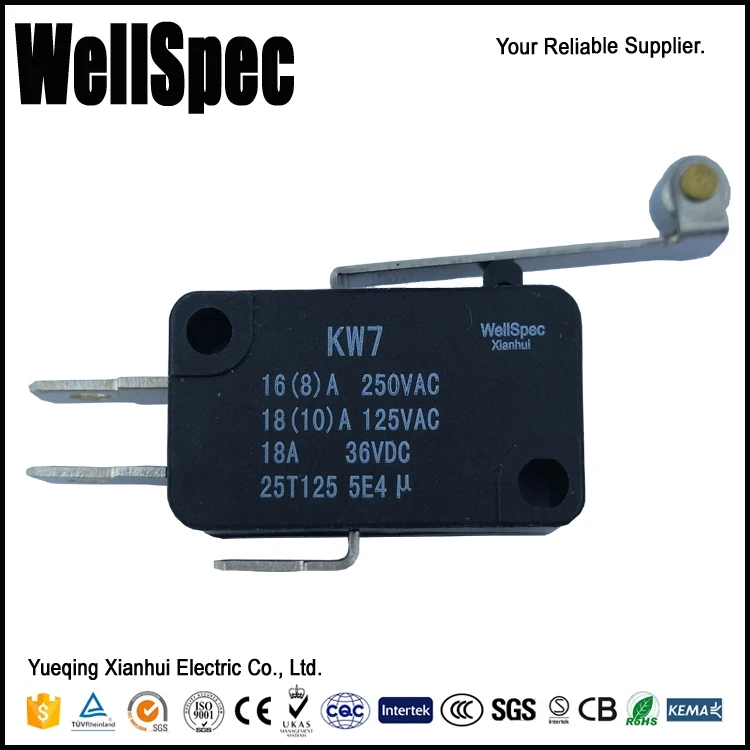

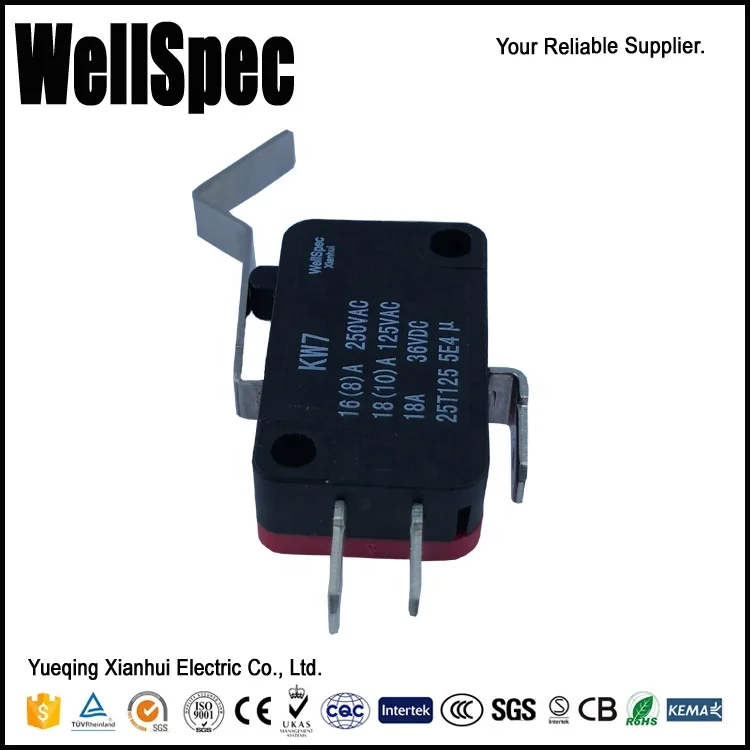

Model KW7-1611-1C-372
Rated Current/Voltage 16(8)A 250VAC 18A 36VDC
OT(Operating Travel) 0.7-1.4mm
MD(Movement Differential) 0.1-0.6mm
OF(Operating Force) 15/30/50/80/120/150/200/300/400/500gf
Contact Resistance 50MΩ max.(Initial value)
Insulation Resistance 100MΩ min. (at 500VDC)
Ambient Air Temperature 25T125(-25°C ~+125°C)
Ambient Air Humidety Under 85% RH (+5~+35)
Protection Degree IP40/ IP65
Contact Form SPDT
Allowable Operating Speed 0.1mm-1m/s(Button type)
Allowable Operating Frequency Mechanical: 60cycles/min
Electrical: 30cycles/min
Dielectric Strength
(Test Voltage) AC1000V, 50/60Hz, 1min Between the non-continious terminals.
AC1500V, 50/60Hz, 1min Between non voltage metal parts and each terminal or between the grounding and the each terminal.
Vibration Resistance 10-55Hz,1.5mm Double amplitude Mis-operation
Shock Resistance O.F.>0.5N:1000m/s2(Approx.100G) max. Destruction
O.F.<=0.5N:500m/s2(Approx.50G) max.
O.F.>0.5N:300m/s2(Approx.30G) max. Malfunction
O.F.<=0.5N:200m/s2(Approx.20G) max.
Operating Life 1000,000cycles above Mechanical life
5E4(50,000)cycles above Electrical life
PTI(Tracking Resistance) 175
Welding Heat Resistance 260°C Less than 5s
Contact Material AgNi alloy ; AgCdO alloy
Other Materials Nylon 66, 301 stainless steel
Certified UL, CE, RoHS TUV, CCC
Weight Approx.6.2g (no lever)

4. Advantages
A. High accuracy, snap action and high sensitivity.
Using high quality PA66 for injection molding and the die structures are special design, so our switch button push press sounds silvery, feel perfect and good rhythm.
B. A Variety of levers, contact terminals and low to high operating force are available for various types.
C. Quality is pretty good because our switches are fast action, long life, high reliability and stability.
