Low power ZigBee USB module for home automation cc2530 zigbee usb dongleCC2531
Description Built-in USB interface, the maximum transmit power 4dbm
Product Features to adapt to 2.4GHz IEEE 802.15.4 transceiver l
high reception sensitivity and anti-jamming performance l
Programmable output power up to 4.5dBm l
suitable for system configuration in line with the worlds radio frequency regulations:
ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US),
ARIB STD-T66 (Japan) l
support accurate digital RSSI / LQI l data rate up to 250kBaud l modulation: O-QPSK l

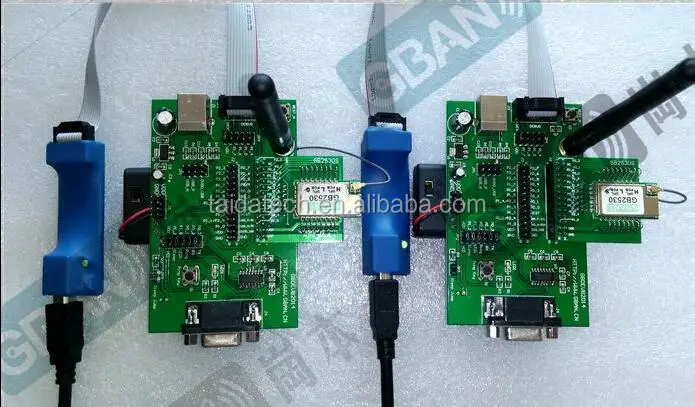

The board has integrated snake type PCB antenna
active mode RX (CPU idle): 24mA l active mode TX in 1dBm (CPU idle): 29mA l
power supply mode 1 (4us wake up): 0.2mA l
power supply mode 2 (sleep timer operation): 1uA l
power supply mode 3 (external interrupt): 0.4uA l
Wide supply voltage range (2V-3.6V)
Applications 2.4GHz IEEE 802.15.4 system
RF4CE remote control system (requires more than 64KB flash memory)
ZigBee system (256KB flash memory)
home / building automation
lighting system
industrial control and monitoring
Low power wireless sensor network
mobile phone peripherals
Sports and fitness devices
consumer health and medical care
home / building automation
consumer electronics products
USB Dongle
Dimensions 600milx880milmmx78mil (15mm * 22mm * 2mm)
Specifications
Parameter
Notes
Operating Voltage
DC2.0-3.6V
Operating frequency of
2394 ~ 2507MHz
Frequency stability
±30KHz
modulation scheme
O-QPSK
transmit power
≤4.5dBm
Programmableformulated
emission current
<29mA
Po = 1dBm
reception sensitivity of
-97dBm
Receiving a current
<24mA
Sleep current
0.4uA
Power Mode1
transmission rate
250kBand
communication distance
100m
openwithout block ambient
operating temperature
-20 ~ + 75
Storage Temperature
-40 ~ + 125
Dimensions
600milx880milmmx78mil(15.24mm* 22.3mm *2mm)
more informationSeePCBsize
