Low Cost high quality CC2530 Zigbee Module With Ti Chipest Factory Direct Sale


Overview

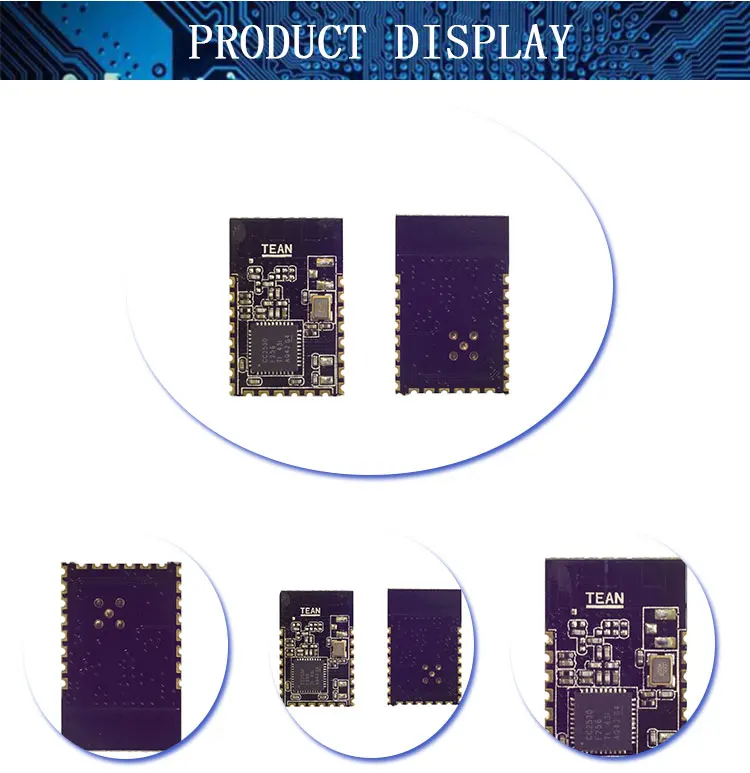

RL-CC2530-A3 RF Module is a low-power,highly integrated 2.4-GHz transceiver.That suitable for systems targeting compliance with worldwide radio-frequency. It"s a true system-on-chip solution for 2.4-GHz IEEE802.15.4, ZigBee and RF4CE applications.
Feature
2.4-GHz IEEE802.15.4 compliant RF transceiver Programmable output power up to 4.5dBm Accurate digital RSSI/LQI support Suitable for systems targeting compliance with worldwide radio-frequency Data rate: 250kbps 128KB in-system programmable flash, Customization 32,64,256KB Two 64 bytes FIFO for TX & RX buffer CSMA/CA hardware support Battery monitor and temperature sensor AES security coprocessor 8KB RAM with retention in all power mode 32-kHz sleep timer with capture Wide Supply-Voltage Range (2 V~3.6 V) Specification CC2530A3

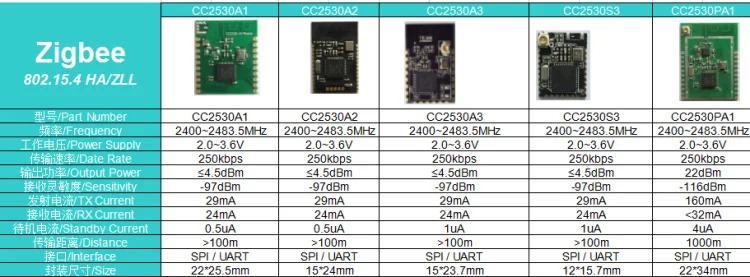

Frequency: 2400~2483.5MHz Power Supply: 3.0~3.6V Date Rate: 250kbps Output Power: <=4.5dBm Sensitivity: -93dBm TX Current: 29mA RX Current: 24mA Standby Current: 0.5uA Distance: >100m Interface: SPI/UART Size: 15*24mm Applications

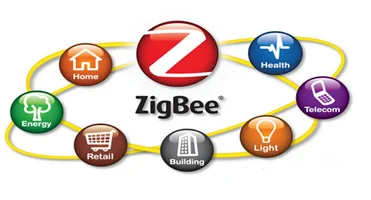

2.4-GHz IEEE 802.15.4 systems RF4CE remote control systems (64-KB flash and higher) AMR – Automatic Meter Reading Two-way RKE – Remote Keyless Entry Home and building automation Wireless alarm and security systems Industrial monitoring and control Wireless Light Dimming Wireless sensor networks
Warranty
All products and accessories have been tested by 3 times before ship out.3 months warranty, If there is no man made problem, we will do our technology service freely. We own the best after-sale service, if any problems, Our team will do our best to solve for customer.


Shenzhen Radioland Technology Co., Ltd. is a high-tech enterprise that integrates R&D, production and sales of wireless RF modules. Has been focusing on low-power, low-cost, short-range wireless data transmission. The company has always been at the forefront of the industry with its technology, scientific innovation and development, and constant attention to market dynamics.

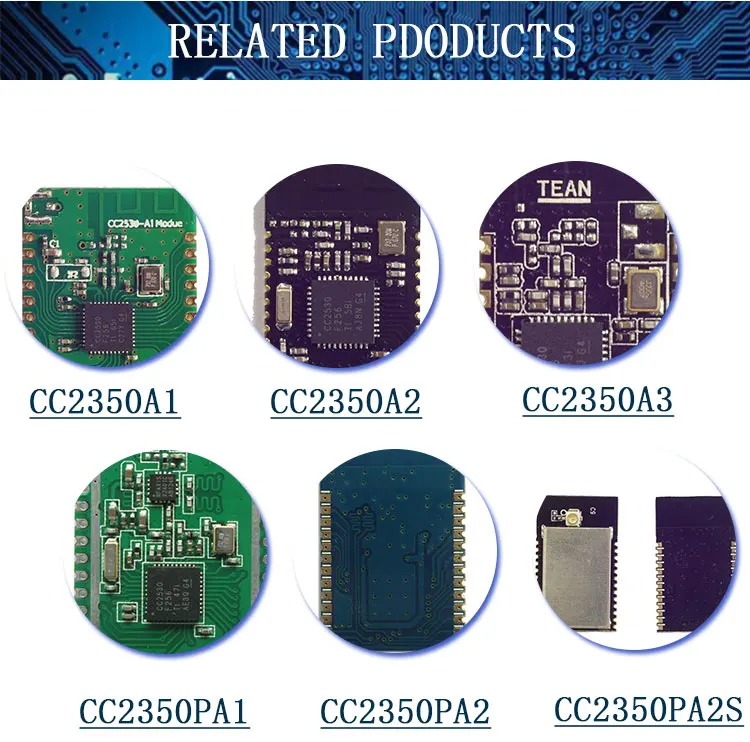

our company has developed solutions for wireless meter reading, industrial control, medical devices, sensors, and smart home applications. The main products include zigbee adaptive networking module, 433MHz wireless meter reading module, wireless transparent transmission module, low-power Bluetooth 4.0/4.1 module, WiFi module, various system solutions, and modules applicable to all types of short-range wireless devices. The products have been highly praised by customers for their low power consumption, low cost, and outstanding RF performance. Widely used in remote control, security, monitoring, logistics, positioning, data transmission and other fields. The companys wireless RF module provides customers with a fast path from chip to application, enabling users to avoid circuit board design, RF debugging, communication protocol research, and many other tedious processes, helping customers to develop products and greatly shorten the development cycle. The companys products and services throughout the country and exported to Europe and the United States and Southeast Asia
Q1. Can you provide samples ?
A.Yes , we can provide samples to you and offer customize service, sample charge can be refund after confirm an order .
Q2. How to ship ?
A.We have forwarder in China , can shipping to Any countrys , if shipping by air , we can provide MSDS report . we have profession assistance track for you until delivery.
Q3. Why is Bluetooth low energy (BLE) important?
A:BLE is the signal emitted by beacons, and its important for two reasons.
First, it transmits radio waves, which can penetrate physical barriers like walls, unlike Wi-Fi or cell signals, which are often disrupted. Second, BLE consumes only a fraction of the battery power than traditional Bluetooth module does.
Q4. Do beacons work with iphone and Android phones?
A:Yes, but they work differently. Only iOS 7 devices constantly scan for BLE and wake up relevant apps - even if they are closed - when they come within range of a beacon. /Phones and/Pads can do this thanks to for A/pples iBeacon protocol (more onthat below)Android devices, on the other hand, do not have a beacon system of this type at the operating system level. Android apps must therefore scan for BLE, meaning that for Android users to interact with beacons, they have to have the app running on their phone, at least in the background.
Beacon scanning at the app level means there is more of a battery drain for Android users.
Q5. If, as a retailer, I purchase beacons from a vendor, how do I know theyll work with my app?
A:Developers have to include the unique identifier of a beacon in the code so their app will be able to recognize it. If an app doesnt know the identifier for a beacon, then it cant be on the lookout for it"s BLE signal.Most beacon vendors provide developer support to help users configure their apps.
