Brief on deviceLoRaWAN LoRa wireless level transmitter

Model: TD-L07 (LoRaWAN communication)
Brief introduction:
Pls. be noted that: This is prototype for Overseas market
Tested products: range 0~3M water, cable length 0~5M, accuracy 0.5%
module: Foxconn 470MHz (Foxconn gateway, Acitility IoT platform)
tested OK in Shanghai, China;
Please confirm your frequency band & gateway technical sheet & IoT platform to us;
This wireless level transmitter is designed to monitor different liquid level, and report level data to Cloud server at set interval when measured level reading is normal;
once it detect critical level (too high or too low), it will report the data packet to cloud server AT ONCE;
Data flow: End device (LoRaWAN level sensor) - Gateway - IoT platform - User platform
Advantages:1. LoRaWAN communication for global market
2. Super low power consumption design
3. Battery powered for out-door working 3~5 years
4. Customized settings, data could be sent to server of clients
Technical details: Range 0~1M.....200M Customized
Cable length 0~1M.....300M Customized
Accuracy 0.2%, 0.5% Customized
Long-term stability 0.1%FS/year
Network LoraWAN: please confirm the frequency band in your market
Remitting distance over 5km in open land
Display 5 digit reading value, 7 digit display
Protection IP65, waterproof, dust-resistance
Power Battery 38000mAh 3.6V, one-time use
Working environment
Operating temperature -20~70
Operating humidity range <90%
Storage temperature -20~70
Physical materials
Process thread G1/2, M20*1.5mm Customized
Material of housing Aluminum alloy
Free demo web platform:

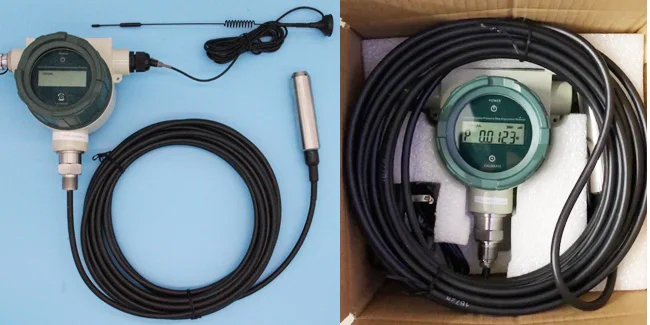

Packages:

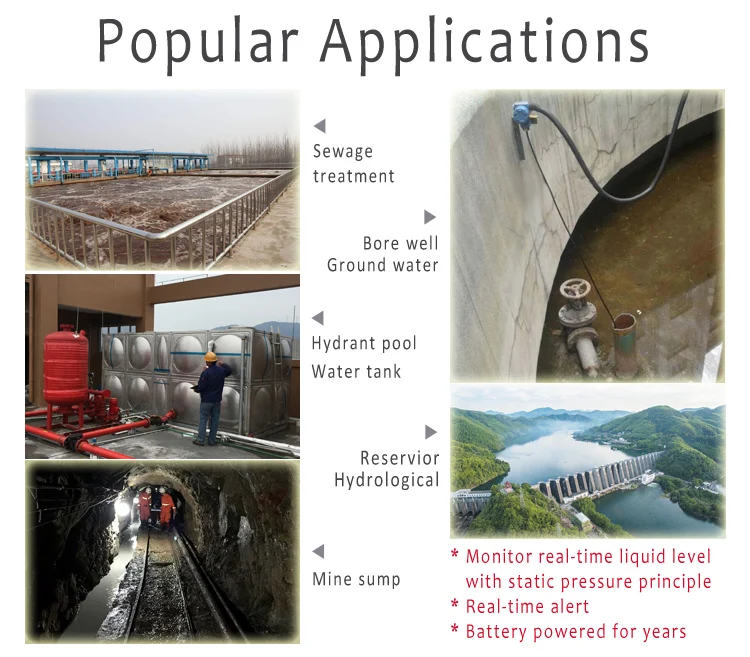

Popular ApplicationThe wireless water level sensor are widely used in many different applications:
