Product details
WIFI LoRaWAN Gateway Module
GTi-M1307 is a High Performance Commercial Grade pure RF LoRaWAN Gateway Module, which uses chirp Spread Spectrum technology long range spread spectrum communication, Maximum Allowable (MAPL) Path Loss is up to 162dB,support LoRa modem 8 channel access,available to help baseboard of SPI output port to establish LoRaWAN network,as well as to adapt to network transmission rate based on dynamic network environment to optimize network performance.
l Pure RF LoRaWAN gateway module,using RF chip SX1308;
l linear spread spectrum,long distance, max coupling loss 162dB;
l Star network, frequency and rate adaptation
l Dual digital wireless front-end transceiving interface;
l Uplink 8 chanel, downlink 1 chanel, 6 spread each chanel spread spectrum factor each channel (SF)
l U.FL RF interface
l Optimize network performance by adapting to neork transmission rate based on dynamic network environment.
l Integrated WiFi communication module and antenna, support 802.11b/n/g.

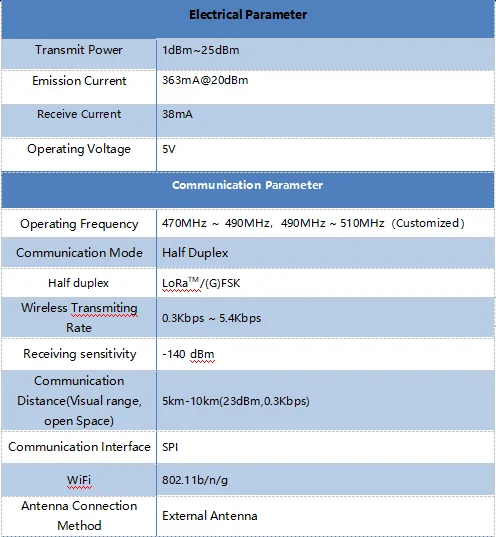

Specification
