LoRa wireless remote water meter and remote meter reading system proposal
Overview

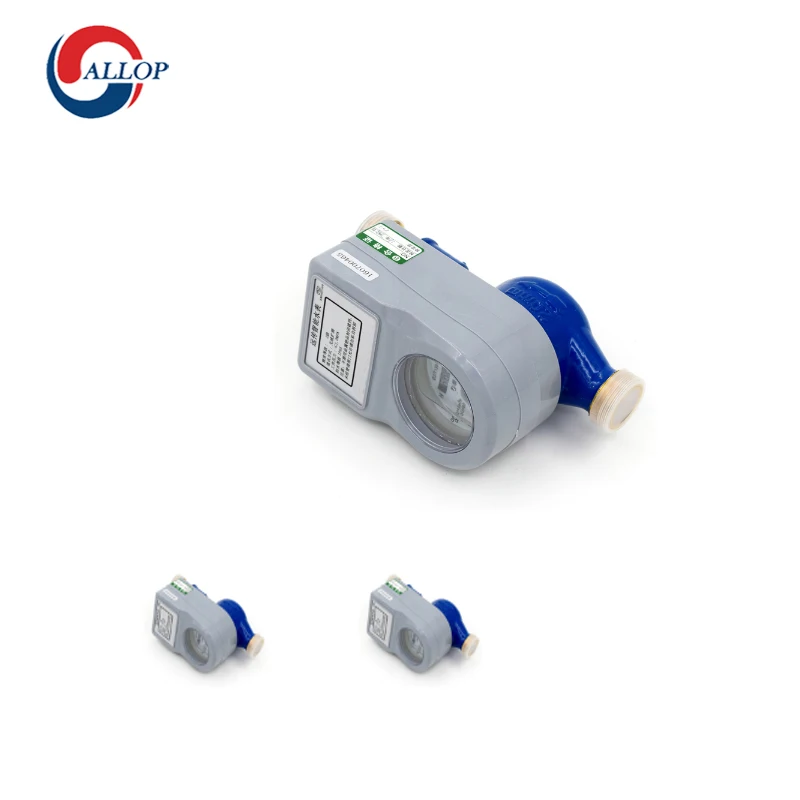

Long distance wireless remote transmitting intelligent water meter is a new technology designed by our company to improve the comprehensive accounting management level of water meter energy consumption parameters. Compared with the similar meter reading system, it has the features of no construction wiring, adaptive network structure, free debugging, maintenance free, stable operation and convenient expansion . The system uses advanced wireless network data transmission technology to collect real-time data. realize centralized storage and unified management of data, reduce artificial labor, greatly improve work efficiency, provide the basis for the management, statistics and analysis of energy use by relevant departments, and make management more scientific more efficient.
1.System Function
² Regular reporting function
² Active meter reading control valve
² Equipment file management
² User file management
² Report query printing
System introduction
Long distance wireless remote meter reading system is a set of automatic meter reading system with high performance price ratio, which is introduced by our company with its own advanced technology and practical application requirements. The system is one of the most advanced remote meter reading systems at home, using the advanced technology of computer network, wireless network, automatic control and so on, using the rich experience of the company in more than ten years.

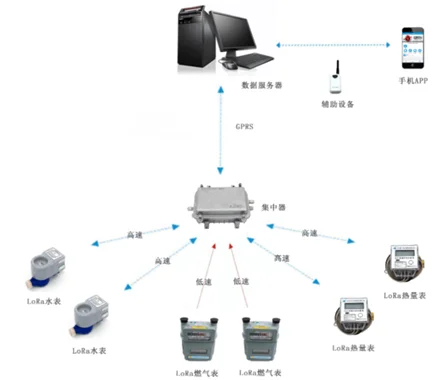

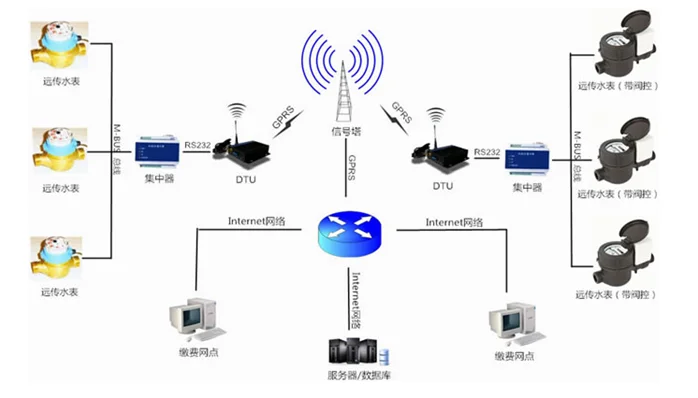

1. System network structure
The system has excellent transmission and anti-interference ability, can realize wireless remote transmission water meter management.
A concentrator can carry one thousand water meters, a mobile phone card can realize the management of all the tables in the whole area. In the absence of interference, the concentrator and table communication can reach 2km, the load is large, the communication is reliable, and the installation is convenient.
1.1 Technical parameters:
Usage temperature: 0 -40 (cold water) 0 -90 (hot water)
Use of humidity: ≤ 95%
Working voltage: 3.6V
Static working current: ≤ 3 mu A
Protection level: IP65 or IP68
Working pressure: ≤ 1.6Mpa
Micro emission power: ≤ 50mW
Maximum error: 2 level precision

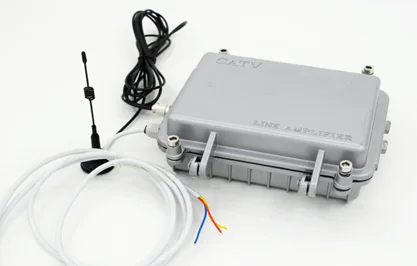

1.2 Concentrator performance parameters
After-Sales Service
1. 18 months warranty period;
2. Life long-term free maintenance;
3. Face-to-face to guide installation and calibration through video;
4. Any questions ,professional technical team will reply in 2 hours;

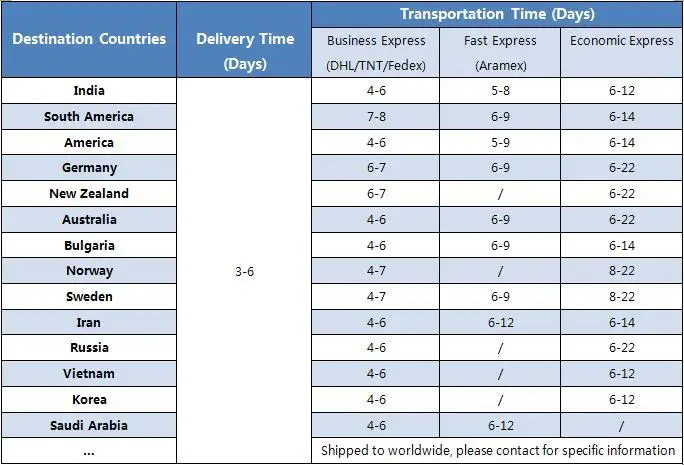

Packaging & Shipping
