lora wan ultrasonic heat counter dn15-dn40

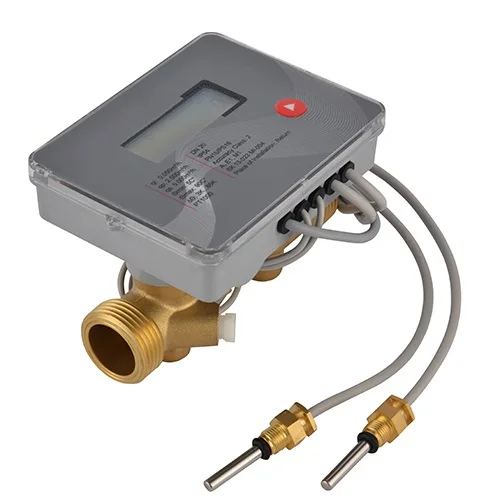

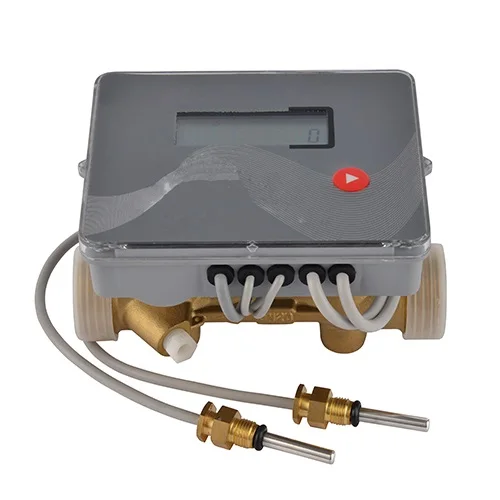

lora wan ultrasonic Heat Meter Counter DN15-DN40
Household Brass Body Smart Heat Meter Counter DN15-DN40 are used for measurement of heat consumption in all water based plants
with flow temperatures sensors. With more than 10 years development and research,Our Smart Heat Counter can pass the MID,CE and
Russian standard. But at the same time, our Smart Heat Meter Counters have very competitive costs comparing with other Smart Heat
Meters. Although with all of the M-BUS function, RS485,Pulse and infrared,Our mechanical smart heat meter counters also have very
competitive markets all over the world.
The specification of Household Brass Body Smart Heat Meter Counter DN15-DN25 is following:
Diameter DN (MM): DN15 DN20 DN25 dn32 dn40
qi(m3/h): 0.03 0.05 0.07
qp(m3/h) 0.6 2.5 3.5
qs(m3/h) 3 5 7
Function M-BUS, RS485, Pulse, infrared
Accuracy class 2
Pressure loss ＜25kPa
Max working pressure 1.6MPa
Temperature range 4 ~ 95
Temperature difference range 3 ~ 70
Temperature differential 0.01
Environmental grade A
Battery working time 8years
Installation way horizontal or veritical
Temperature sensor PT1000Display digits 8digitsHousehold Brass Body Smart Heat Meter Counter DN15-DN25
