lora low power consumption 3 years long distance car mobile stand by battery life gps gsm tracker

IoT / LoRa

lora low power consumption 3 years long distance car mobile stand by battery life gps gsm trackerWhy Choose iStartek?

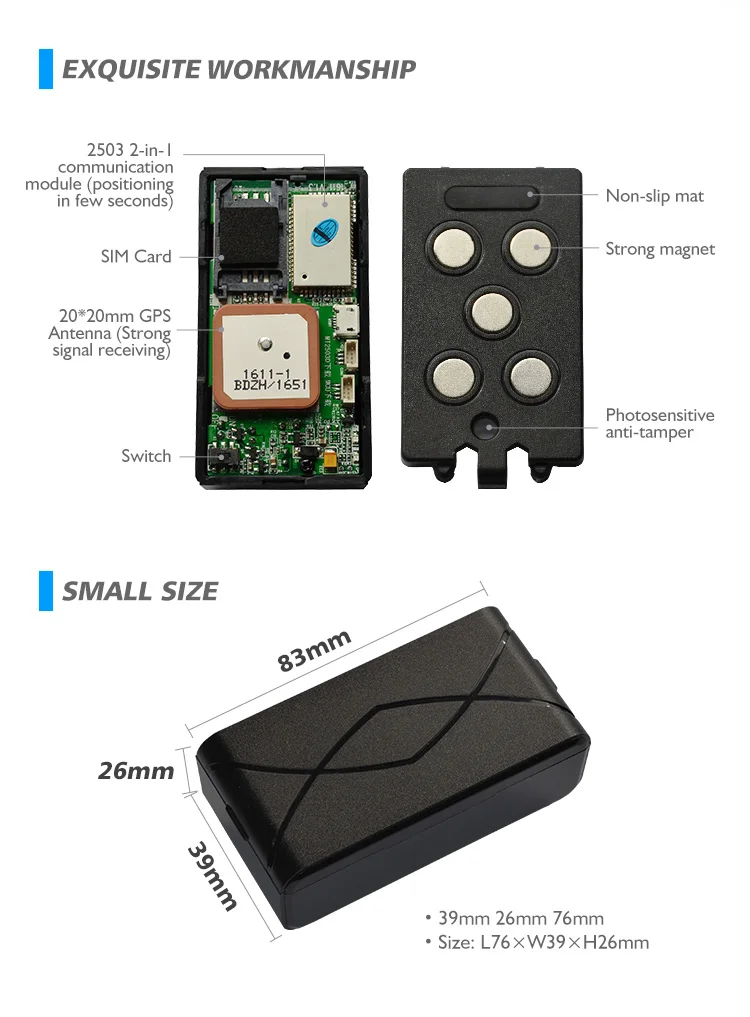

Product Pictures
lora low power consumption 3 years long distance car mobile stand by battery life gps gsm tracker - ANKUX.COM

Specification
Item Specifications
Working voltage DC 3V
Working current 60-80mA @3V
Standby current <3.5uA
Size L77mm*W41mm*H27mm
Location Way GPS
Location Accuracy <10 meter
Communication Network GPRS
GSM:800/900/1800/1900 MHz Quad-band
Communication way UDP
Working temperature -25+75
Storage temperature -40+85
weight 100g
Battery life 3 years (CR123A)
Function & Apply
Function:
Alarm Mode
Can set wake-up time 4 times each day, would wake-up automatically in the set time and after sending the Data then go into sleeping mode
Timer Mode
Sent the data at one fixed time and sent the location data in the setting time
Week Mode
Can set a time point and one day or several days in one week to send the data and then go into sleeping mode
LBS tracking+ GPS
tracking
When GPS cannot get the signal, the LBS tracking would start working automatically
Serial port set-up
Can set IP and port, APN, Equipment number, correct time, alarm mode, timer mode, week mode
Message set-up
Can set IP and port, APN, Equipment number, alarm mode R, timer mode. W, week mode
Message inquiry
Return back to reference setting
Message to the correct time
Use the mobile edit (C: TIME) send to the terminal equipment, after the terminal gets the message and would apply time correct to the platform automatically.
Tamper alarm
When the equipment detected the light turn to bright, the equipment will send an alarm message to the platform.
Anti-fake-LBS
location
Then the device will refuse to connect to the fake-LBS locate when detected

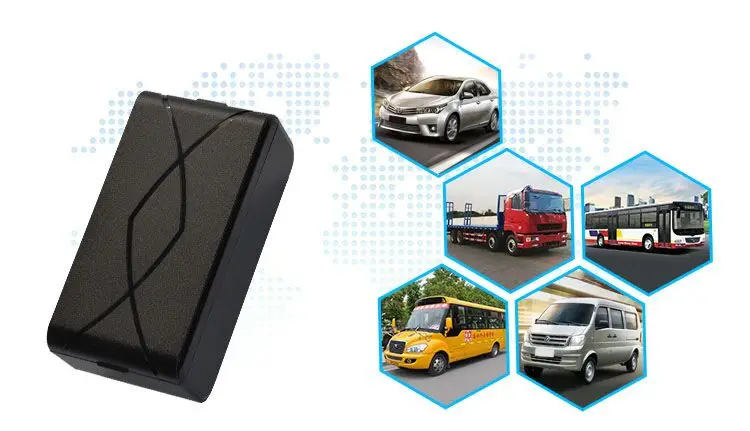

Application:
lora low power consumption 3 years long distance car mobile stand by battery life gps gsm tracker - ANKUX.COM

Coupon

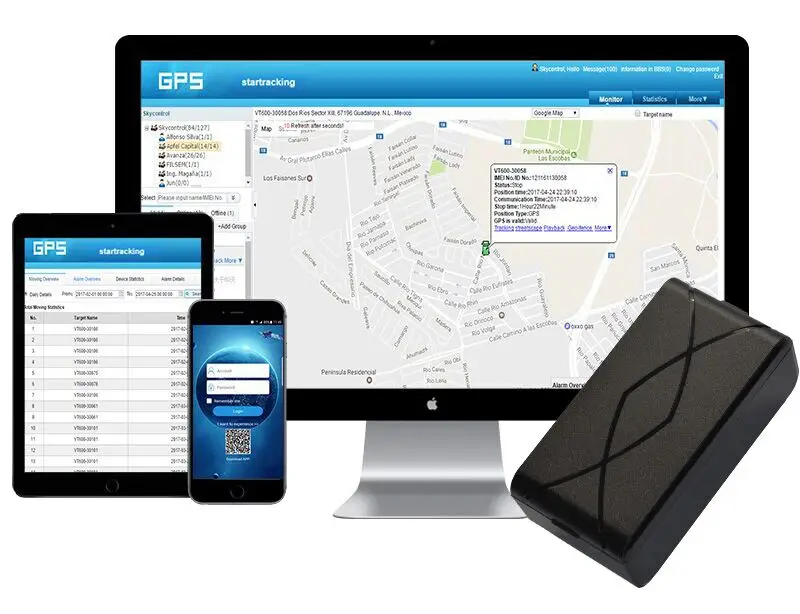

iStartek Platform
We provide free GPS Tracking System for one year, simple and easy for management and tracking!
Web-based tracking systemAndroid APPIOS APP Features
Descriptions
Time Zone & Local Language
More than 10 languages and timezone settings
Multiple Account Support
Allow you to set up an account for company user to management many vehicles
Group Management
The user can manage the vehicle by setup difference groups
Reporting and Export
The overview report, Speeding report, Mileage Report, Stop Report
Real-Time Tracking
Track the vehicle by real-time
Location History
Replay the location history
SOS Alarm
SOS Alert
Communication Failure Monitoring
Monitor the vehicle when it is not reporting
Over Speed Monitoring
Monitor the vehicle when it is over a speed
Online Vehicle Engine Control
Turn on or turn off the engine
Geo-fence Notification
Set up a zone to monitor the vehicle to enter or exit this zone.
Landmark
Mark the new point in the map by yourself
