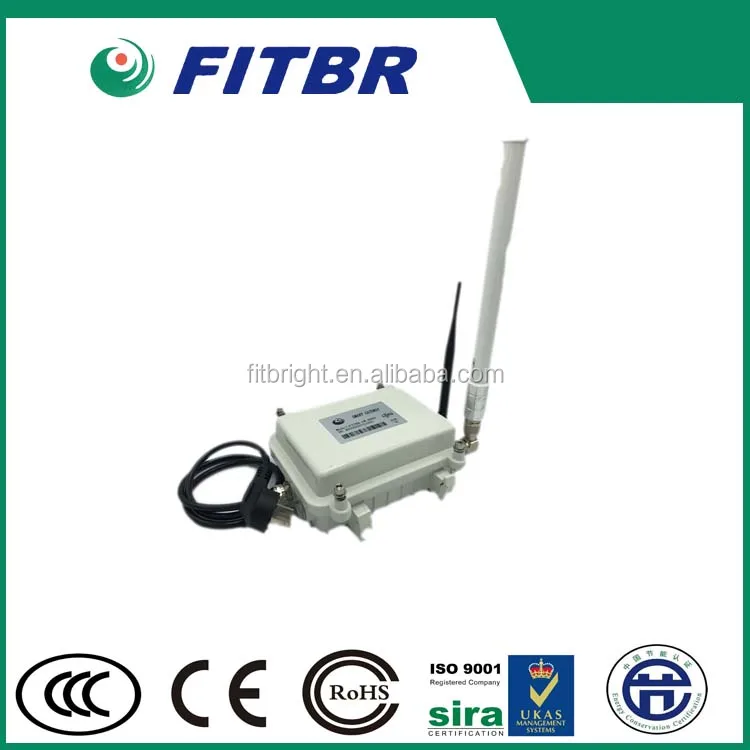

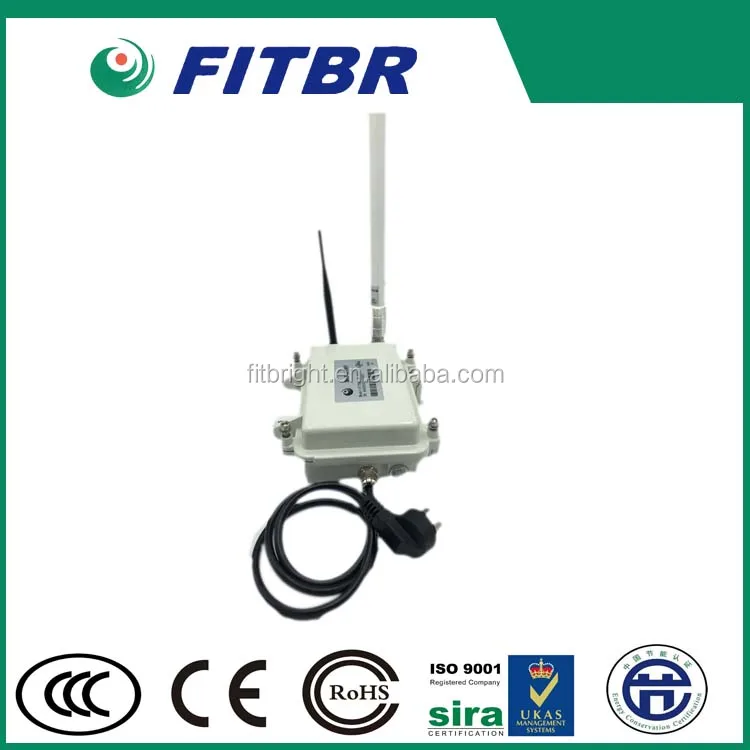

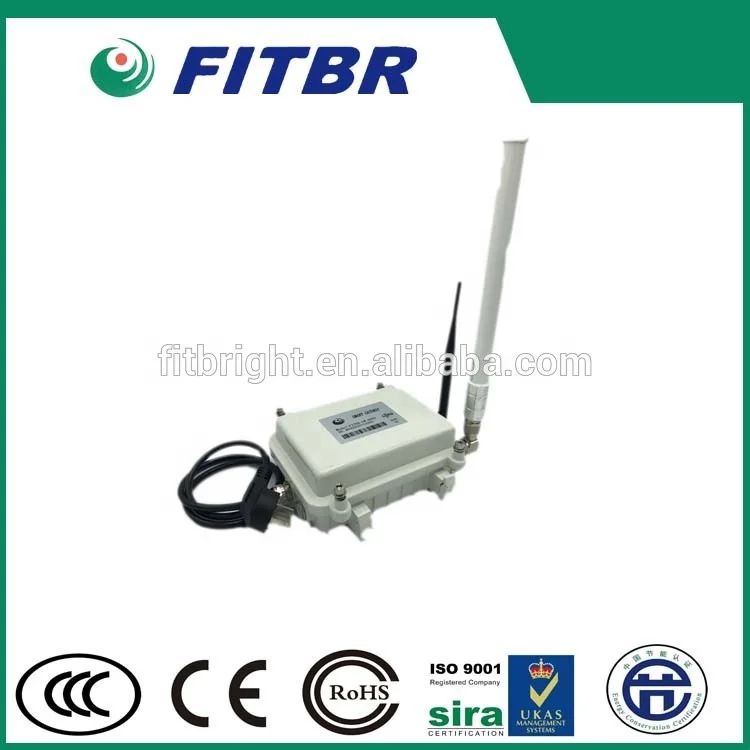

LoRa LORAWAN outdoor Gateways and Concentrators for IOT for sale
Series of product is PLWAN network deployment IOT concentrators, based on LoRaWAN communicate. It can connect the cloud server through the Ethernet cable, also support 4G network connection. At the same time, internal built-in GPS module provides precise timing, used to support LoRaWAN Class B communication protocol.
Wireless
GPS
Active GPS,@1575.42MHz
LoRa
Part
Parameter
Min
Typ
Max
Unit
470 MHz
Frequency Range-Tx/Rx
470
510
MHz
Max Output power
25
dBm
868MHz
Frequency Range-Tx/Rx
859
871
MHz
Max Output power
25
dBm
915 MHz
Frequency Range-Tx/Rx
900
930
MHz
Max Output power
25
dBm
4G
- TDD-LTE B38/B39/B40/B41
- FDD-LTE B1/B3/B8
- TD-SCDMA B34/B39
- WCDMA/HSDPA/HSPA+ B1/B8
- CDMA 1X/EVDO BC0
- GSM/GPRS/EDGE 900/1800 MHz
Wireless receiving sensitivity
LoRa
-148dbm
Antenna shape
External Antenna
Hardware
Network
Port
1 wired port(RJ45)
1 4G module
Supply Voltage
100VAC~240VAC
Power
Static power
3W
transmitting & receiving are closed, 4G connected
Average power
5W
4G connected,LoRaWAN working
Peak power
15W
all modules working at full capacity
Working environment
Temperature: -40~85
Humidity: 10%~90%RH without condensation
Structure
Size
Main body
Length:20cm,width:18cm,height:7cm
4G Antenna
Length:18.5cm
LoRa Antenna
Length:30cm
Install
Supply spare parts to install
