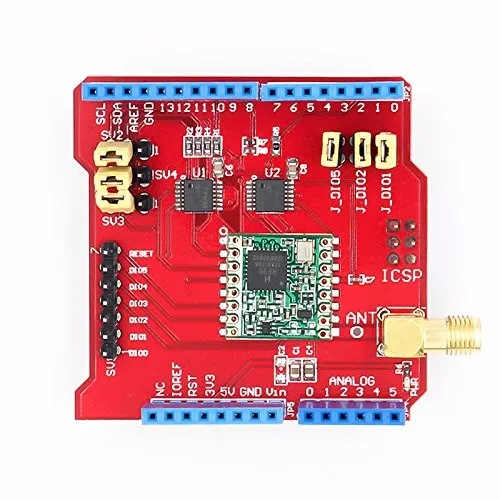

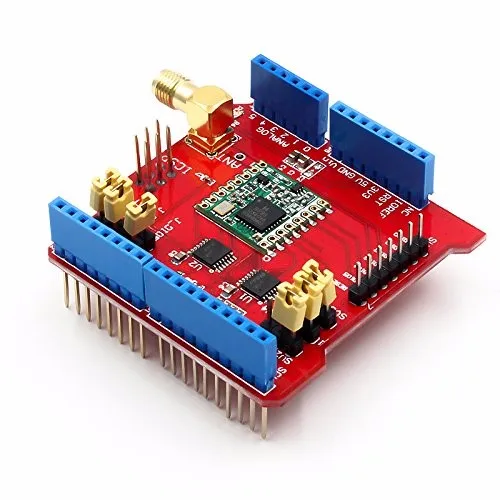

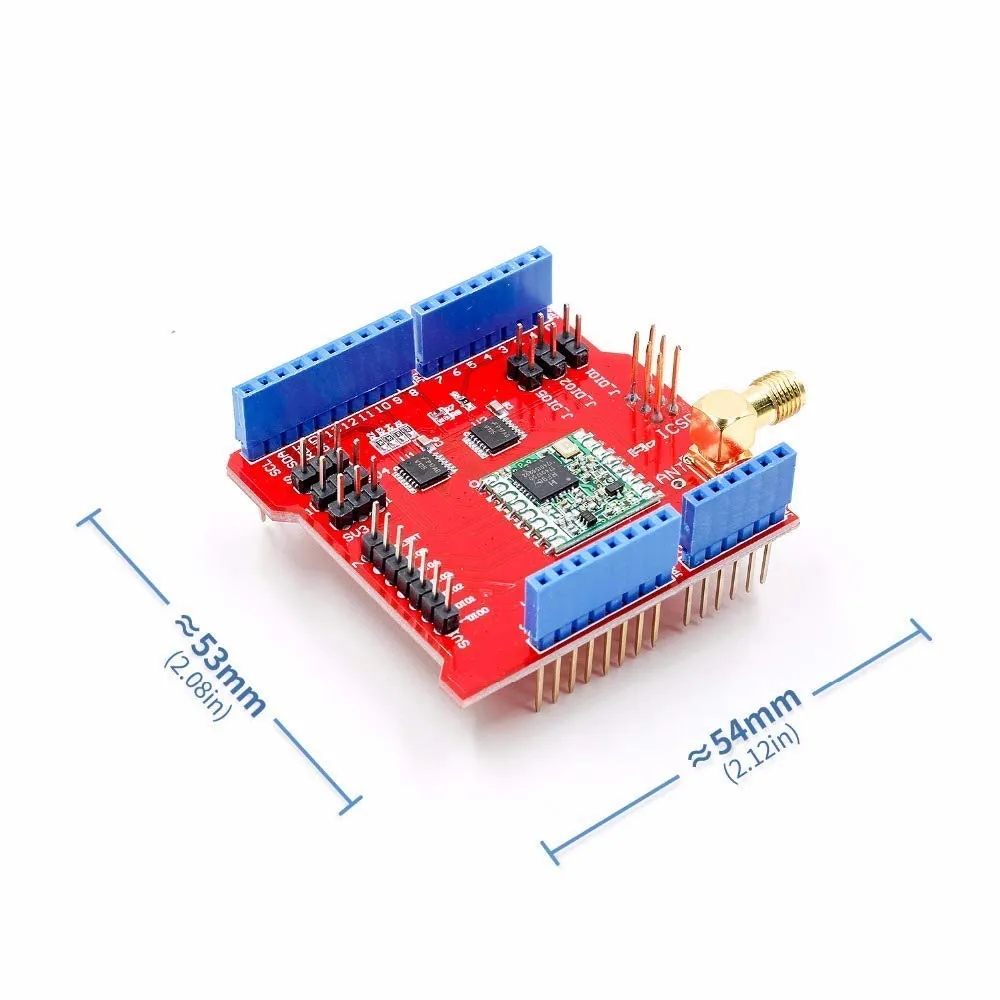

Long Distance Wireless 433/868/915Mhz Lora Shield for Leonardo UNO Mega2560 Due

IoT / LoRa

Detailed Image Long Distance Wireless 433/868/915Mhz Lora Shield for Leonardo UNO Mega2560 Due - ANKUX.COM

SpecificationCompatible with 3.3v or 5v I/O UNO Board.
Frequency Band: 433MHz / 868 MHZ or 915 MHZ (Pre-configure in factory)
Low power consumption
Compatible with UNO Leonardo, UNO R3, Mega, DUE External Antenna via SMA Jack
Specifications for RFM95W:
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
Preamble detection.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.
