AUTOMATIC WEATHER STATION
Weather station features:Ⅰ. The weather station can be configured with up to 16 sensors, and sensors can be freely configured according to customer needs;
Ⅱ. Wired and wireless transmission can be performed between the collector and the software;
Ⅲ. The weather station can be applied to various environmental monitoring.

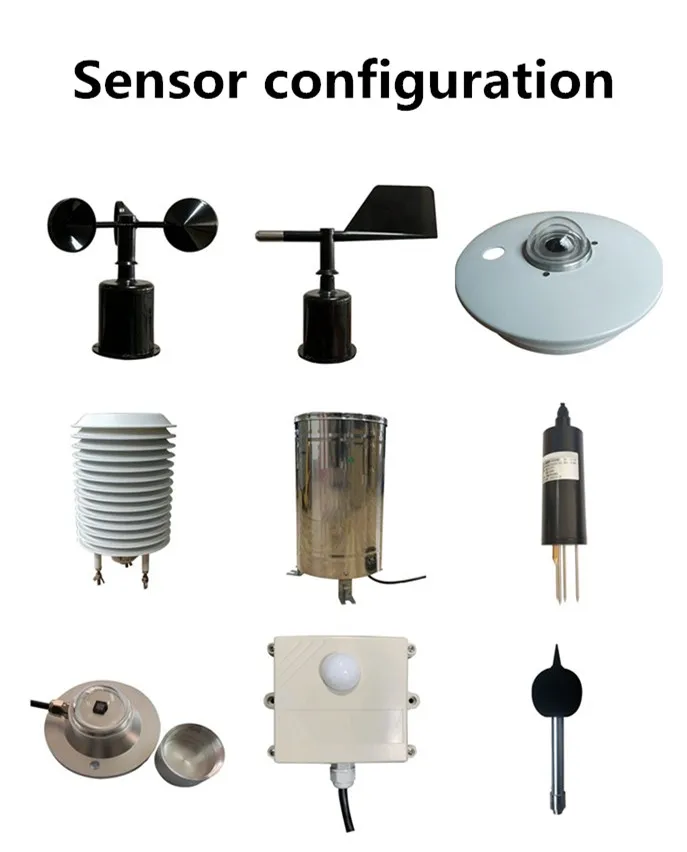

Configuration of sensors:
◆Wind speed sensor Wind direction sensor
◆Air temperature humidity and pressure sensor Soil temperature and humidity sensor PH sensor
◆TBQ total radiation sensor Simple total radiation sensor Illuminance sensor
◆CO2 sensor Noise sensor Rain sensor
◆Others
Basic Information
Brand:
LF
Model:
LF-0016
Communication method:
Wired: 232/485; Wireless: GPRS/Ethernet/WIFI/LORA
Poweredby:
Urban electricity + solar power
Mode of transport:
Sea, land and air transportation
Sensor Parameter
Sensors
Measuring range
Accuracy
Resolution
Wind speed sensor
0～45m/s
± 0.3±0.03Vm/s
0.1m/s
Wind direction sensor
0～360
±3
1
Air temperature sensor
-50～+100
±0.5
0.1
Air humidity sensor
0～100%RH
±5%RH
0.1%RH
Air pressure sensor
10-1100hpa
±0.3hpa
0.1hpa
Soil temperature sensor
-50～+80
±0.5
0.1
Soil moisture sensor
0～100%RH
±3%RH
0.1%RH
PH sensor
0-14
±0.1pH
0.01pH
TBQ total radiation sensor
0-2000m/w2
Rain sensor (0.2mm)
0～4mm/min
±4%mm
0.2mm
Illuminance sensor
0-200000LUX
±7%

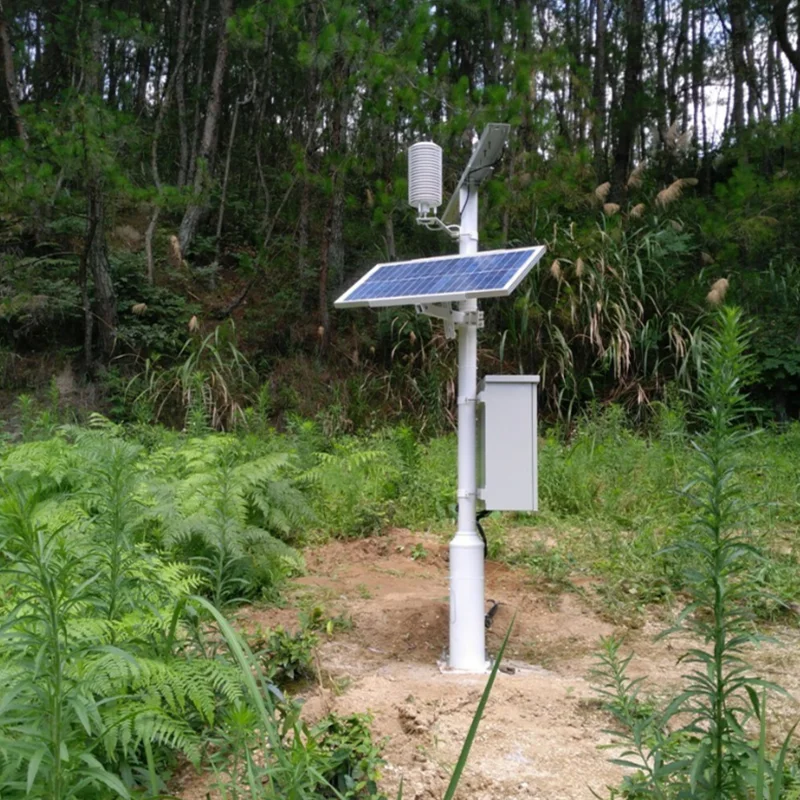

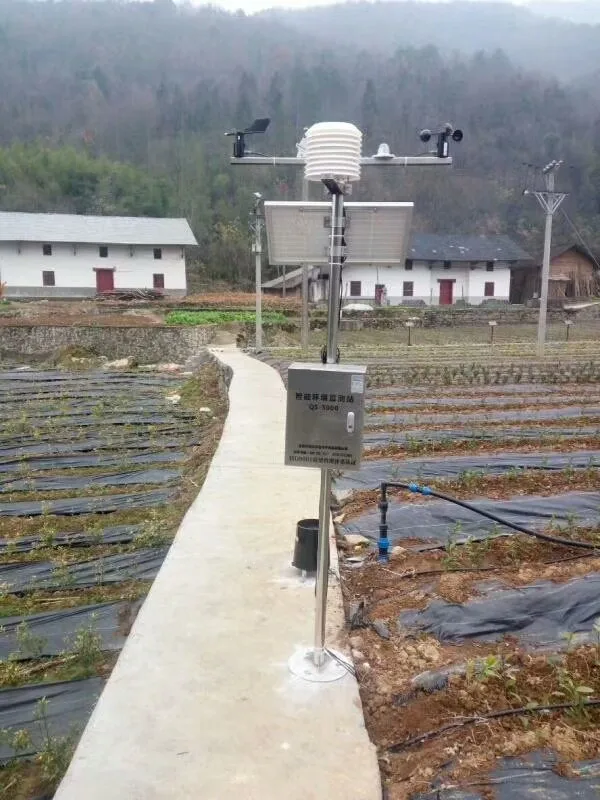

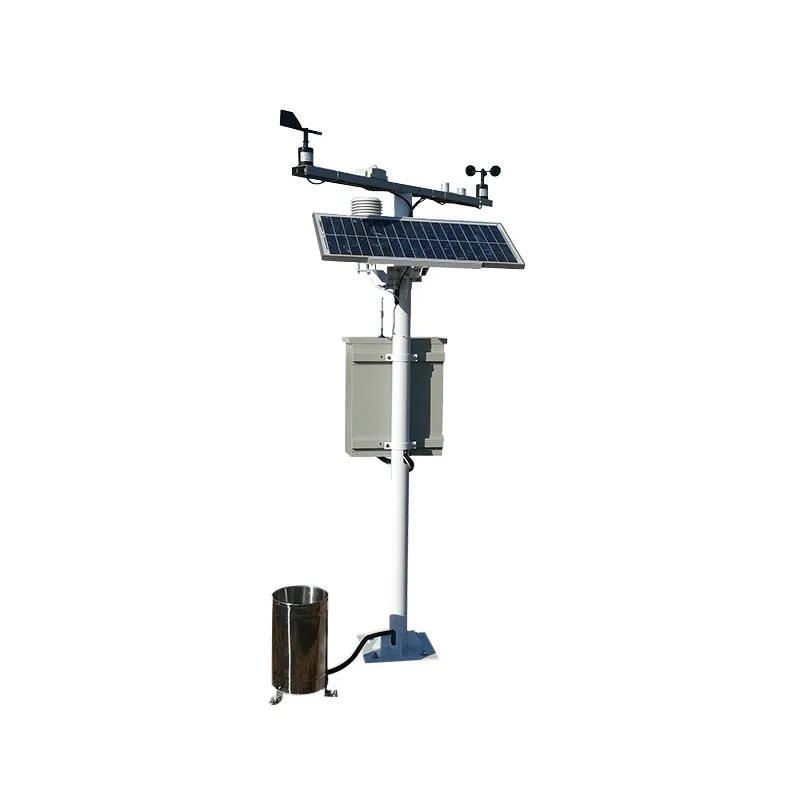

Product Detail Display
