LED Display Wireless Zigbee Water Level Sensor

IoT / ZigBee

LED Display Wireless Zigbee Water Level Sensor

Technical Data
Model

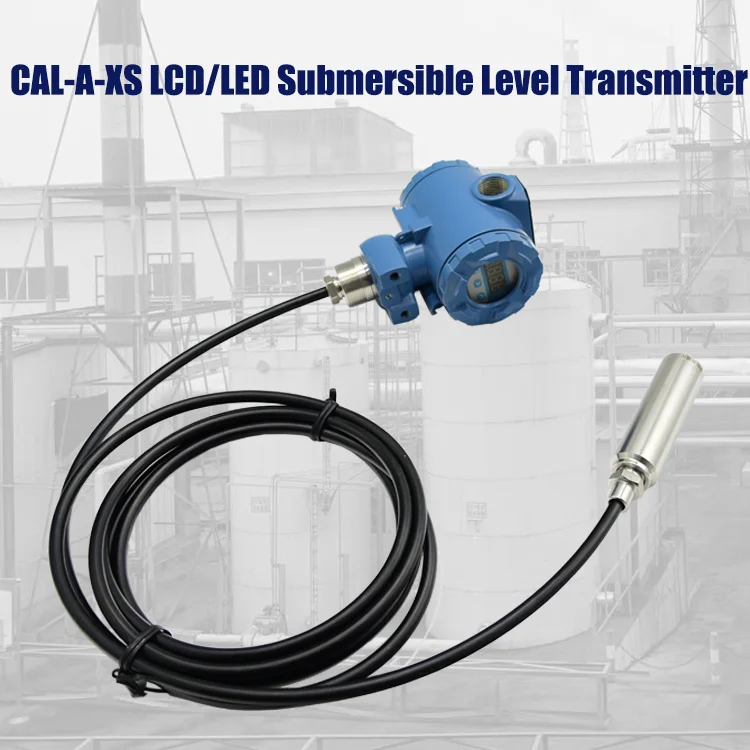

CAL-A-XS LCD/LED Submersible Level Transmitter
Display
LED/LCD (or without display)
Accuracy
±0.5FS/, ±0.3FS/, ±0.2FS/,
Measure Range
0-0.5 ~200mH2O
Working Temperature
20~85
Power Supply
12~36VDC,(typical 24VDC)
Output
4~20mA,0~5V,1~5V,0~10V
Compensation Temperature
0 ~10mH2O:0~60
10 ~200mH2O:-10~70
Zero Drift
±1.5%FS(within temperature compensation range)
Sensitivity Drift
±1.5%FS(within temperature compensation range)
Response Time
≤1ms(up to 90%FS)
IP Grade
IP68
Material
Junction box: Low content Cu-Al alloy
Probe: Stainless steel
Cable: Polyurethane cable
Medium
various medium which is compatible with SS304
Application
Static liquid level, liquid tank, sewage, industrial water, pool, Well, etc.(Recommend indoor application
LED Display Wireless Zigbee Water Level Sensor - ANKUX.COM

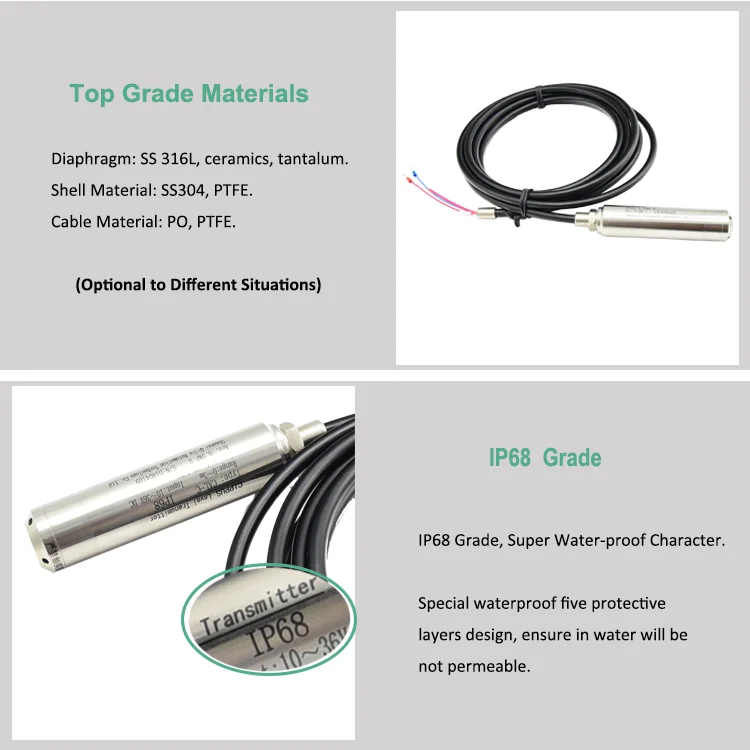

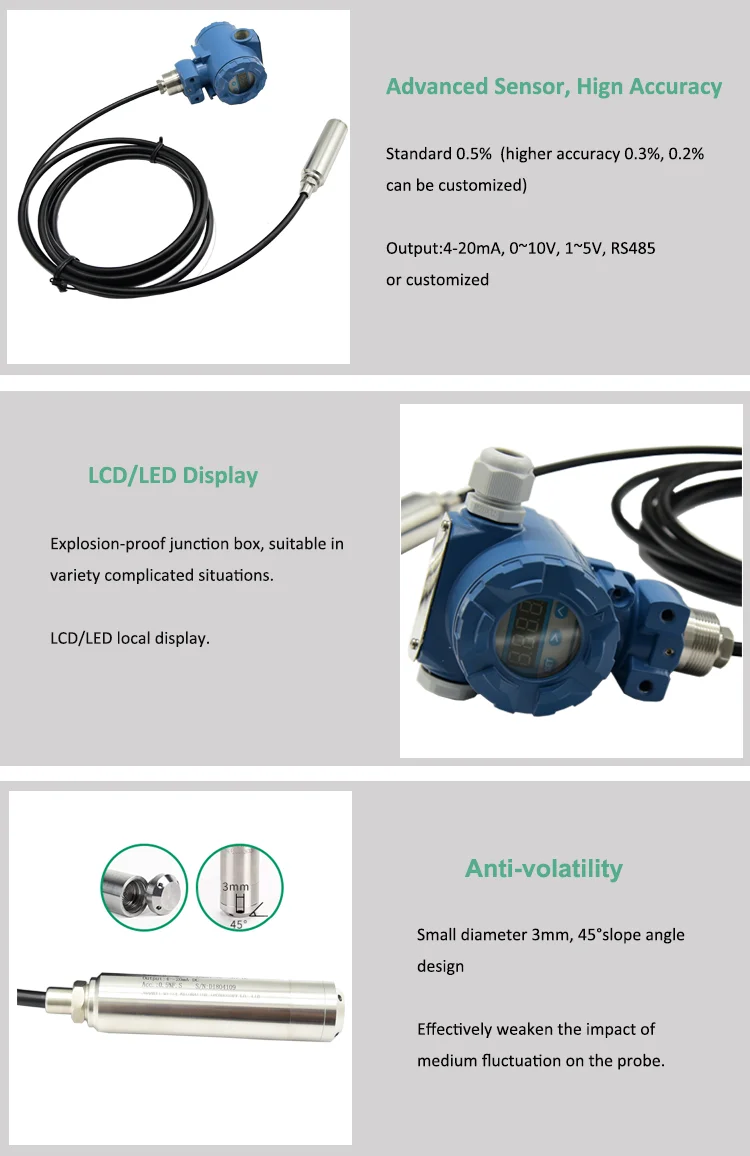

Detail Pictures
LED Display Wireless Zigbee Water Level Sensor - ANKUX.COM

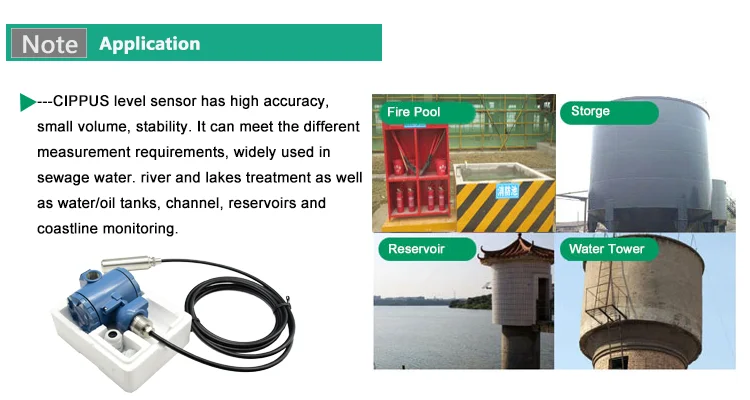

Product Application
LED Display Wireless Zigbee Water Level Sensor - ANKUX.COM

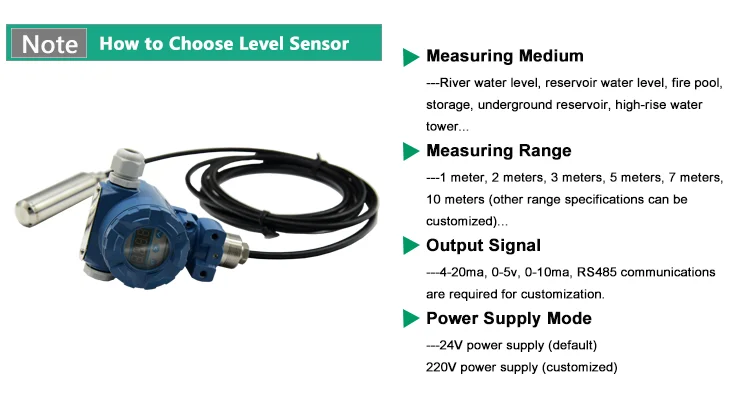

Buying Guides LED Display Wireless Zigbee Water Level Sensor - ANKUX.COM
