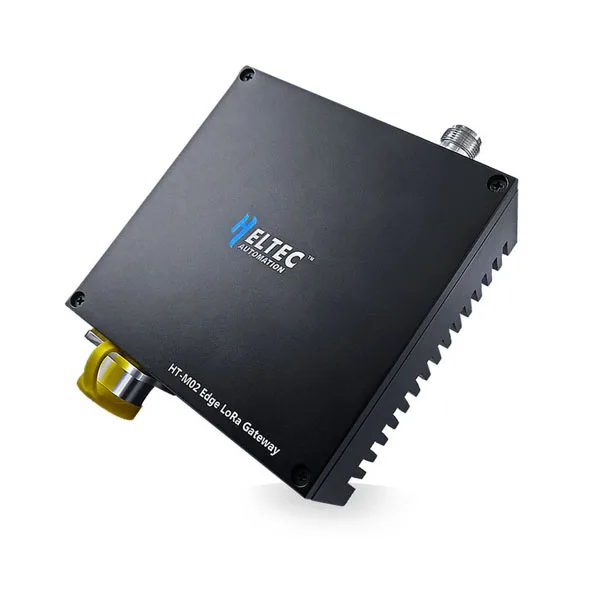

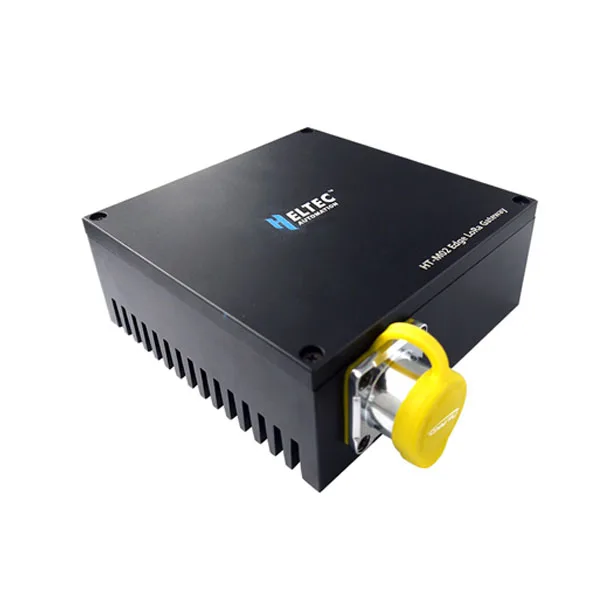

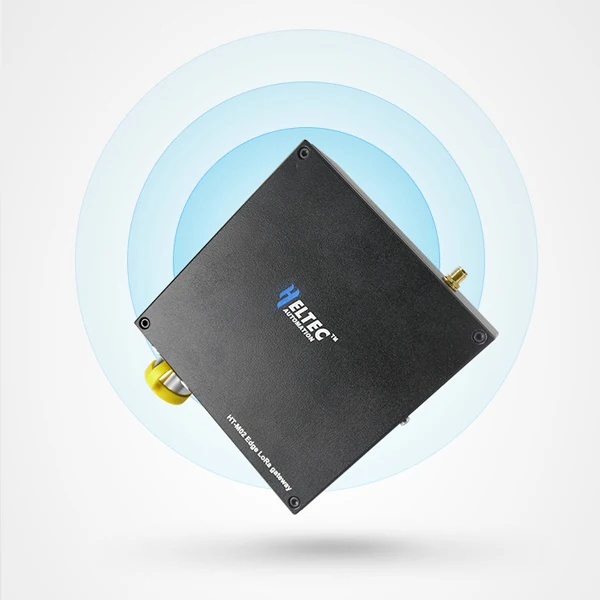

Edge Calculation LoRa Gateway
Integrated Linux operating systemFocus on industrial and outdoor application scenarios


IP67 Waterproofing

No Fan or Motor Heat Dissipation Structure

SX1301 Digital Baseband Chip

Dynamic Data-rate Adaptation (ADR)

SPI/USBInterface

Standard LoRaWAN Protocols

Integrated Linux operating system
Good openness, perfect built-in network and reliable security system


4.14

4.14 Kernel

9.8
Debian Stretch 9.8

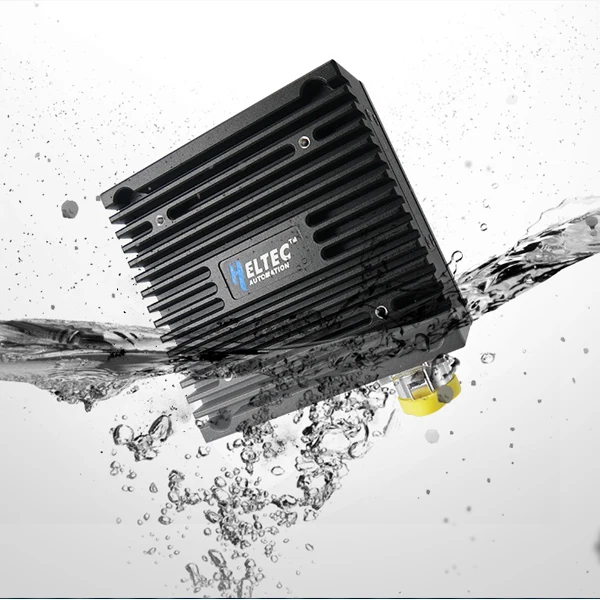

IP65 Waterproofing
Passed the water immersion test for half an hour
Closed design to avoid dust
IP6 AVOID DUST &
IP5 WATERPROOFING

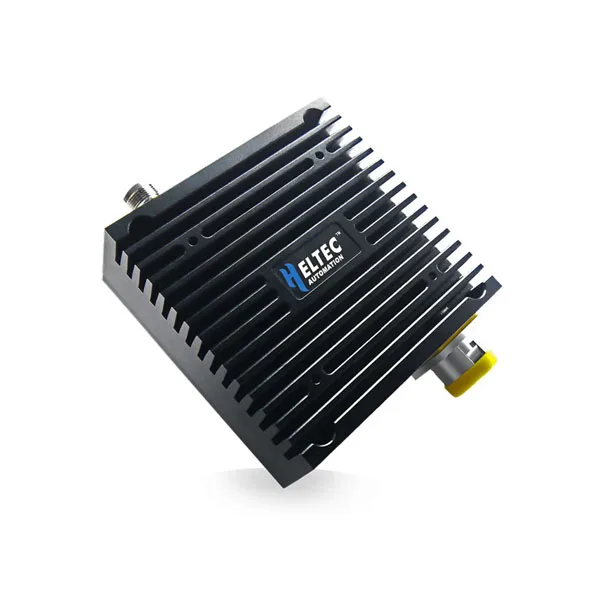

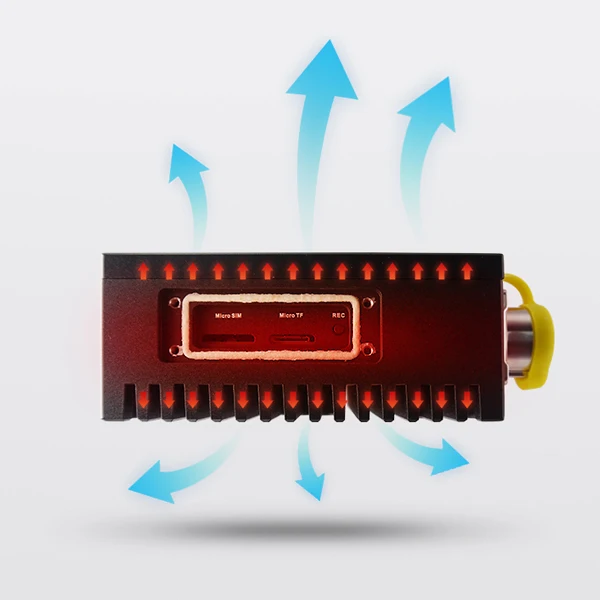

No Fan or Motor Heat Dissipation Structure

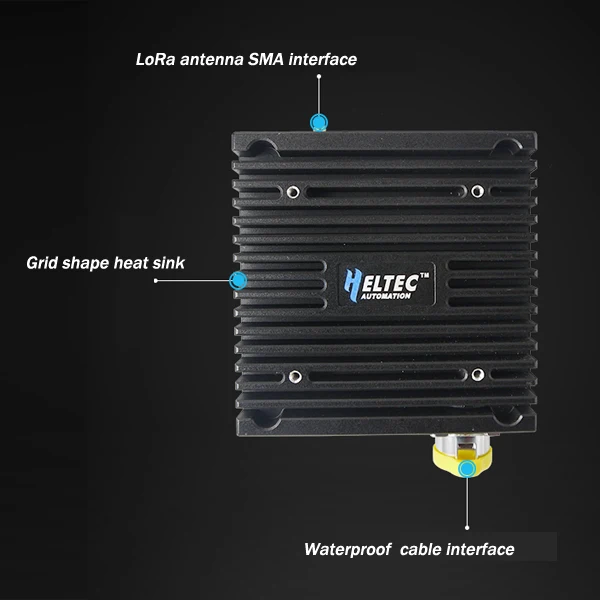

Through the unique heat conduction device to transfer heat to the aluminum housing, strengthen heat dissipation, make theoperation more stable

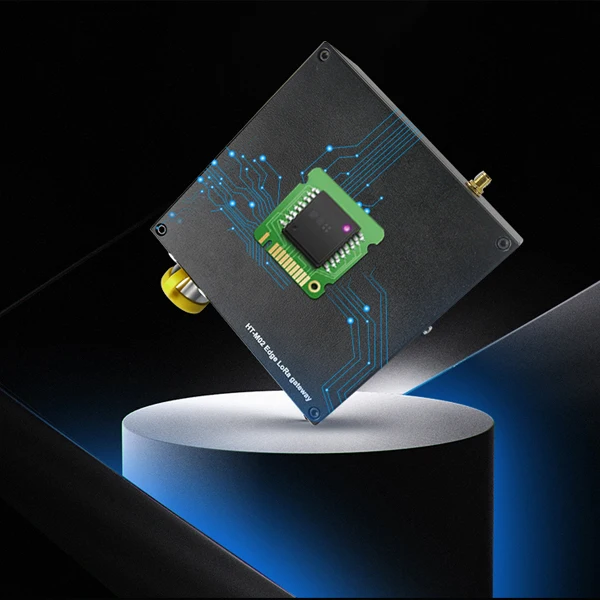

1-GHz Sitara™ ARM® Cortex®-A8 32‑Bit RISC Processor
Excellent operation speed and power efficiency
High performance and low cost
Supporting dual core technology

1GHzProcessing Frequency |32Bit RISC Processor | 512MB DDR3 | 4G eMMc
Support Standard LoRaWAN Protocols
Class A+Class B & Support FSK & -139dBm Sensitivity

①Integration of 49 LoRademodulators
②Integration of 1x (G) FSK demodulator
③10 programmable parallel demodulation paths
SX1257/SX1255 Chips
Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional

PoE+ AC Power Supply
PoE power supply or 110 / 220V AC power supply (110 / 220V AC power supply version use 4G upload LoRa data)

Professional for outdoor industrial scene
Designed for huge vibration, noise, dust, high temperature and other problems without fear of the sun, wind and rain

·Vibration ·Noise ·Dust ·High Temperature

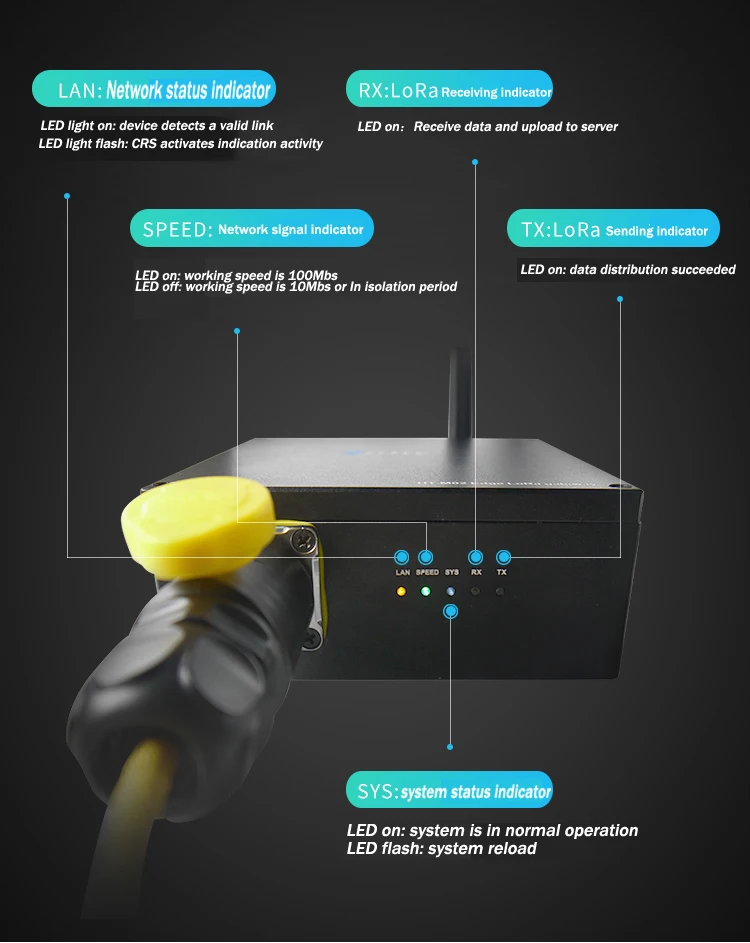

Product Infomation

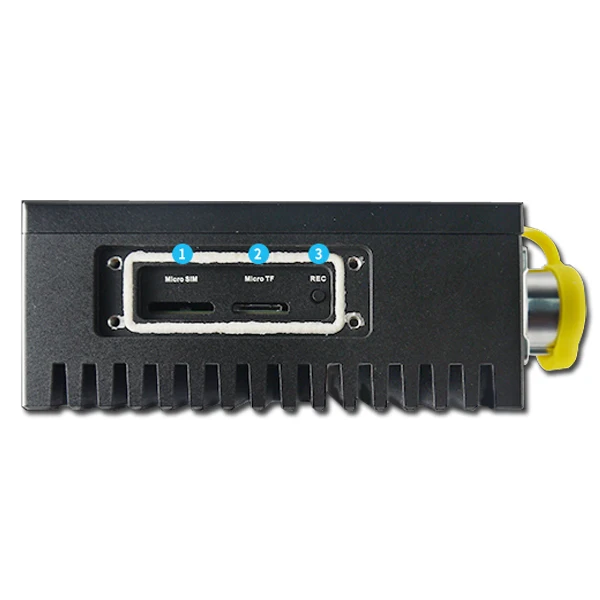

①Micro SIM: 4G card, only can use 4G version.
② Micro TF: insert TF card for system recovery.
③REC: before power on, press this button to enter the system recovery.

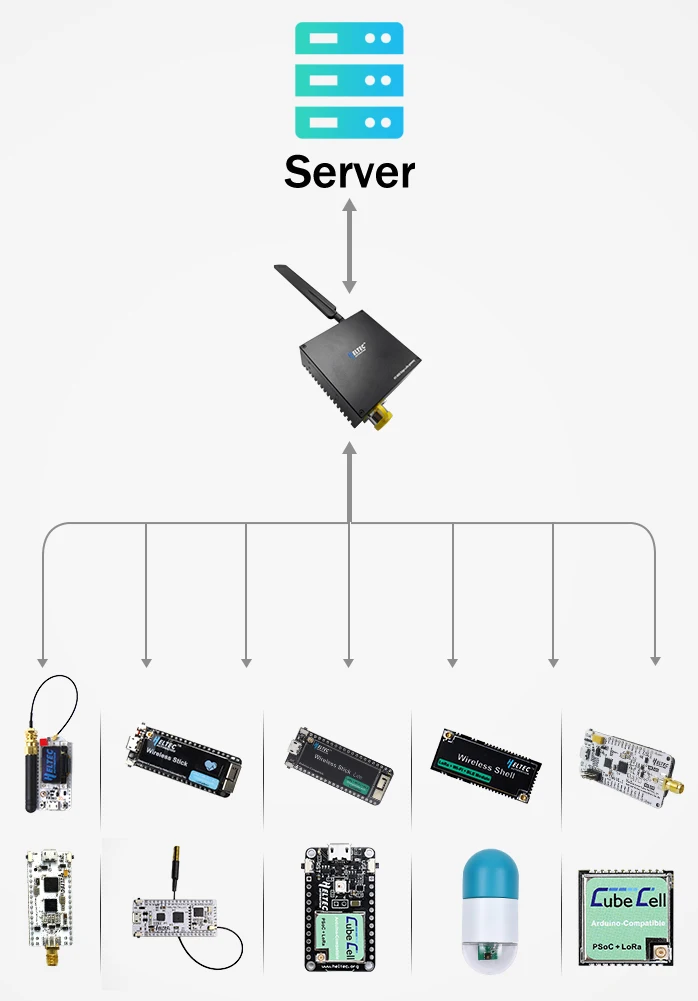

Connection Diagram

It can be networked with all series of LoRa node of our company or other manufacturers' equipment supporting standard LoRaWAN protocol.
Accessories

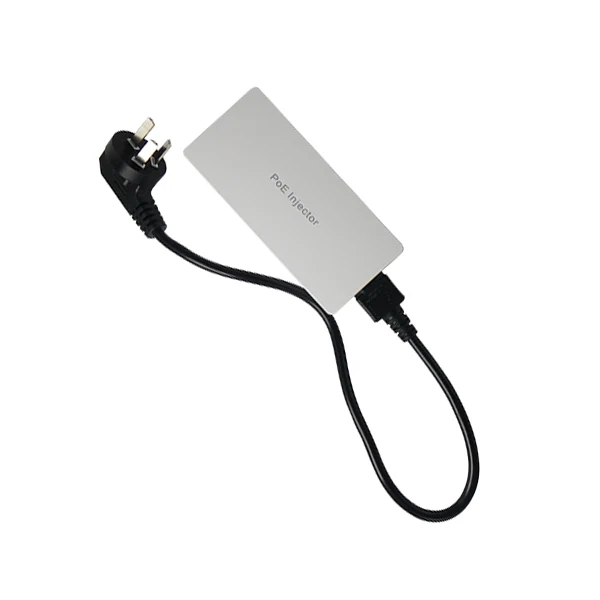

Tenda® PoE30G-AT PoE power supplier

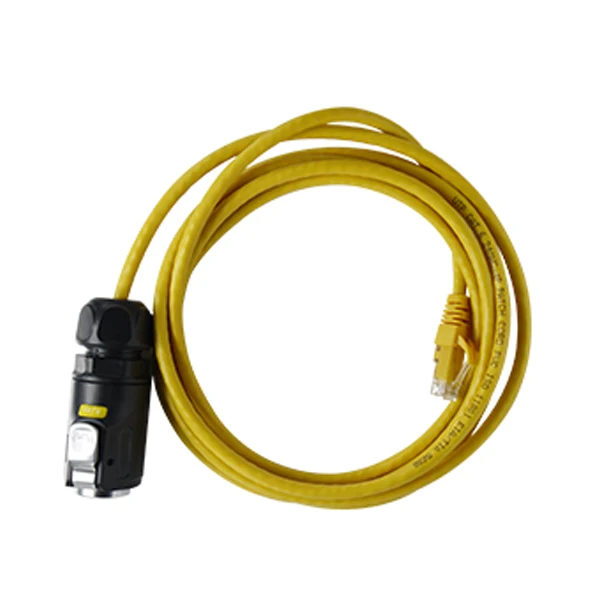

Waterproof RJ45 socket header

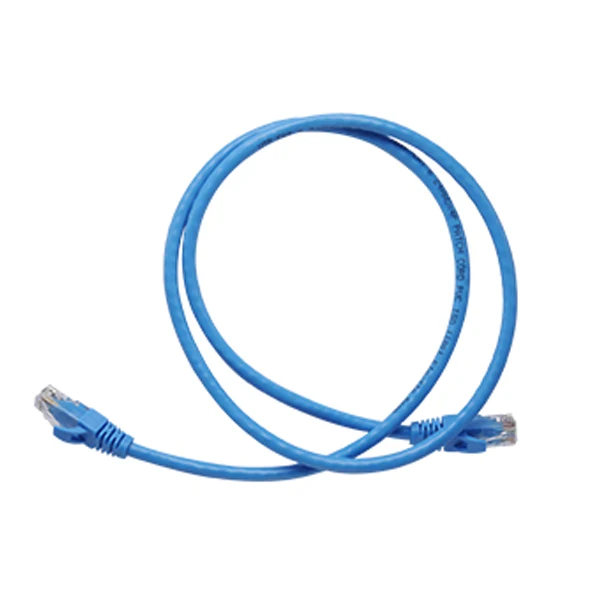

Network cable

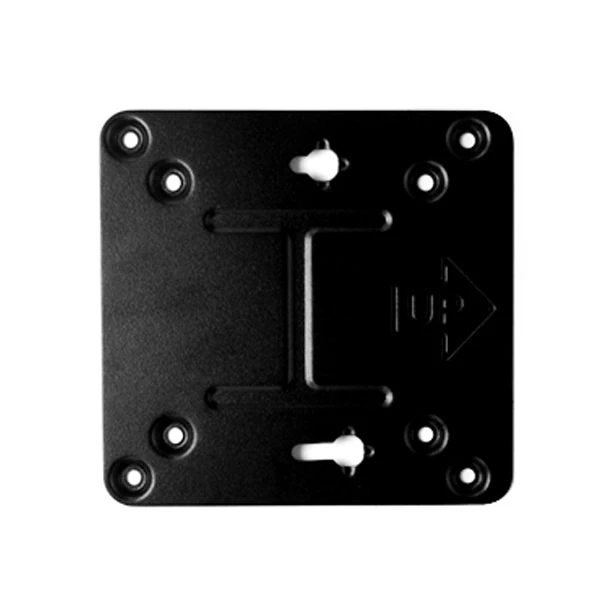

Wall hanger

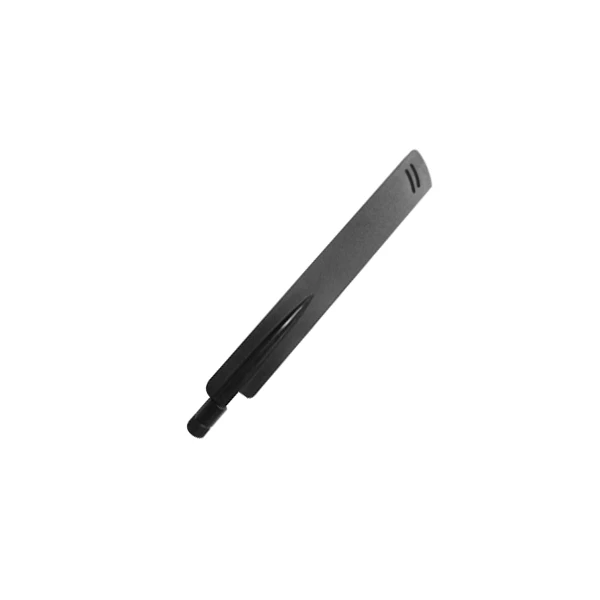

SMA High gain antenna

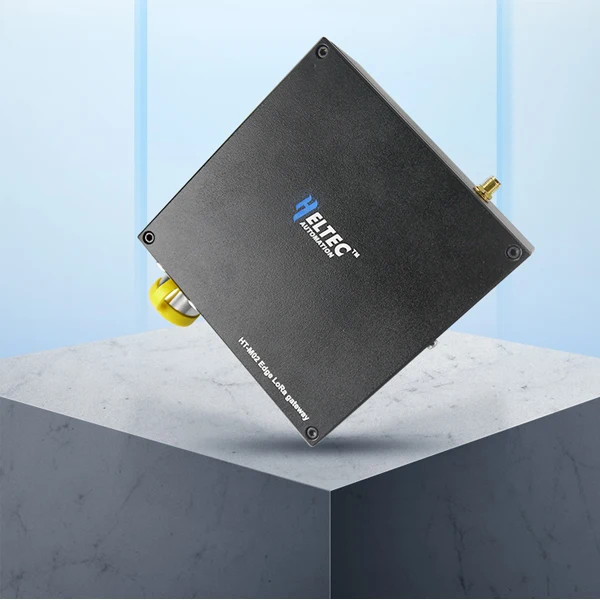

PRODUCT DISPLAY



DETAIL DATASHEET
