Top Internet of Things Devices smart home iot smoke alarm Main FeaturesZigbee Smoke Detector en14604 certified
1. Low consumption zigbee moudle.
2. Zigbee HA1.2 / Z-wave alliance protocol.
3. MINI appearance design.
4. Mobile phone remote mute function.
5. 85dB/3m alarm sound
6. low battery warning
7. Power: 3V Battery, 3 years use life Size:54* 54* 41.5mm
SpecificationsHome automation, lighting, appliances & more - Smart Home Smart smoke Alarm and fire safety systems
Power supply DC 3V(CR123A lithium battery)
Static current ≤10uA
Alarm current ≤60mA
Net working Zigbee / Z-wave
Sound alarm 85dB/3m
Detecting distance >70 (in the open area)
Working temperature -10-+50°C
Working humidity 95% RH
Dimension 60*60*49.2mm
Samrt iot sensor EN14604 approved Shield Photoelectric 10 year Smoke Alarm

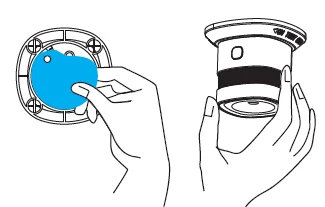

Installation1. Anticlockwisely rotating smart home smoke alarm from the base, remove the battery insulation piece to make smart smoke alarm on power.

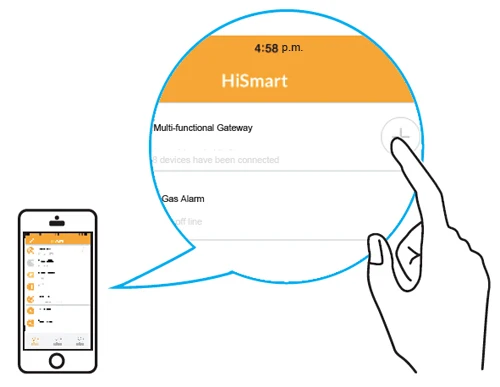

2. Click "Add device" on the APP, enter networking stage;

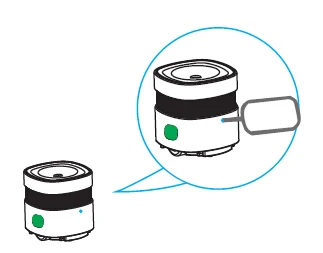

3. According to the tips on APP, quickly press networking button three times, when green light flash quickly, join the networking successfully and APP show tips. ( The bule point in this picture is the "networking button", green circle in this picture is the position for indicator light.)

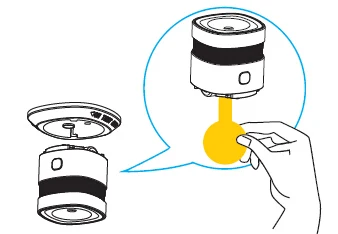

4. Remove the double-sided adhesive back membrane, install the smart home smoke alarm into the base.
5. Press the test button (3 seconds) to test the detector. Suggest test weekly.
APP Interface
