Product Paramenters

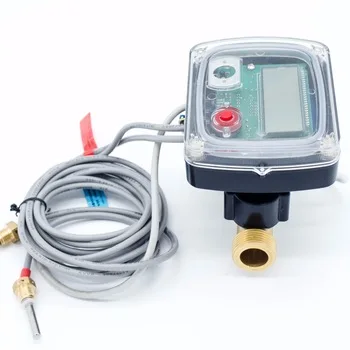

It is a mechatronics product based on microprocessor and high precision sensor. Compared with household meters, such as water meters, electricity meters and gas meters, which have been widely used in the construction industry in the past, they have more complex design and higher technical content. Ultrasonic heat meter is a kind of high-tech product including mechanical, electronic and information technology, which has been successfully applied in many fields

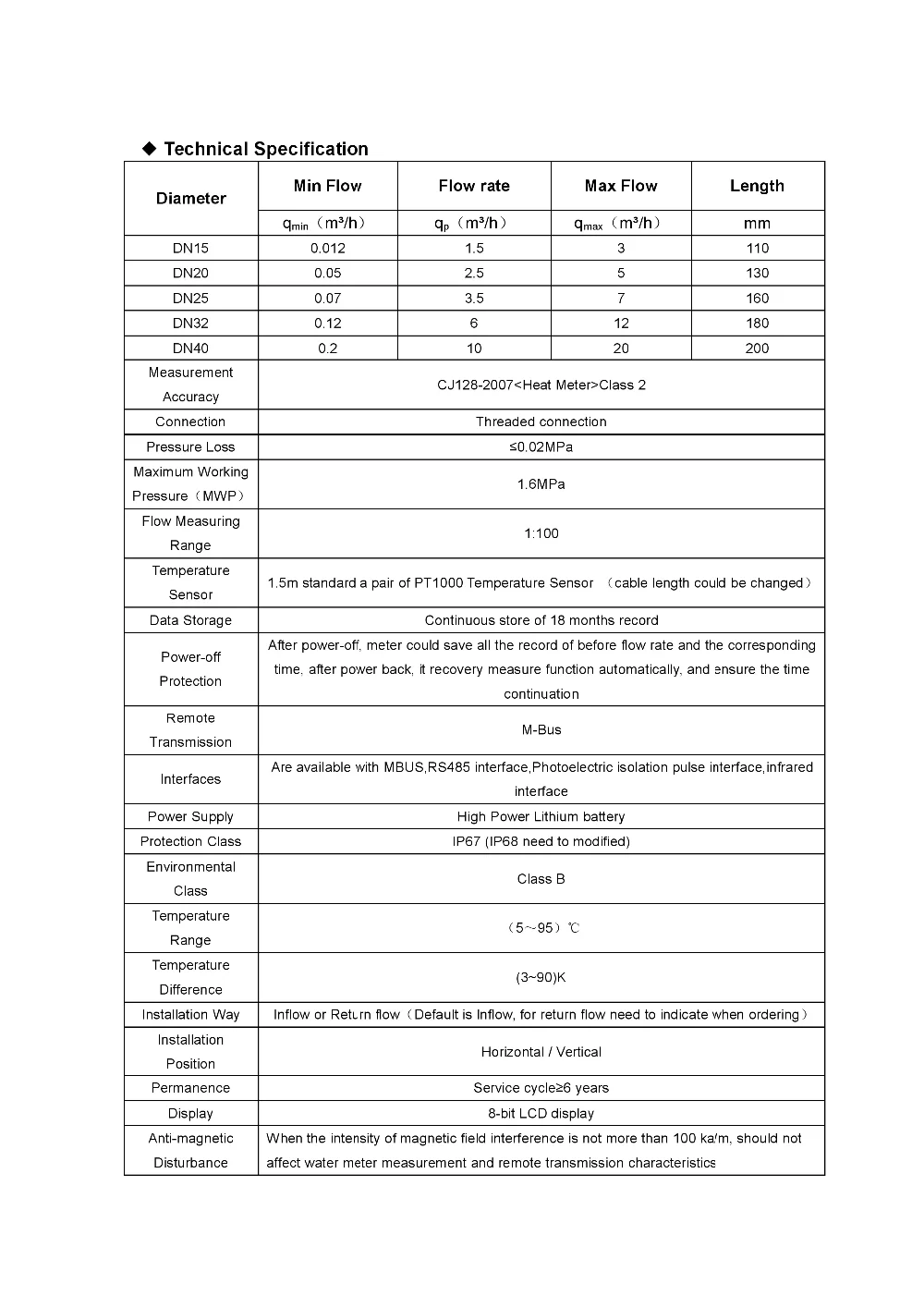

Diameter
Min flow
Flow rate
Max flow
Length
qmin(m³/h)
qp(m³/h)
qmax(m³/h)
mm
DN15
0.012
1.5
3
110
DN20
0.05
2.5
5
130
DN25
0.07
3.5
7
160
DN32
0.12
6
12
180
DN40
0.2
10
20
200

Applicaion:Using the Product calculation Formula to calculate the Heat obtained by the Heat Exchange system.
Not only can measure heat, but also can measure cold capacity, but also cold heat can be measured at the same time.

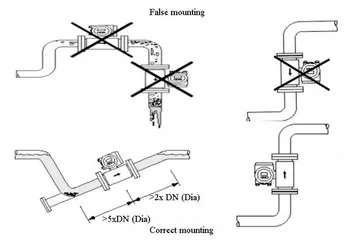

Can be installed in horizontal, vertical direction.


Feature

ONE
Convenient maintenance
TWO
Low cost of comprehensive
THREE
Long life
FOUR
Good reliability of measurement
FIVE
No blockage, no wear
