Technical Parameters
Wireless Zigbee 2.4G ISM global FOC frequency band
Antenna N head port external antenna
Hardware Network port 1 wired port RJ45/1 4G module/1 wired RS485
Nower supply 100VAC~240VAC
Power consumption
static 2W Transmitting & receiving are closed,4G connected
average 4W 4G connected, ZigBee working
peak 10W all modules work at full capacity
Work environment
working temperature -40~85humidity 10%~90%RH no condensation
Structure
External dimension
main body length 20cm width 18cm height 7cm
4G antenna length 18.5cm
ZigBee antenna length 30cm
Install
provide install suite

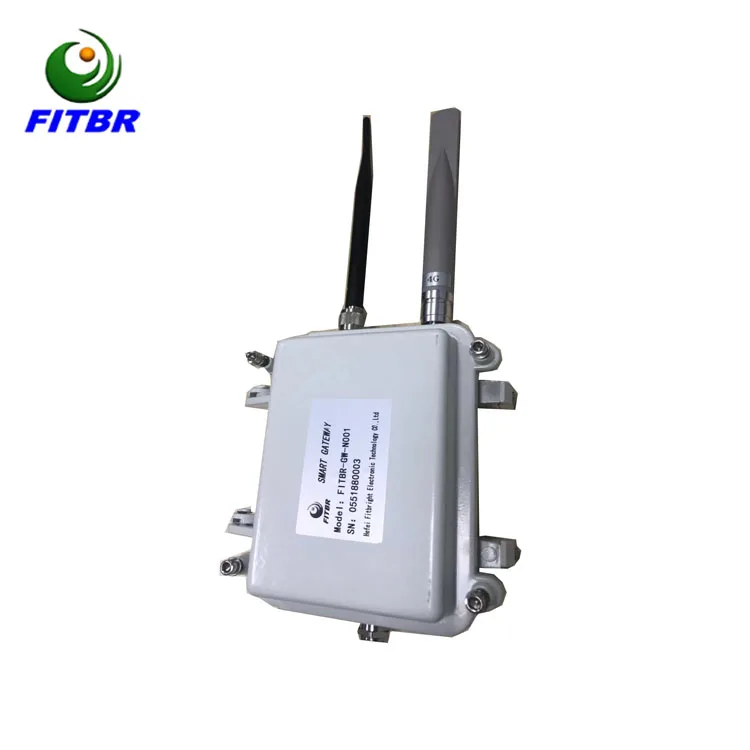

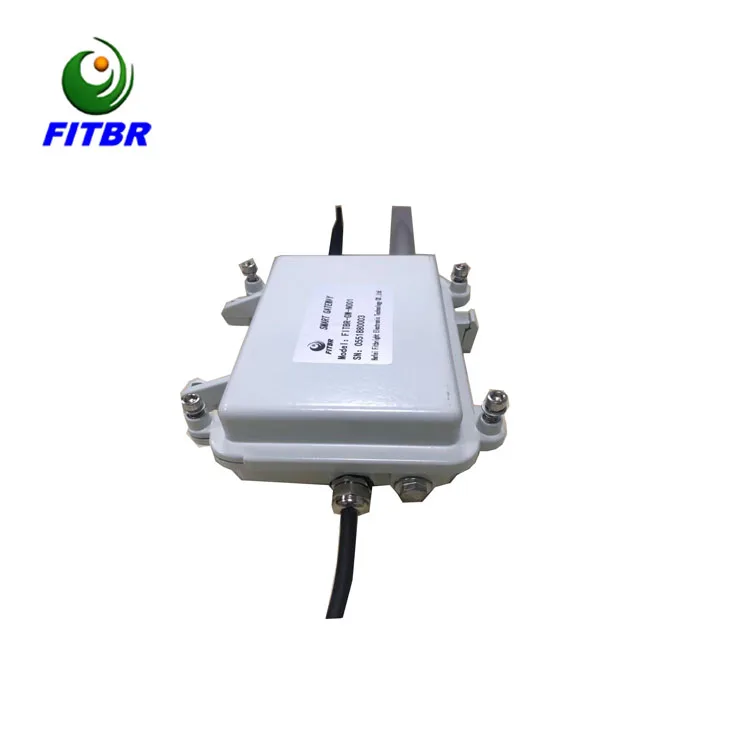

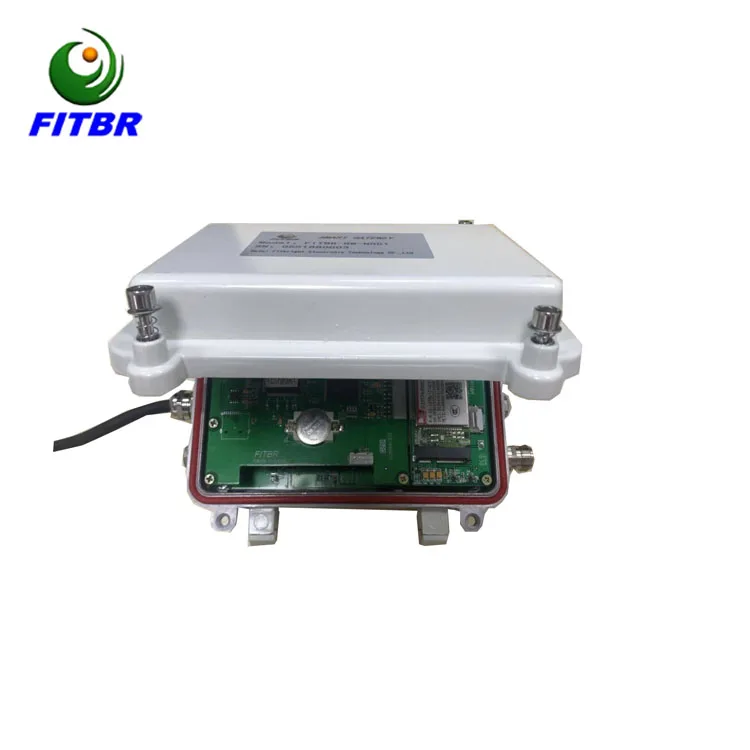

Zigbee gatewayThe FITBR-G-02 Zigbee gateway is one of the most important components ofwhich Hefei Fitbright developed professional Outdoor Lighting Control System.It’s made up ofcombinations of 2.4GZigbee wireless communication module,2G/3G/4G communication module, and ARM chip.
Product Overview
Coordinated with professional hardware&software design,make it has following advantages:powerful functions;easy carry out;wiring free;working reliable;easy maintain and free deployment.It is specially developed high-performance energy-saving product for smart Street lighting Control.2G/3G/4GTDD-LTE B38/B39/B40/B41FDD-LTE B1/B3/B8TD-SCDMA B34/B39WCDMA/HSDPA/HSPA+ B1/B8CDMA 1X/EVDO BC0GSM/GPRS/EDGE 900/1800 MHz
Product performance1.Real time data acquisition2.Dynamic data upload3.Real time fault alarm4.Save information of power lose5.Off-line automatic operation6.Intelligent management &controlCertificationsSoftware platformExhibition
