WSFL07

led street light netherlands
PRODUCT INTRODUCTION

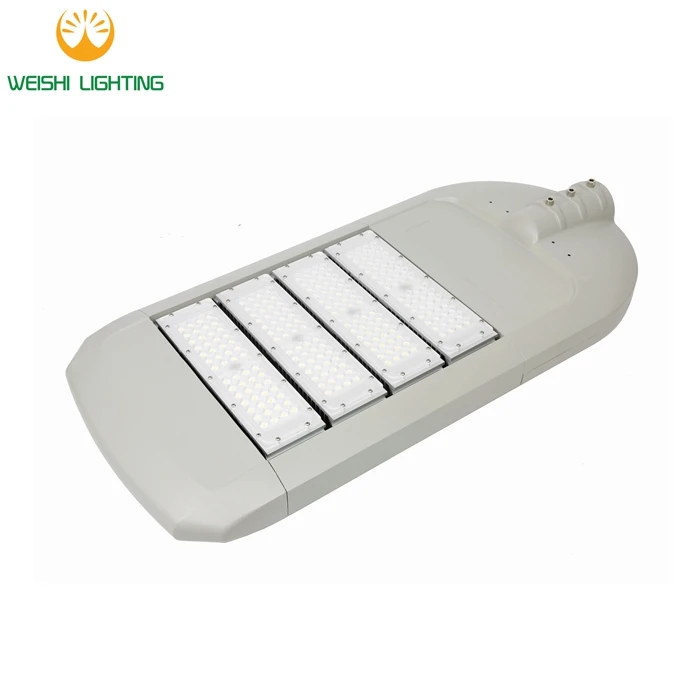

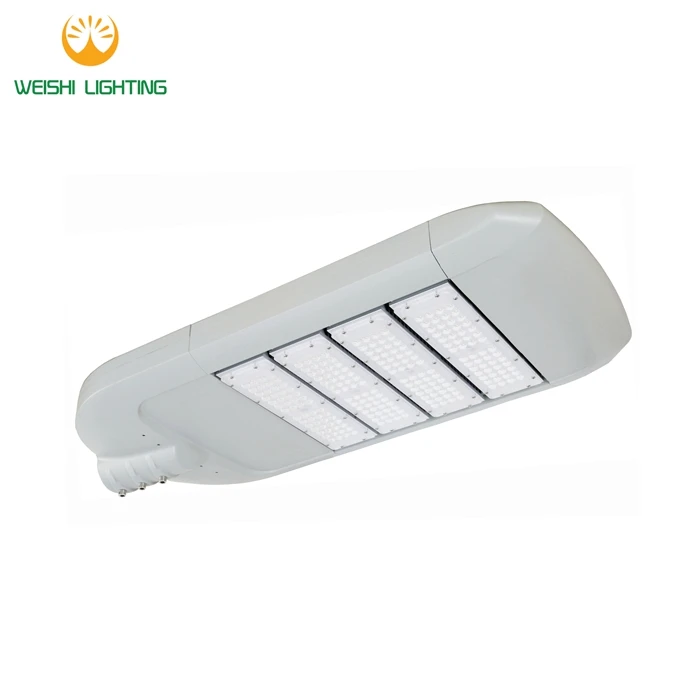

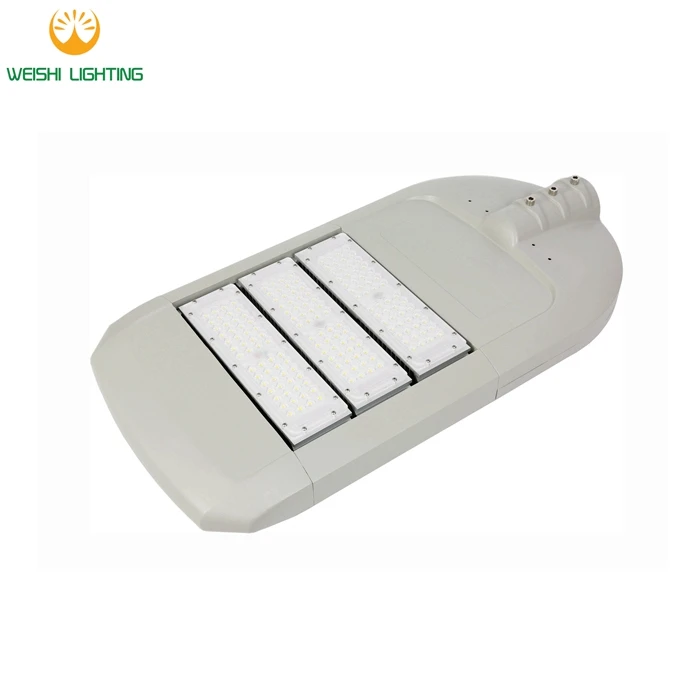

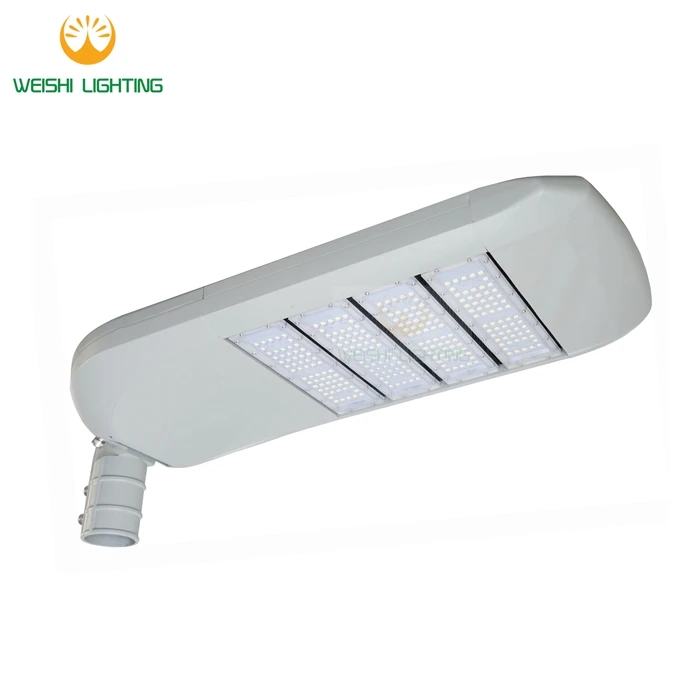

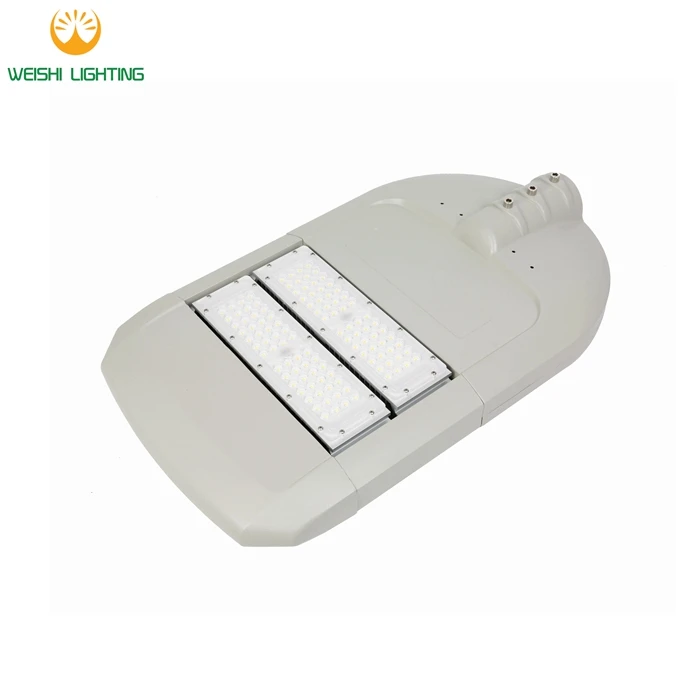

This LED street light has the most advanced design for outdoor road and highway lighting. The modular design creates air flow to reduce the working temperature, and higher flexibility for wider power options. It adopts the top quality and high efficacy LEDs and LED drivers to provide extra long life and high stability for the lamp. The back board creates production for the LED modules and cables against dust and UV radiation. It is ideal to be used for main city streets and high ways.led street light netherlands
led street light netherlands
MODEL SERIES

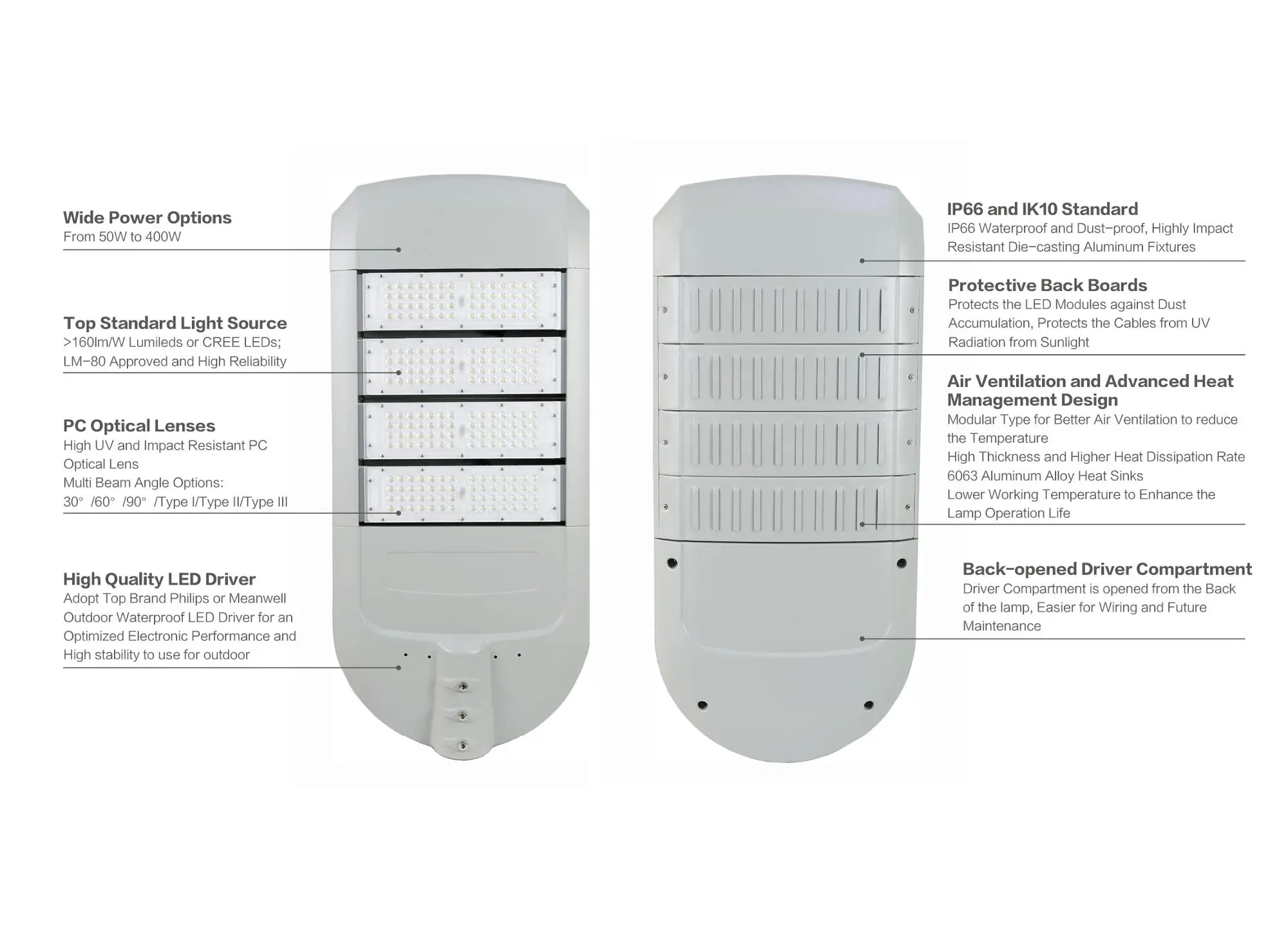

led street light netherlandsFEATURES


led street light netherlands
Top Standard CREE or Lumileds LEDs
• > 160lm/W
•125,000 hours life
• > 75Ra
• High Temperature Tolerance• Better Light Maintenance
• Better Color Consistency
• Better Outdoor Stability
led street light netherlands
High Thickness Aluminum Alloy Heat Sink• Fast Heat Dissipation Rate Compared with Die casting Aluminum
• High Thickness Materials
• Modular Design with Air Flow to Reduce Temperature


led street light netherlands
PC Optical Lenses• PC Material with High UV and Impact Resistance
• Multi Beam Angle Options
• High Transparency and High Efficiency
led street light netherlands

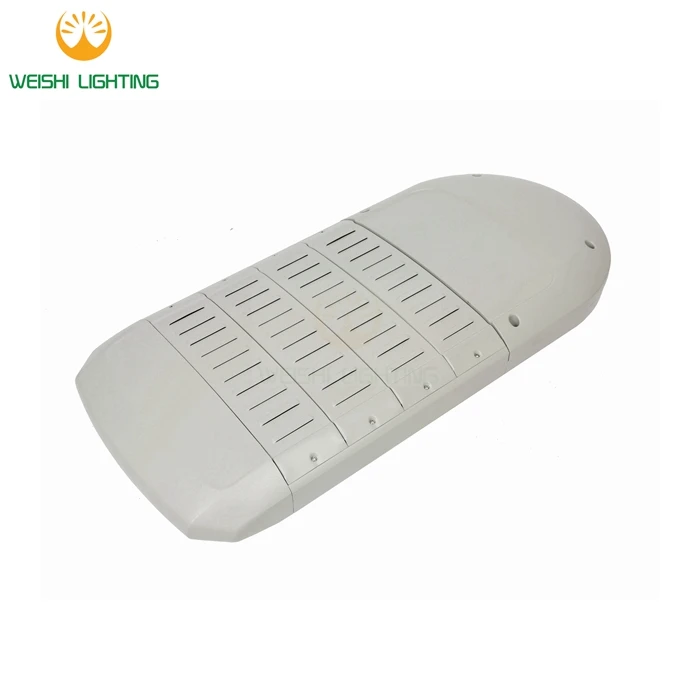

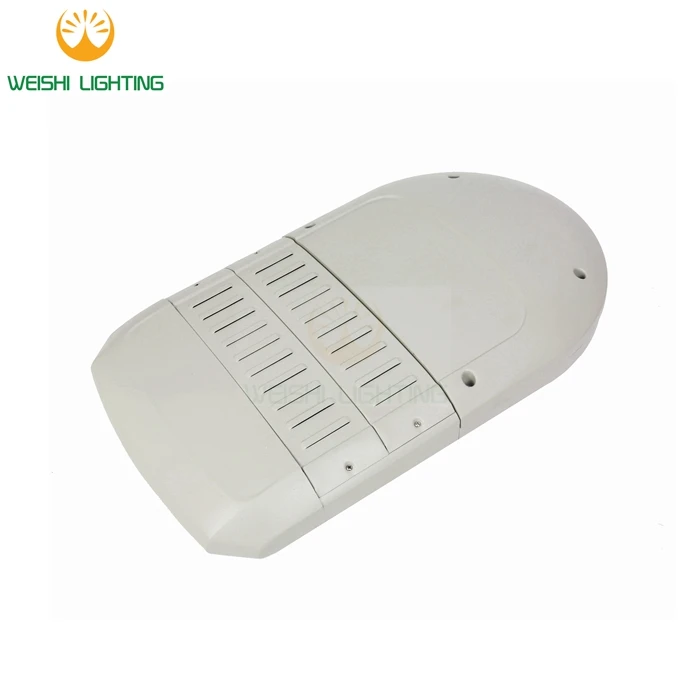

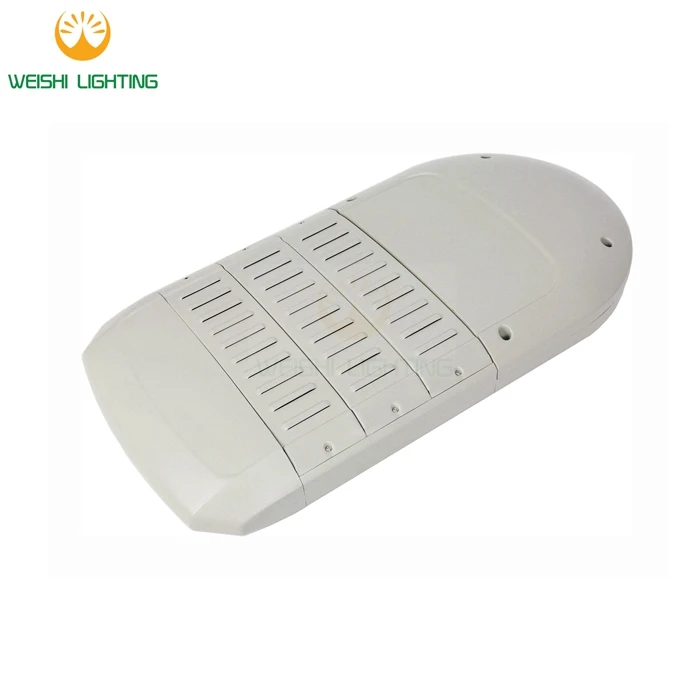

Protective Back Board
• Better Dust Proof and UV Protection• Air Ventilation Design to Reduce the Fixture Temperature• Higher Impact Resistent Rate


led street light netherlands
IP67 Connector and Top Standard Cables• Easy Connection IP67 Waterproof Connectors• Top Standard TUV Approved Anti-aging Rubber Cable Especially for Outdoor Usage
• Rubber Material for Higher Temperature Performance
• Top Standard Isolation Performance
led street light netherlands
Fine Surface Treatment and Compact Design
• Smooth Treatment and Compact Design
• Powder Coating Fixtures and Oxidized Heat Sinks for High Corrosion Resistance
• Water Leakage Design to Withstand Heavy Rainfall


led street light netherlands

Top Quality LED Driver• Guarantee a Long Operation Life• 6KV Surge Protection• IP67 Waterproof
led street light netherlands

Back Opened Driver Compartment

• Driver Compartment is Opended from the Back of the Lamp
• Easier for Installation, Wiring and Future Maintenence


led street light netherlands

Multi Control Options• Wireless Intellectual Control with Grid, Zigbee or Lora System
• Photocell and Motion Sensor Options
• High Stability Solutions
• On-site Technical Instructions
led street light netherlands
Professional Packaging• Foam Protection to Withstand Harsh Transportation and Impact
• Carton and Pallet with Foam and Cling Wrap to Withstand Impact, High Humidity in Containers, and Rainy Weather
• To Guarantee an Intact Condition when Receiving the Goods

led street light netherlands
SPECIFICATIONS
LED Efficacy: >160lm/W CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500KCRI: ≥75RaLED Life: >125,000hrs
Beam Angle: 30/60/90/Type I/Type III/Type IIIPF: >0.97 Power SupplyEfficiency: >92%
THDi: ≤10%
Surge Protection: 6KV / 10KV
Control: 1-10V Dimming , Photocell, Dali Dimming , Intellectual Control Optional
Material: Aluminum and PC Optical Lens
Color / Finish: Light Grey / Power Coating and Oxidization
Protection Grade: IP66
IK Grade: IK10
Warranty: 5 years
MODEL NO.
WSST08-2
WSST08-3
WSST08-4
WSST08-5
WSST08-6
WSST08-7
WATTAGE
100W
150W
200W
240W
300W
350W
ALTERNATIVE POWER RANGE
80-100W
120-150W
160W-200W
200-240W
240-300W
280-350W
INPUT VOLTAGE
100 - 305V AC
LEDs
CREE or Lumileds 3030 LEDs
LED QTY
128pcs
192pcs
256pcs
320pcs
384pcs
448pcs
DIMENSIONS
610*350*140
695*350*140
780*350*140
865*350*140
950*350*140
1035*350*140
NET WEIGHT
4.8kg
6.2kg
7.5kg
8.8kg
9.9kg
11.0kg
PROTECTION GRADE
IP66
led street light netherlands
LIGHT DISTRIBUTION

led street light netherlands
APPLICATIONS
High ways, main roads, secondary roads, passenger paths, city squares, car parks, gardens, factories yards and etc.
