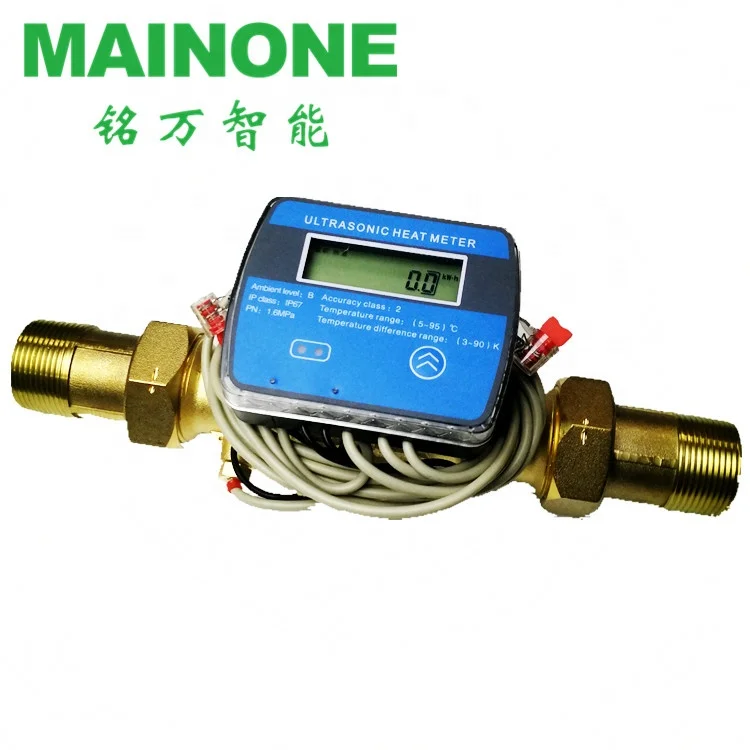

Ultrasonic heat meter

Using microprocessor technology and micro-power technology, all energy consumption is calculated intelligently;
With dual measurement functions of heat and cold metering;
It can display various data required for the heat meter, and all the data are showed by English;
With power-off data protection and data recovery;
With error self-test and alarm function;
Has a low battery alert function;
Has 18 months of data storage and query function;
Infrared photoelectric data reading function;
Data communication interface: M-BUS, RS485 for data remote transmission and centralized control;
The integrator section can be removed for easy reading of values on site.
Measuring the actual heat consumption of the heat supplying facilities users in buildings.
Specifications:
Show topic
The contents
Unit
Precision
Remark
DN15-32
DN40
Cold
Cold
Kwh
1
1
Power
Cold Heat
Kw
0.001
0.001
Inlet temp.
T1
" °"
0.01
0.01
Outlet temp.
T2
" °"
0.01
0.01
Inlet Outlet temp.difference
ΔT
" °"
0.01
0.01
Instaneous flow
Flow
m3/h
0.001
0.001
Flow volume
Water
m3
0.01
0.01
Run time
h
1
1
Current date
YY-MM-DD
Effective working hours
Heat
Heat
Kwh
1
1
Into the next cycle

Products are divided into economical, practical and waterproof to meet the needs of different users. Please specify the piping design flow and installation position (inlet or outlet water) when purchasing.
Product installation diagram

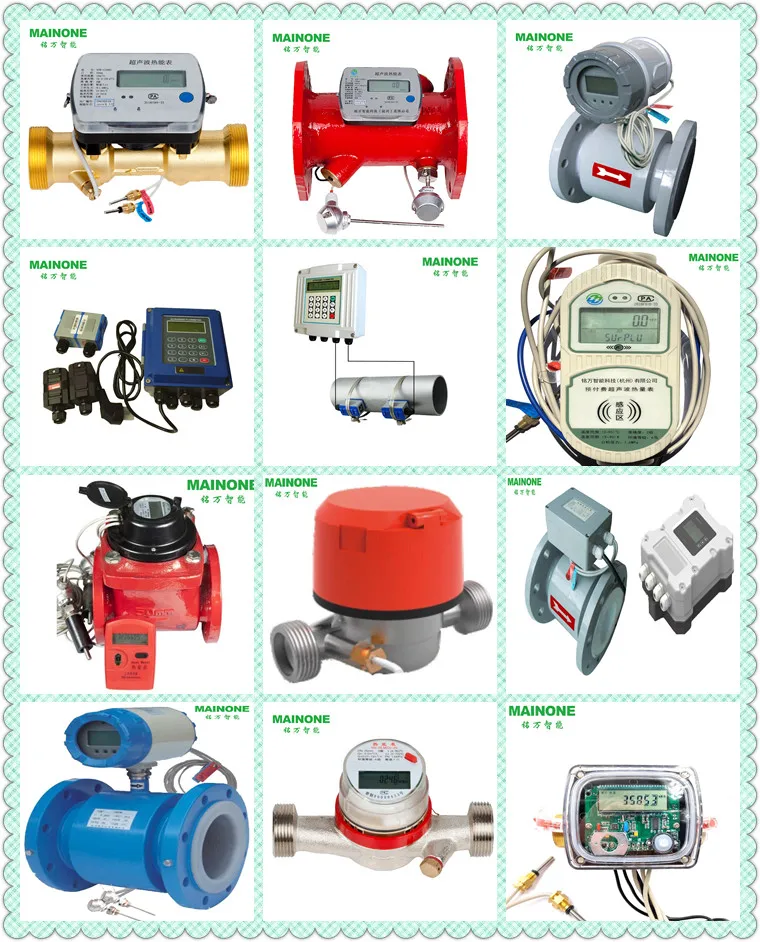

Provide a variety of flow meters, heat meters

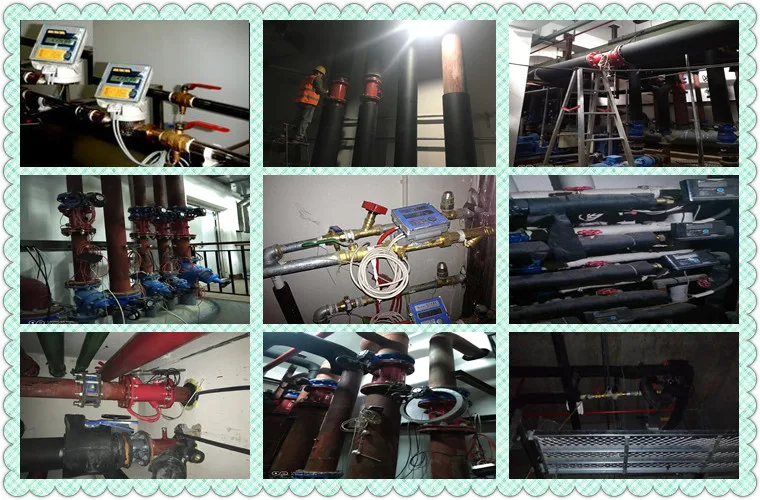

Ultrasonic heat meter application
