I. Introduction

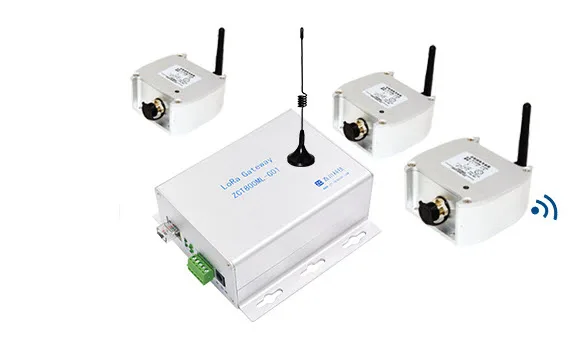

The ZCT800ML-G01 wireless Lora gateway is based on LoRa wireless transmission technology developed by Shanghai ZC Sensor. The gateway can collect and store the data from inclinometers operating as nodes within a network. It can do this automatically as a stand-alone device, making the mini wireless LoRa monitoring system convenient and easy to use. The gateway hardware supports both RS485 and Ethernet communications, using Modbus, ASSCII, HTTP & FTP protocols.
II. Special Features
0.5W Industrial wireless LoRa, Transmission distance up to 5~10KmWireless operating frequency:433MHz Automatic netRS485 & Ethernet ports

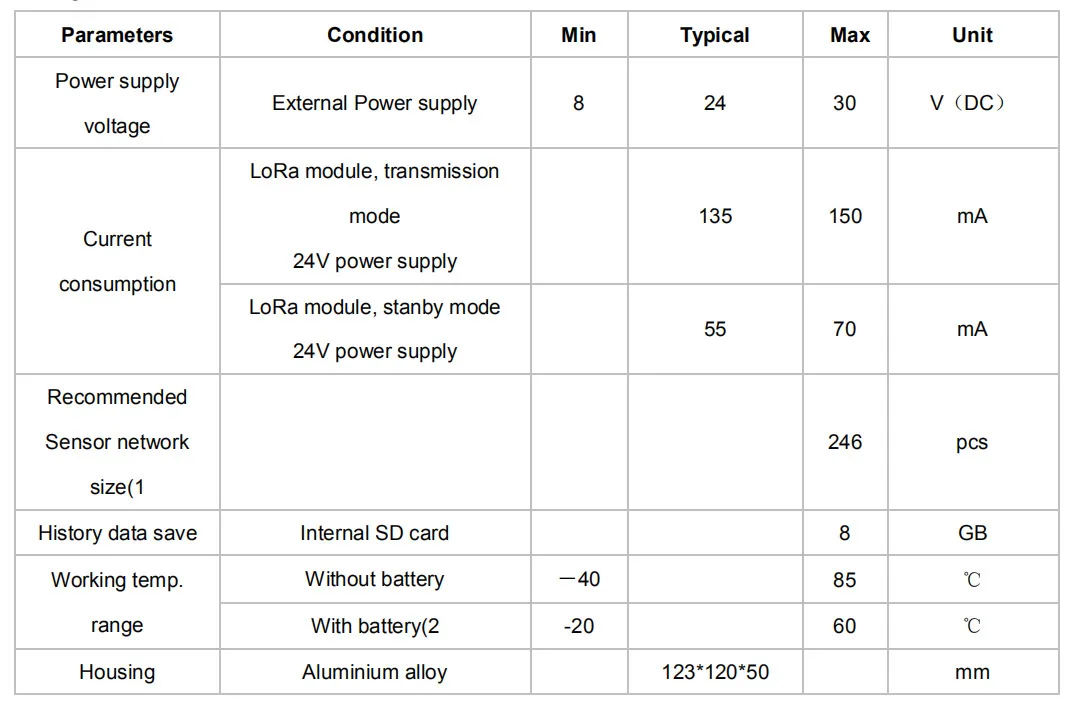

Product Paramenters

Detailed Images


1: ZC LoRa Inclination Sensor Joins European A2A Smart City Deployment Plan

2: The devlopment of A2A Smart City uses the ZC LoRa inclination sensors
Exterior Measurements:

Applications
The key applications of IoT sensors are:
* Wireless tilt monitoring of ancient buildings
* Tilt monitoring of dam/ bridges
* Tilt monitoring of light poles and billboards for Smart Cities
* Tilt monitoring of manhole covers
* Shelf safety monitoring
1. Use of LoRa Inclinometer Sensor ZCT800ML-S215 for Ancient Building Saint Mary's Cathedral Mornitoring

2. Use for Subway Monitoring in Singapore

Packing & Delivery
Each sensor is packed by a bubble bag, then put each two sensors into a 3-layer catron box., Finally, all sensors are packed by a big carton box with buffer sponge.
