Specificatin-LD100H5

Model: ZGSM-LD100H5
Power
100w
Input voltage
90-305VAC
Power Factor
>0.95
CRI
70/80
Rating
IK10,IP66
Efficiency
up to 160lm/w
Lumens
11000lm-16000lm
Lifetime
L70> 100,000hours

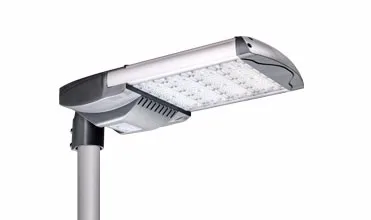

Description-H STREET

High Efficacy LED Source
ZGSM H series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.

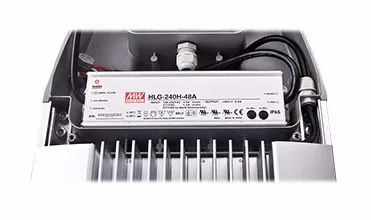

High-end LED Driver
High-end MeanWell HLG Series Flicker freeLED driver
Optimal stabilityperformance and lifespan.

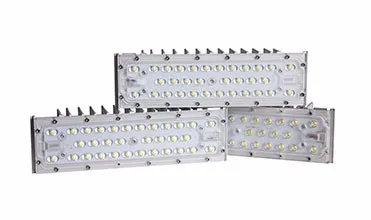

Flexible Modules Design
Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.
Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP67 Protection, adapt to any weather conditions.

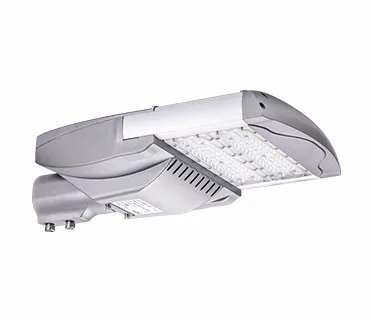

Post Top or Side Entry Mount
The H Series LED Street Light can both support vertical post topmount and horizontal side entry mount. and the installation angle can be adjusted 0-15 degrees

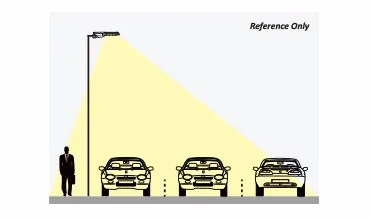

Variety Light Distribution
ZGSM provides different light distribution lens for the H Series street light to achieve best lighting effect in different applications.
follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III and Type V.

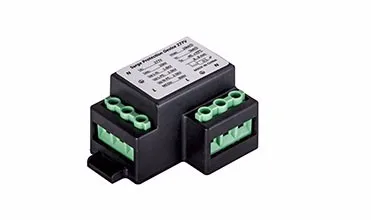

Surge Protection Device
ZGSM brand TUV approved 10KV surge protection device is thestandard configuration in all of our LED Street Light.

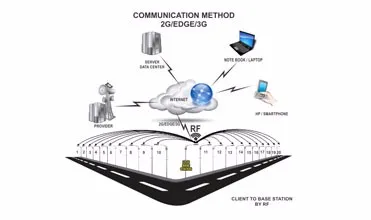

Remote Smart Control System
ZGSM provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.
