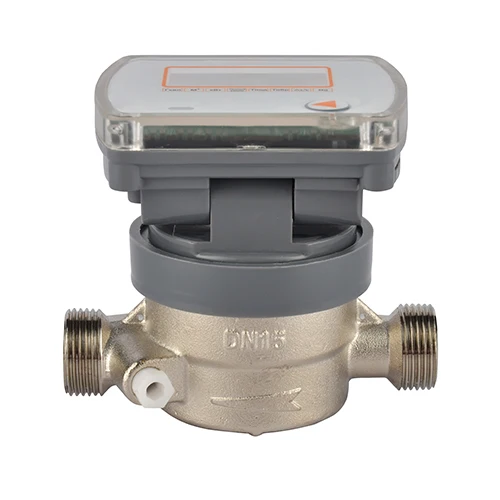

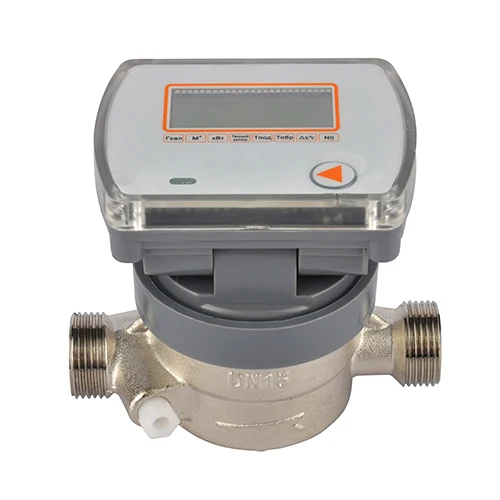

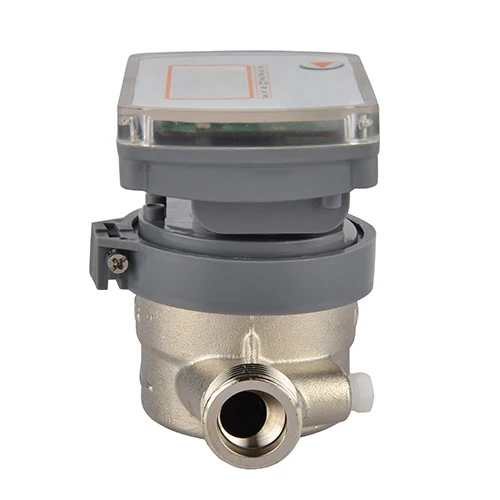

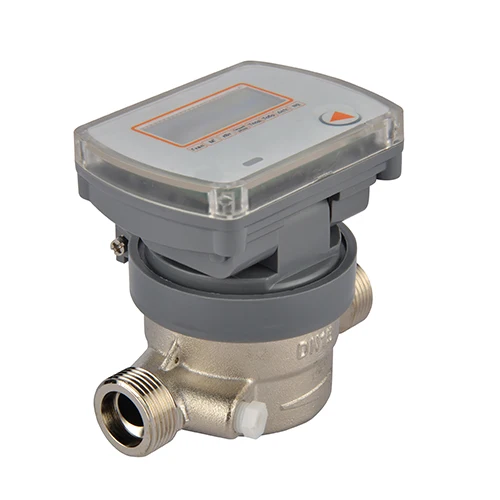

household mechanical flow meter with lorawan, M_BUS or RS485 for option
Thismanual describes the operation, characteristics and performance of the mechanical heat meters.
how the installation was done.
heating / cooling systems using water for energy,
the measuring tool used to measure the total amount of energy consumed and the amount of water.
mechanical heat meter contains 2 temperature sensors, flow meter and calculator unit.
mechanical heat meter with the communication feature with M-BUS protocol.
Invoice, warranty replaces. It is guaranteed for 5 years from the date of invoice.
Connection Female 1 "
Sensor Cable 1.5 m
Flow Measurement Range 0,05 - 5,0 m3 / h
Temperature Measurement Range 4 - 95 C
Temperature Between 3 - 75 C
Maximum Pressure 16 Bar
Level of accuracy 3
Service Class A
Temperature Sensor Type PT1000 platinum
Mounting Location Departure or Return
Mounting Shape Horizontal or Vertical
Displayed digit is 8 digits
Battery life 6 years
M-BUS There
Application Standard CE and EN 1434-3
