Introduction Our ultrasonic water meter can be customized to be smart metering solutions. By combining the newest ultrasonic technology with remote reading, advanced pressure and high end-user involvement, a full customized product portfolio that covers the water utilitys core tasks while securing the highest level of control, efficiency and flexibility on the market. Hurricane could deliver solutions. From individual meters and remote reading systems to fully automated service solutions.
BrIef Introduction
High Accuracy
Intelligent Design
Measuring Excessive Consumption & Wasting Water
Long Lifetime
Little Maintenance
Many Types Of Communication
Features:1. Metering accuracy: drip metering, precise measurement, wide dynamic range, initial flow is small, can be accurate to 0.002 m3 / h.
2. No mechanical wear: electronic measurement, no moving parts, protection class IP68, can have normal operation underwater for a long time.
3.Durable and good material: 6mm tempered glass, the shell adopts automotive grade engineering plastic (anti-ultraviolet, anti-aging, anti-bad weather), the key components made of pure metal material to ensure that the product strong and reliable
4.Automatic meter reading: meter reading cloud services, intelligent management, intelligent detection of explosion, automatic valve closure
5. LoRaWAN wireless transmission, one Gateway can received the flowmeter data of over 3000 sets water meters

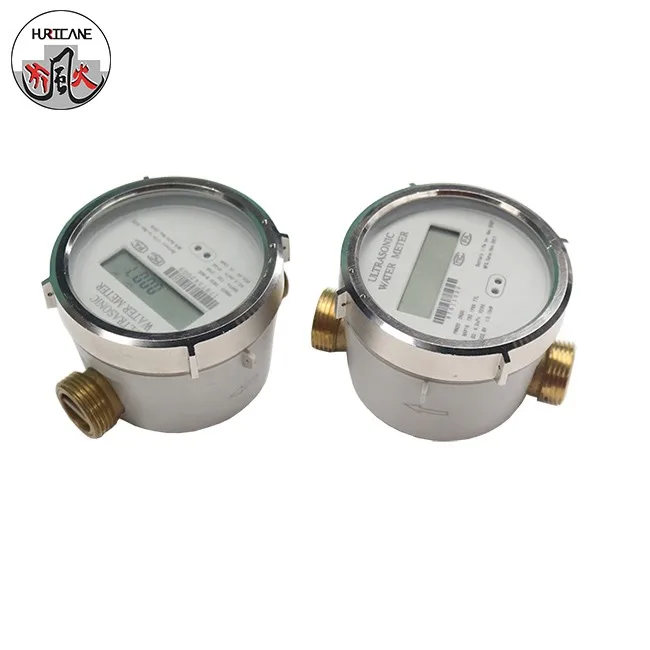

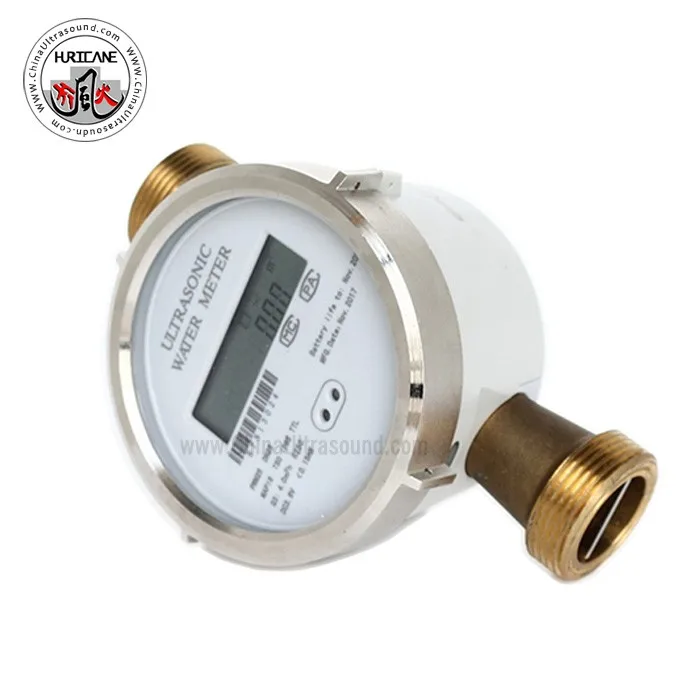

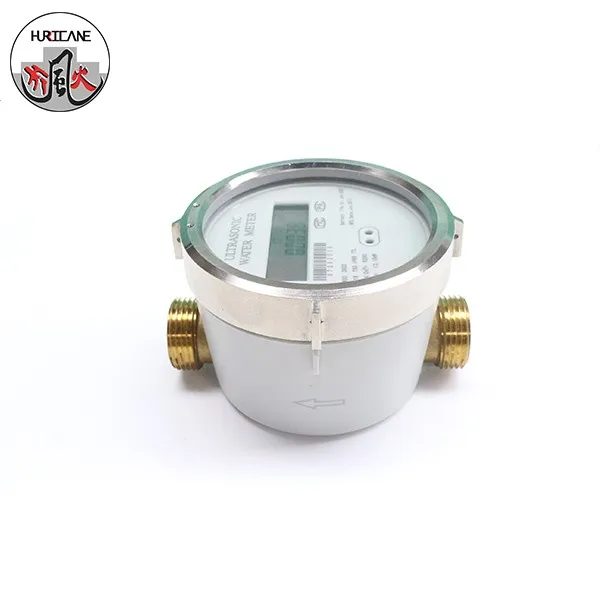

Detailed ImagesSpecification Diameter Unit DN15 DN20 DN25
Pipe Size
ID 17mmOD 26mm ID 22mmOD 33mm ID 28mmOD 41.5mm
Pipe Material
Brass Brass Brass
Meter Size MM 130x117x77 130x117x77 130x117x77
Overload Flow Rate m3/h 3.125 3.125 3.125 3.125 5 5 5 5
Permanent Flow Rate m3/h 2.5 2.5 2.5 2.5 4 4 4 4
Transitional Flow Rate m3/h 0.025 0.016 0.016 0.025 0.04 0.0256 0.0256 0.04
Minimum Flow Rate m3/h 0.015 0.01 0.01 0.015 0.025 0.016 0.015 0.025
Starting Flow Rate m3/h 0.02
Connecting Thread Inch G3/4B G1B G11/4B
Pressure Loss at Q3
△P40
Dynamic Range
R160, R250(optional)
Water Pressure Rating
MAP10(1.0MPa), MAP16 (1.6MPa)(optional)
Water Temperature 1-50 (Default)
Accuracy Class % 2
Ambient Class
Class C
Protection Class
IP68
Measurement Cycle S 0.25
Battery
4 lithium batteries (ER18505) 3800mAh capacity for each (it is 14400mAh in total), Voltage 3.6V
Battery Lifespan Year 10, 15 (optional)
Display Content
Accumulation flow(m 3 ); Instantaneous flow(m 3 /h); Medium temperature()
Maximum Reading m3 999999.999
Minimum Reading m3 0.00001
Instantaneous Flow m3/h 0~5.000
Communication
M-bus, NB-IOT, LoRaWan wireless(Optional)
Water Temperature(Maximum) Default 50 (70, 90 optional)
LoraWAN Network Steps:1. Inside the water meter with LoraWAN module, and it will transmit water flow datas to the Gateway in certain frequency which can be set-up by customers.
2. When the Gateway receives the datas, it will upload them to Network server immediately, since it is transparent transmission, no need to worry about the datas format.
3. If you would like to send some commands to water meters, for example, close the valves or change the datas upload frequency you could make your choice on your platform and the communication protocol will be offered.

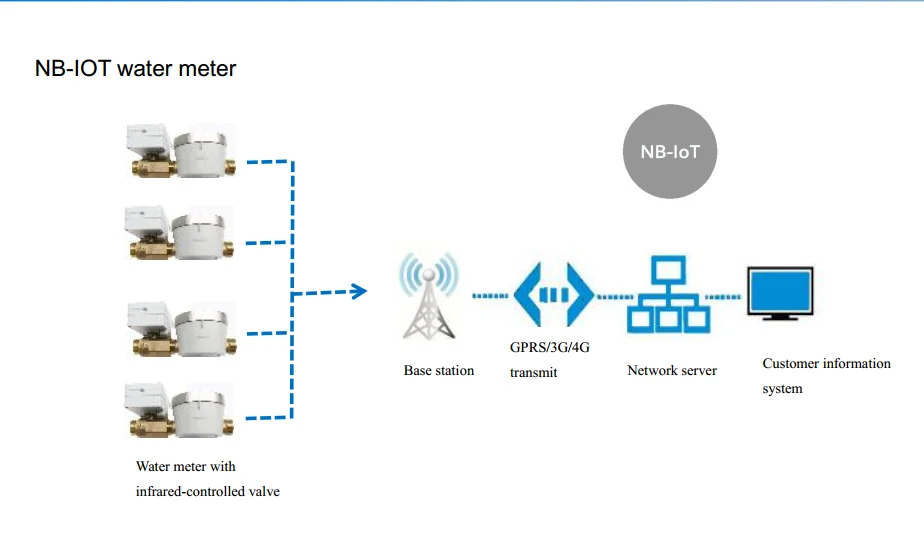

NB-IOT Network Steps:1. Inside the water meter with NB-IOT module, and it will transmit water flow datas to the local base station in certain frequency which can be set-up by customers.
2. When the base station receives the datas, it will upload them to Network server immediately, since it is transparent transmission, no need to worry about the datas format.
3. If you would like to send some commands to water meters, for example, close the valves or change the datas upload frequency you could make your choice on your platform and the communication protocol will be offered.

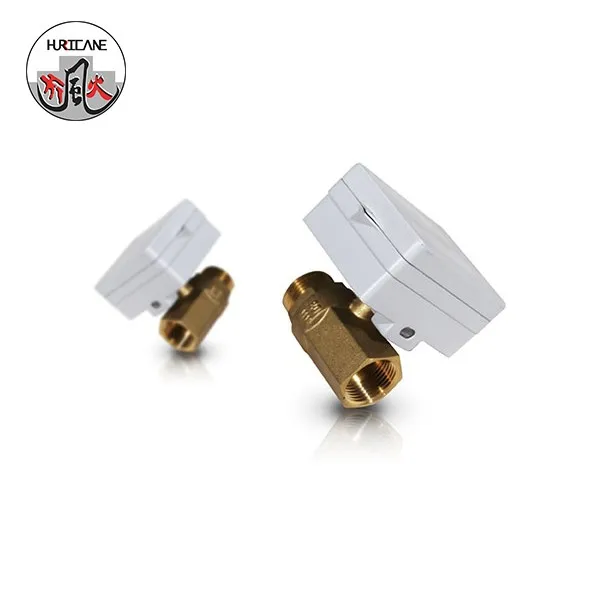

Auxiliary ProductWireless Valve For Remote Control.
Infrared communication
Opening and closing of the valve could be controlled remotely
Build-in two batteries, 10years lifespan
IP68 protection.
Description/Diameter DN15 DN20 DN25
Size mm 110x78x97 110x78x99 110x78x135
Connecting thread
G 3 / 4 B G1B G1 1 / 4 B
Pipe inner diameter mm 15 20 20
Nominal pressure Mpa 1.6
Protection class
IP68
Battery
2 Lithium batteries (ER18505)
Battery lifespan Year 10
Type of valve Ball valve, Stainless steel valve core
Material
Brass
Switching reaction time
<15
Communication mode
Infrared
Our ServicePre-Sales Service* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal , training how to use the meter.
Packing & Delivery Packaging
Size 24 (L) * 15 (W) * 12 (D)cm
Weight
1.5 kg
Packaging Details The normal package is paper box(Size: L*W*H). Or we will pack it according to customers special request.

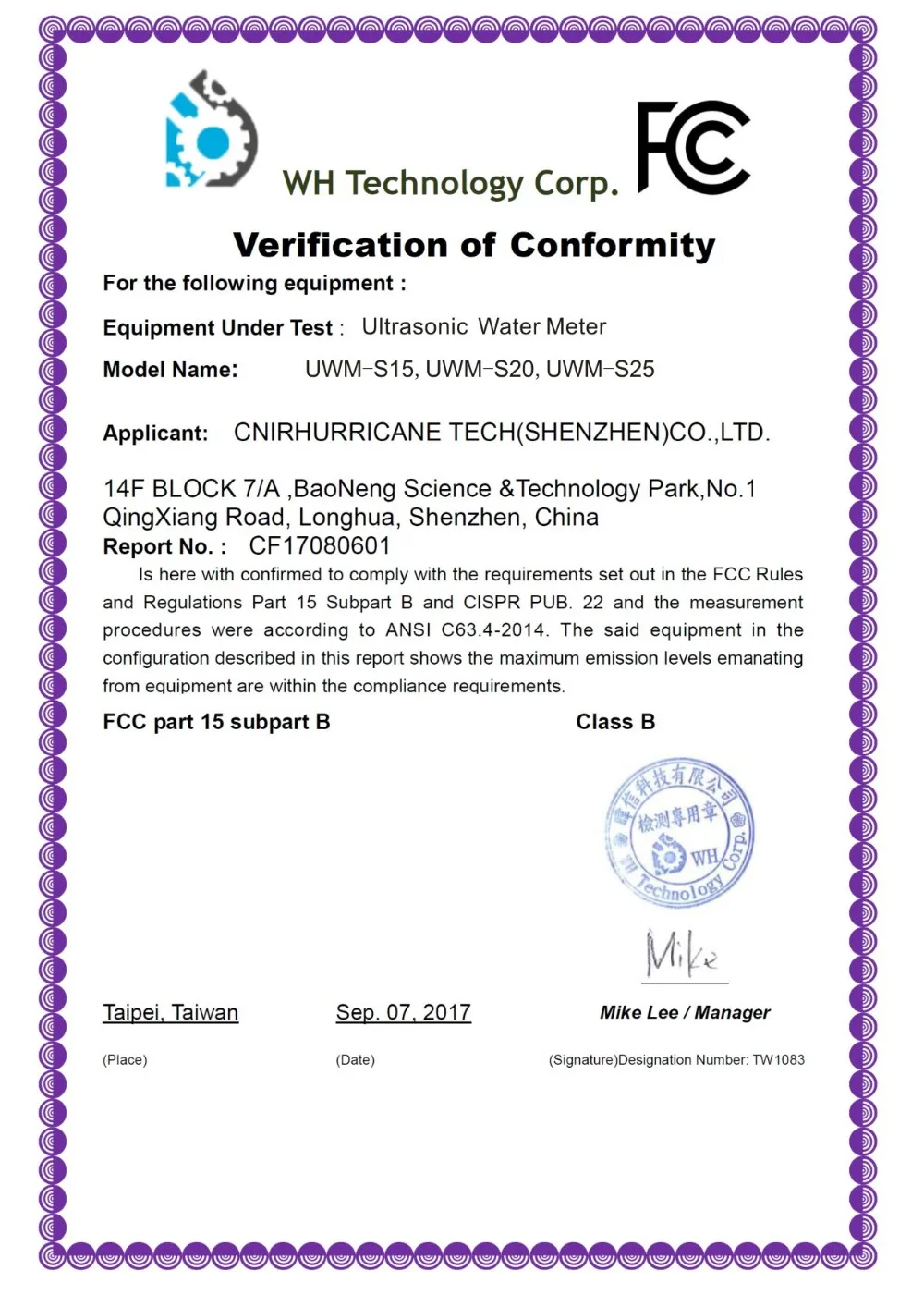

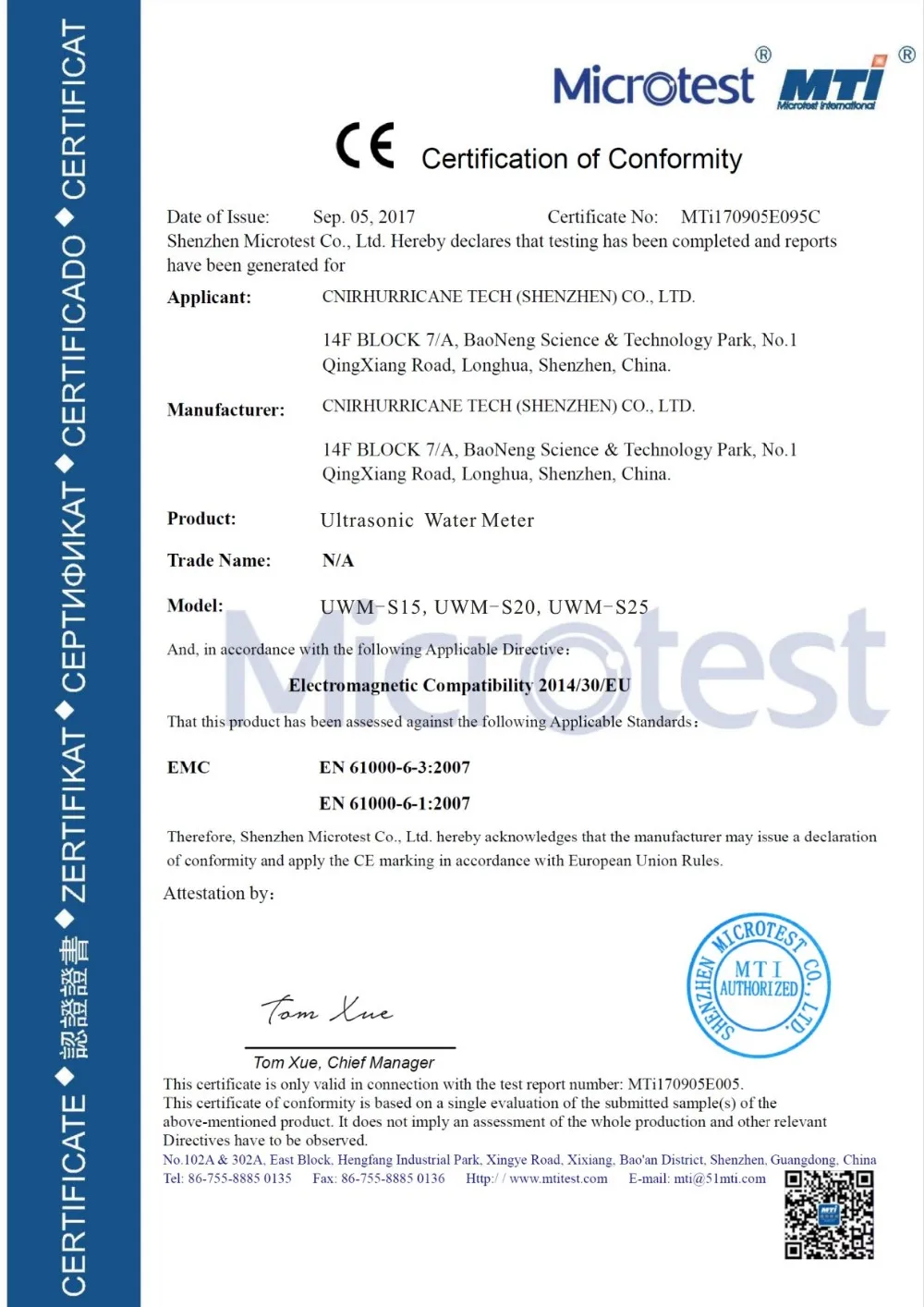

Certificates
