Introduction of GRT103GRT103 is a set of equipment used for acquisiting, transmitting and receiving signal data for wireless transmission in industrial processes.
GRT103 is divided into two parts: GRT103-T (Transmitter) and GRT103R (Receiver).
♦GRT103-T can collect 6 channels of 4-20mA analog signals, realize 1000m-5000 distance data transmission through SWSN or Lora, data is received by gateway (GRT103R), gateway converts analog signals into 4-20mA, relay, RS485, etc. Signal output. Can be connected to computer PLC, touch screen, digital display, etc.
♦It is used for occasions where wiring is inconvenient, saving wiring costs, making measurement and control more convenient and intelligent.
GRT103 4-20mA Relay RS485 Wireless Current data acquisiting and receiving lora gateway - ANKUX.COM

SpecificationsOutput
4~20mA, Relay, RS485
Number of channels
4~20mA: 4ways
relay: 2watys
Accuracy
0.5%F.S
Power
10~28VDC
Wireless transmission
SWSN 433M 470M
LORA 433M 470M
Standby power consumption
<0.03mA
Transmission Distance SWSN sight distance:
1000m (normal barrier environment 80-160 meters)
LORA sight distance:
5000m (barrier environment 500-1000 meters)
Transmitter connection channel number
1~32
Working environment
Temperature:-30~80
Humidity<95% No condensation
RS485 protocol MODBUS RTU protocol 9600 19200 115200
Size
145*90*40mm(without antenna)
Dimensions GRT103 4-20mA Relay RS485 Wireless Current data acquisiting and receiving lora gateway - ANKUX.COM

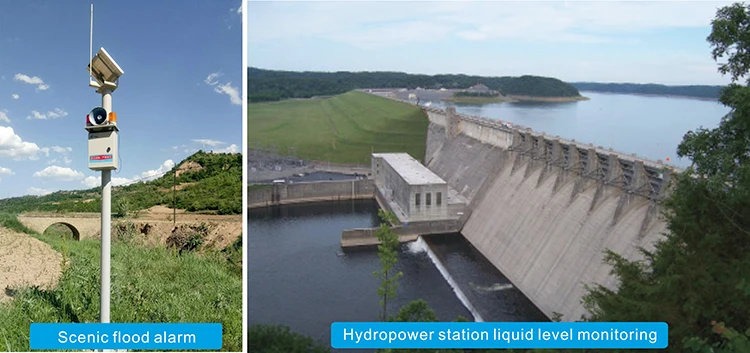

ApplicationThey are widely applied in fields of IoT, wireless meter reading, smart home, smart city, fire safety, industrial manufacturing, agriculture and forestry monitoring, building energy saving etc..
GRT103 4-20mA Relay RS485 Wireless Current data acquisiting and receiving lora gateway - ANKUX.COM

Package&ShippingContact us
Standard export package: each unit has individual box and all boxes are packed in standard packages
As the clients requirement
GRT103 4-20mA Relay RS485 Wireless Current data acquisiting and receiving lora gateway - ANKUX.COM

Service standards: we are committed to providing a high quality,and responsive services&n bsp;to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all& nbsp;products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in sta ndard packages.
OEM available
