GPRS Modbus Ethernet Data Logger gsm electric meter with digital output

IoT / LoRa

GSN8-MS is a Modbus data collector with temperature, analog, pulse and digital channels.
Data is delivered via GPRS, Ethernet and SMS.
[detail]
It is a GPRS Ethernet Modbus Data Logger with programmable I/O.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* 2 Temperature Sensors (max.)
* 1 Humidity Sensor
* 8 Analog Channels (max.)
* 10 Digital Inputs
* 4 Pulse Channels
* 4 Relay Outputs
* Modbus RS485 Interface
* 16 Modbus Data Registers
* 32GB SD memory card slot
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
Specification
Power Input
-- 9 ~ 15VDC
Data Upload
-- On Schedule / Manual Request / Alarm Triggered
Protocol
-- [Ethernet - UDP & TCP], [GPRS - UDP & TCP]
Certificate
-- CE, RoHS
Display Type
--Analog and Digital
Internal Data Record
-- Average 30000 records (4MB)
Alarm Trigger
-- Digital Alarm / AD Level High or Low / Power Loss
Digital Channel
-- Alarm Dry Contact
Signal Type
-- 4~20mA or 0~5VDC
Alarm Trigger
-- Digital Alarm / AD Level High or Low / Power Loss
Data Logging Interval
-- Programmable (1 ~ 60 minutes)
Pulse Channel
-- On/Off Switching
Data Transmission
--GPRS, SMS, Ethernet
Output
--5VDC
Data Upload Interval
-- Programmable (5s ~ 24 hours)
Temperature Channel
-- -55 ~ 125 °C
Industrial Protocol
-- Modbus
Modbus Device Port
-- RS485
Modbus Device Support
--16 data registers
Application
-- industrial
Features
1) Real Time GPRS, Ethernet and SMS Data Upload
2) Integrated 16 bit MCU & Siemens GPRS Ethernet Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup by GPRS, SMS or Ethernet
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup
Free Software:
[1] Setup software is bundled for routine configuration via Ethernet remotely, or via USB port locally

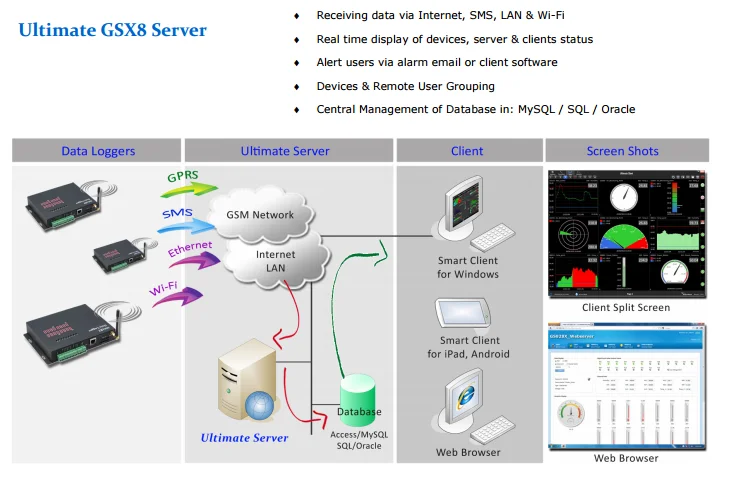

[2] Centre software is also provided for receiving data via GPRS, Ethernet.

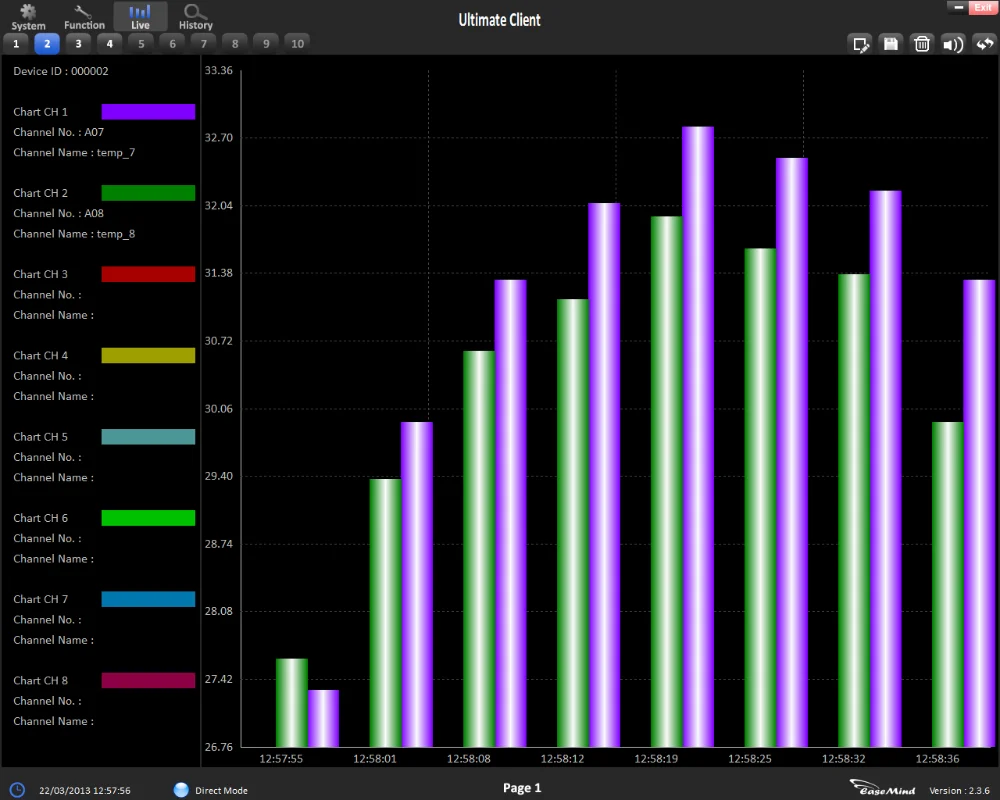

[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display
GPRS Modbus Ethernet Data Logger gsm electric meter with digital output - ANKUX.COM

[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via SMS/GPRS, Ethernet
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
GPRS Modbus Ethernet Data Logger gsm electric meter with digital output - ANKUX.COM
