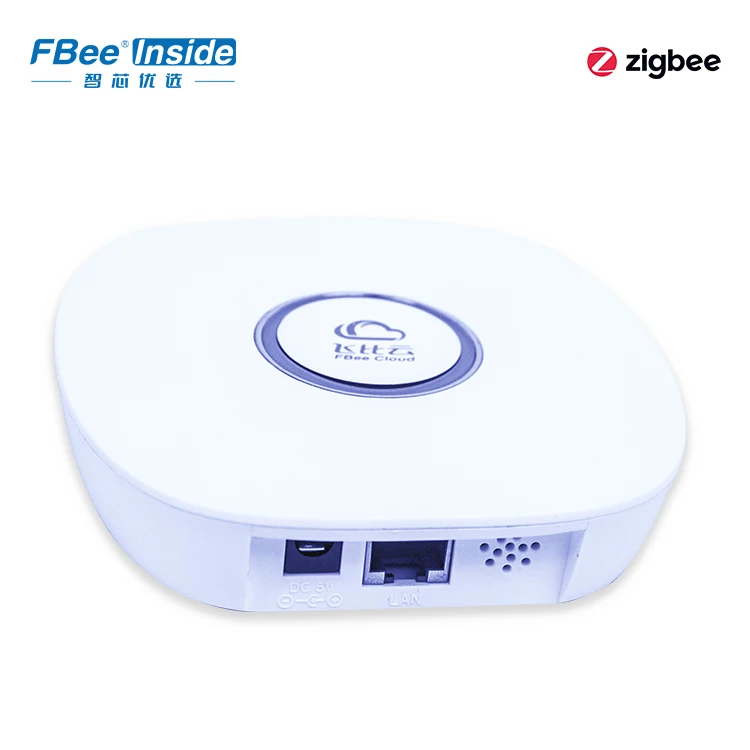

Google Home Assistant Voice Control Zigbee Gateway Hub
Product Detail
This is a Zigbee gateway acts as a control center based on ZigBee technology and equipped with standard Ethernet interface. It"s applicable to any ZLL/ZHA devices and able to be controlled through APP. It also can be controlled by WeChat.
Main Features
l Support WIFI or Ethernet
l 2.4GHz ISM band transceiver, total 16 channels
l 5V DC supply
l Interoperable with certificated ZHA/ZLL products
l Support HomeKit Standard
l Controlled by WeChat(HTML5)
l Easy operation and setting
Technical Parameter
Power Supply
DC5V 200mA
Channel
11~26
Frequency
2405~2480 MHz
Receive Sensitivity
-97dBm
Output Power
20dBm
Operating Ambient
Temperature:-10~+50Humidity:≤95%RH
Communication Range
300m(outdoor)
Dimension
108*108*25mm
Product Show
Support customer print LOGO &customized box OEM LOGO

Our Clients

Our Team

Exhibition

Factory & RD Team

Troubeshooting
Problem
Solution
How to make devices to network with gateway
Press the center button on gateway to allow joining in, use pin to long press device reset button until LED light flashes rapidly
How to exit from the gateway
Long press device reset button until LED light flashes.
Want to have detailed manual for every device
Go to http://www.brimate.com/download/ to download user manual.
