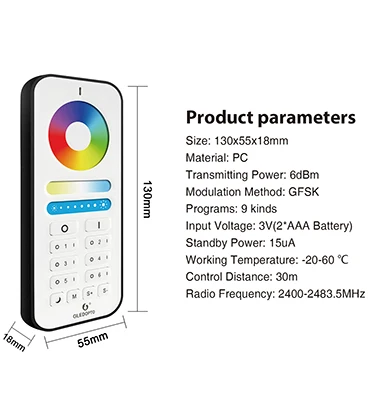

Product Paramenters
Main Specs of ZigBee LED Strip Controller PlusInput Volt. 3V (2*AAA Battery)
Standby Power 15uA
Transmitting Power
6dBm
Radio Frequency 2400-2483.5MHZ
Lighting Color RGB+CCT
Remote Distance ≤30Meter
Shelf Material PC
Working Temp. -20C~60C

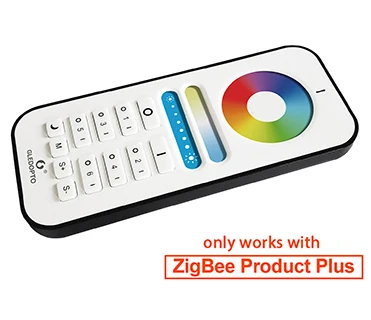

6-Zone RF Remote for Gledopto ZigBee Plus Version Lamps & Controllers> Gledopto 6-Zone RGB+CCT LED Remote Control is special designed for all PLUS series ZigBee LED Lamps and Controllers.

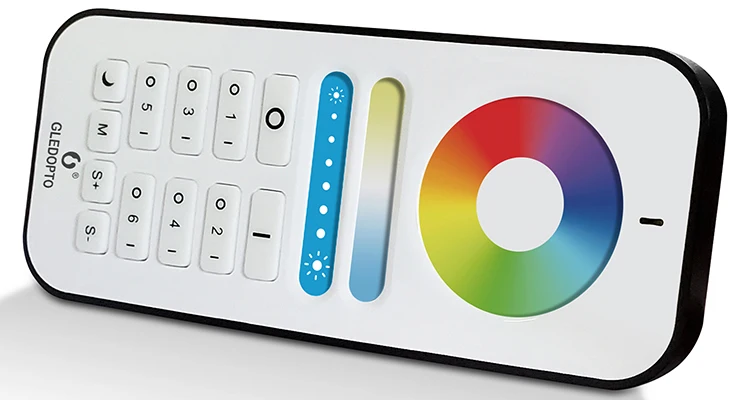

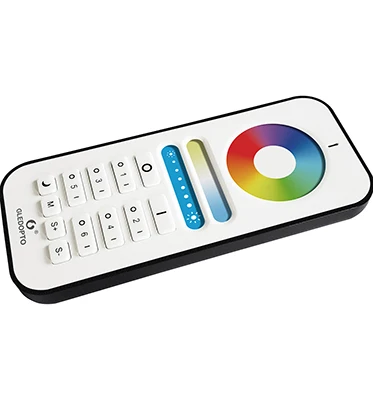

> The housing material is made of finest PC material, white front surface + black back shell given fashionable appearance. It has the high sensitive color ring and slide bar which can make you to select and switch different lighting colors or adjust brightness with touch control.
> There are 6 zones placed onto the remote, which can let you pair different RGBCCT LED lights or controllers into the zone you want, make individual or group control to the lamps/controllers connected. Each zone can be linked with unlimited numbers of Plus version lamps or controllers.
> For users have no ZigBee hub, this remote control will be your best choice to make easy & quick lighting control without the hub.
2.4G RF Remote Control Lighting Control Features
It is an alternative controlling to ZigBee 3.0 control, you can experience the following wireless lighting control without a hub.
> 16 Million different staticcolor changes
> 9 dynamic lighting color changing program
> White color tunable from 2000K to 6500K through the CCT slide bar
> Brightness dimmable from 1% to 100% full brightness
> Master on/off button which enable you to control all lights or controllers linked all at once
> 6-Zone group controlling, each group can be paired with unlimited lamps or controllers Plus version
> Night light mode available; with 60s off delay function
>
Auto sync & transfer - the lighting control signal can be automatically synced & transferred from lamp to lamp or controller to controller
User Instruction of Gledopto RGBCCT Remote Control
Battery InstallationPlease take the remote control and carefully press the battery cover and push it away in a downward direction. Install 2x AAA batteries, to exactly match the negative (-) pole of each battery to the largest spring. Don't touch the color ring when you install the batteries. Place the battery cover back and install the cover tightly.
Link & Unlink RGB And CCT Remote Control to ZigBee Plus Version LED Products
More Features & Lighting Application
