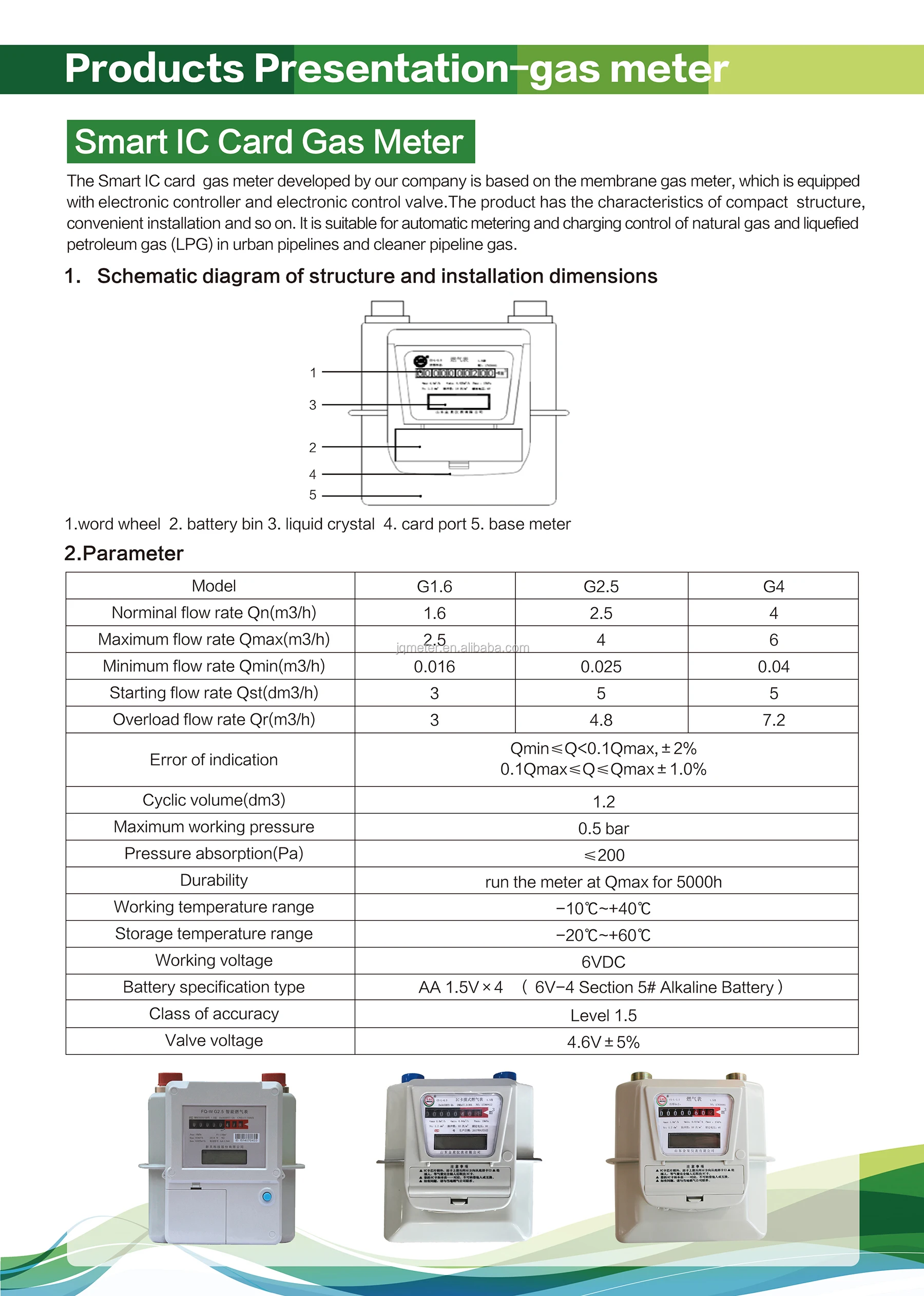

The principle of IC Card Prepaid electronic Gas meter is measurement of flow meter can achieve prepayment function by incorporating built-in valve. According to user requirements, the remote reading and control functions can be further added.
1. Prepaid RF card technology: using wireless data transmission, waterproof, moisture-proof and anti-attack.
2. Micropower consumption technology: adopt timing test technology, the usual power consumption of gas meter is less than 20μA, such technique can prolong service life of the batteries.
3. Electrical valve: adopt modern electrical valve, which work reliably and pressure loss is low.
4. Totally sealed design: all the circuits are sealed by high performance casting glue, there is no exposed electrode, good leak tightness.
5. Anti-attack of external electricity and magnet: If the gas meter is attacked by external electricity and magnet, it will automatically close valve and give indication.
6. Micro-computer and micro-storage technique: high integrated and high reliability.

Advantages
1.Only one airflow channel
2.No moving parts
3.No abrasion
4.Long service life over 20 years
5.Precision without changed
6.Prepaid Function
7.Emergency Function
8.Two-way data protection
9.Anti-attack of external magnetism
10.Double Display.
