FST100-1102 433mhz Industrial nb-iot Wireless Probe Pressure Sensors Transducer Product Introduction

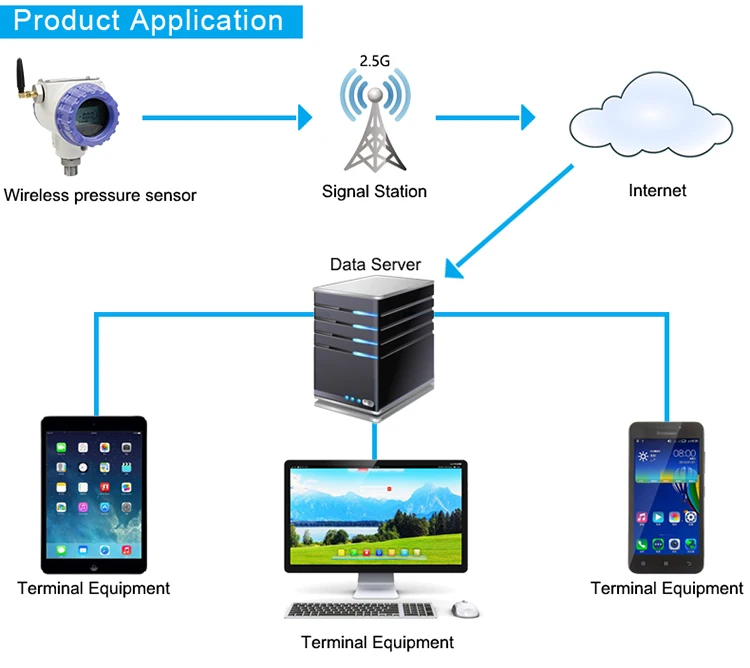

FST100-1102 433mhz Industrial nb-iot Wireless Probe Pressure Sensors Transducer uses high-quality imported pressure-sensitive core, and is equipped with ultra-low-power microprocessor and high-precision sensor signal conditioning circuit. LoRa transmission mode is adopted to realize on-site monitoring data to wireless transmission in the cloud. The customer can obtain the measurement data by logging in to the relevant website through the Internet PC or the mobile terminal, and realize the statistics and analysis of the collected data, and form the report and the data curve, which is intuitive, accurate and efficient. The product is mainly used in unattended operation, such as oil, gas, heating, water and fire pipeline pressure monitoring and industrial automation.
Product Features
♦ Low power design, powered by lithium battery
♦ Eliminate wiring construction, easy installation and maintenance
♦ LoRa wireless transmission method
Applicable Scope
♦ Industrial process detection and control
♦ Pump station and water treatment system
♦ Automated inspection system
♦ Unattended and dangerous areas
Product Specification (Technical Parameters)
Measuring medium water, Gas, Oil
Measurement range -100kPa~0~20kPa...60MPa
Power supply voltage
3.6V battery power supply 12~30VDC external power supply
Accuracy
±0.5 %FS ±1%FS
Temperature compensation
-10~+70
Working temperature
-20~+60
Long-term stability (1 year)
≤0.2%FS
Overload pressure 200%FS
Working frequency band
470MHz/868MHz
Sampling frequency
10s~12h can be set (default 10s)
Sending frequency
1min~1440min can be set (default 2min)
Communication Protocol Private Protocol/LoRaWAN (Class A, OTAA Mode Activation)
Protection grade
IP65
Housing Material
Aluminum Die Casting, 304 stainless steel
Pressure interface
M20x1.5, G1/4 or other threads
Power consumption current
Sleep current: <5uA, sampling current: <5mA
Transmit current: <140mA, receiving current: <20mA
Battery capacity
12000mAh
Display mode
6-segment LCD display
Storage environment
Temperature -40~+80°C, humidity: 0~95%RH
