for panel light 26v 32v 35v dc 850ma 950ma cct dimming wifi zigbee ZLL ZHA led driver

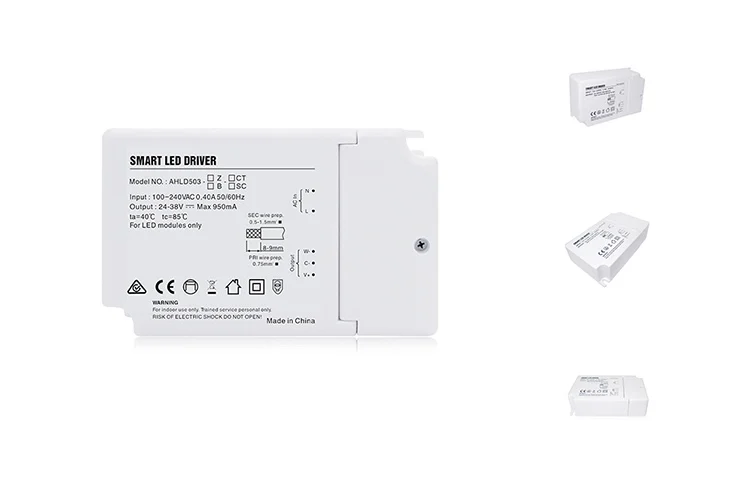

AHLD503 is a ZigBee ZLL/ HA compatible 2.4G wireless control constant current LED driver with max 40W output, available in 2 versions. 2-channel version is used for cct adjustable function, while 1-channel version is used for single color dimmable function. It"s designed for commercial LED panel light and high power ceiling light. The output voltage ranges from 12VDC to 38VDC
Features
1-channel or 2-channel optional.
2-channel output for color temperature adjustable feature.
1-channel output for brightness dimmable feature.
Support ZigBee wireless control with a ZLL or ZigBee gateway
Specs
Terminal
Comment
AC Input
L
AC 100V-240V
N
LED DC output
W-
2-Channel for color temperature
adjustable light. (Common Anode).
C-
V+
Parameters
AHLD503-ZLL
Input power
100-240VAC
Channels
2-channel or 1-channel
Output Current
950mA MAX
Output DC
12-38V
PF
> 0.9
EFFICIENCY
Max 85%
Wireless frequency
2.4GHz
Operation temperature
-20°C to 55°C
No land power
<0.5W
