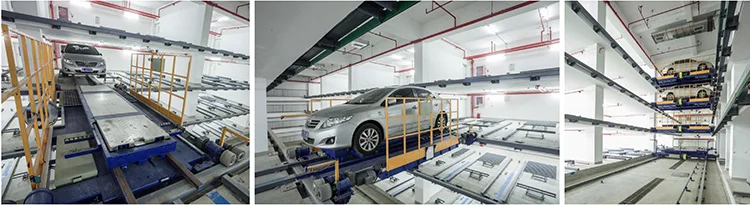

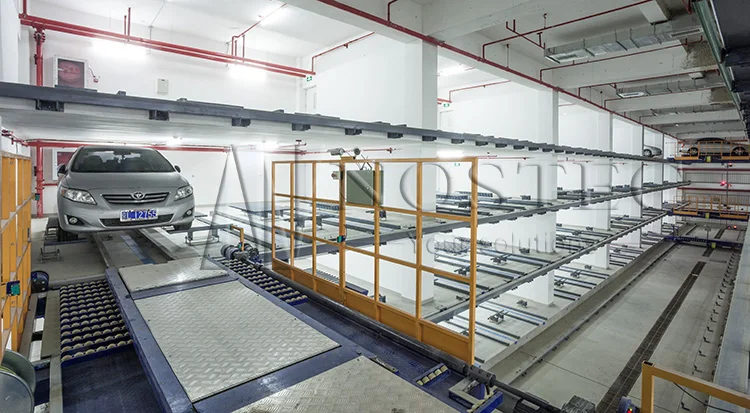

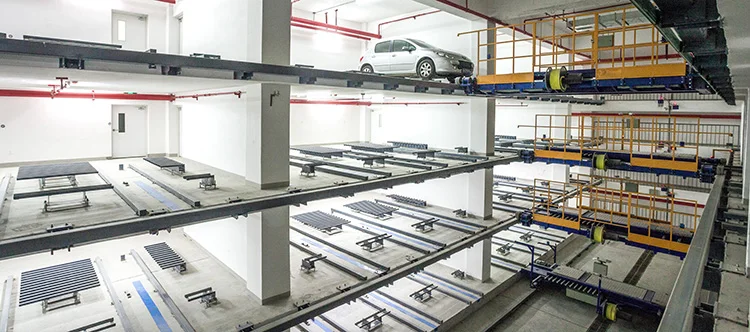

valet parking equipment utilize several vertical lifts and horizontal shuttles that operate together. The shuttles and lifts can work at the same time ensuring excellent access times despite the large number of parking spaces. They operate on multiple levels; over-ground, underground or a combination of both.

Product details 1. Key features
Fully automatic operation
Anti-theft and damage protection
Efficient space utilization
Fast car retrieving
Easy PLC type Controls
Above and / or underground available
Vertical levels: 2 to 12 parking levels

2. Specifications
Model
PPY valet parking equipment
Parking levels
2-12 levels
Capacity
At least 60 vehicles
Car size
Car weight
≤2800kg
Max Car size(T type)
5300*1950*1950mm
Max Car size(D type)
5000*1850*1550mm
Specifications
Motor
Lift Motor
Max 22kw
Traverse motor
1.5 kw
Speed
Lift speed
30-90m/min
Traverse speed
80-120m/min
Average retrieval time
90s
Conveyance system
Comb-exchange
Operation mode
Button, IC Card, Touch screen
Control system
PLC control
Power
3-Phase AC380V/50Hz
Entrance
Automatic door
Floor space required
rectangular
