Factory Hot selling wireless rf transceiver module 6LoWPAN cc2630 zigbee module home automation product free sample
[IC] : CC2630
[Frequency] : 2.402~2.480GHz
[Power] : 5dBm
[Distance] : 0.5km
[Interface] : I/O

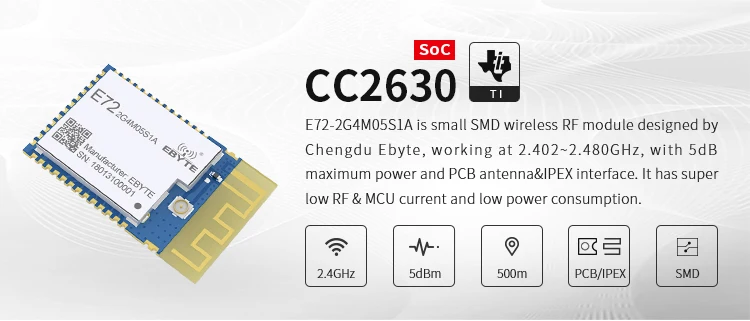

[Introduction] : E72-2G4M05S1A is small SMD wireless RF module designed by Chengdu Ebyte, working at 2.402~2.480GHz, with 5dB maximum power and PCB antenna&IPEX interface. It has super low RF & MCU current and low power consumption.
RF Parameter Value
Remark
Working frequency
2402~2480 MHz Default: 2.4GHz (24MHz oscillator)
Transmitting power 5 dBm About 3.2mW
Receiving sensitivity -99 dBm
Air data rate: 250kbps
Air data rate
1Mbps Please refer to ic datasheet for IEEE802.15.4
Test distance 150m / 500m
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,
air data rate: 250kbps
Electronic parameter Min. Typ. Max. Unit
Power supply
1.8 3.3 3.8 V
Communication level 2.4 3.0 3.3 V
Transmitting current
8.3 9.1 12.3 mA
Receiving current
5.8
6.1 7.2 mA
Sleep current
1.0
1.2 2.7 μA
Operating temperature
-40 20
+85
Operating humidity
10 60
90 %
Storage temperature
-40 20
+125

Manual support
