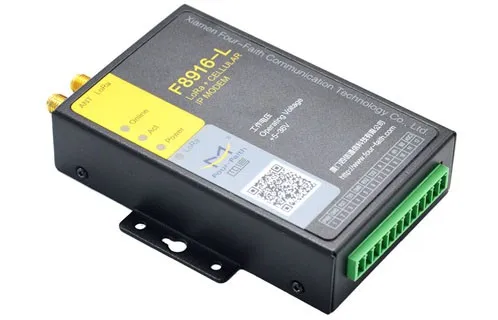

F8916-L Series IP MODEM is a kind of cellular terminal device that provides data transfer by public cellular network. At the same time using Lora wireless transmission technology for short distance data transmission.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has low power consumption states in which the power consumption could be lower than 5mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Features:
Design for Industrial Application
High-powered industrial LoRa module
High-powered industrial cellular module
High-powered industrial 32 bits CPU
Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
Housing: iron, providing IP30 protection.
Power range: DC 5~36V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and overvoltage protection
Antenna port: lightning protection(optional)
Standard and Convenience
Adopt terminal block interface, convenient for industrial application
Support standard RS232 and RS485(or RS422) port that can connect to serial devices directly
TTL logic level RS232 interface can be customized
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface
High-performance
Support TCP server and support multi TCP client connection(optional)
Support double data centers, one main and another backup
Supply 2 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
Support multi data centers and it can support 5 data centers at the same time
Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support dynamic domain name(DDNS) and IP access to data center
Design with standard TCP/IP protocol stack
Support APN/VPDN
Support transferring data via LoRa
Product Pecification Cellular Specification
F8916-L-G LoRa+GPRS IP MODEM
Item Content
Standard And Band
Egsm 900/Gsm 1800Mhz, Gsm 850/900/1800/1900Mhz(Optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional)
Bandwidth 85.6Kbps
TX power
GSM850/900:<33dBm
GSM1800/1900:<30dBm
RX sensitivity <-107dBm
F8916-L-C LoRa+CDMA IP MODEM
Standard and Band CDMA2000 1xRTT 800MHz, 450MHz(optional)
Bandwidth 153.6Kbps
TX Power <30dBm
RX Sensitivity <-104dbm
F8916-L-W Lora+Wcdma Ip Modem
Standard And Band Umts/Wcdma/Hsdpa/Hsupa/Hspa+ 850/1900/2100Mhz, 850/900/1900/2100Mhz (Optional)
Gsm 850/900/1800/1900Mhz
Gprs/Edge Class 12
Bandwidth Dc-Hspa+: Download Speed 42Mbps, Upload Speed 5.76Mbps
Hspa+: Download Speed 21Mbps, Upload Speed 5.76Mbps
Hsdpa: Download Speed 7.2Mbps, Hsupa: Upload Speed 5.76Mbps
Umts: 384Kbps
Tx Power <24dbm
Rx Sensitivity <-109dbm
F8916-L-V Lora+Evdo Ip Modem
Standard And Band Cdma2000 1X Evdo Rev A 800Mhz, 800/1900Mhz(Optional), 450Mhz(Optional)
Cdma2000 1X Evdo Rev B 800/1900Mhz(Optional)
Cdma2000 1X Rtt, Is-95 A/B
Bandwidth Evdo Rev. A: Download Speed 3.1Mbps, Upload Speed 1.8Mbps
Evdo Rev. B: Download Speed 14.7Mbps, Upload Speed 5.4Mbps (Optional)
Tx Power <23dbm
Rx Sensitivity <-104dbm
F8916-L-Tl Lora+Tdd Lte Ip Modem
Standard And Band Lte Tdd 2600/1900/2300Mhz(Band 38/39/40), 800/1400/1800Mhz(Band 27/61/62)(Optional)
Td-Scdma 2010/1900Mhz(A/F Frequency Band, Band 34/39)
Gsm /Gprs/Edge 900/1800/1900Mhz
Bandwidth Lte Tdd: Download Speed 61Mbps, Upload Speed 18Mbps
Td-Hspa+: Download Speed 4.2Mbps, Upload Speed 2.2Mbps
Td-Hspa: Download Speed 2.2Mbps, Upload Speed 2.2Mbps
Tx Power <23dbm
Rx Sensitivity <-97dbm
F8916-L-Fl Lora+Fdd Lte Ip Modem
Standard And Band Lte Fdd 2600/2100/1800/900/800Mhz, 700/1700/2100Mhz(Optional)
Dc-Hspa+/Hspa+/Hsdpa/Hsupa/Umts 850/900/2100Mhz, 800/850/1900/2100Mhz (Optional)
Edge/Gprs/Gsm 850/900/1800/1900Mhz
Gprs Class 10
Gprs Class 12
Bandwidth Lte Fdd: Download Speed 100Mbps, Upload Speed 50Mbps
Dc-Hspa+: Download Speed 42Mbps, Upload Speed 5.76Mbps
Hspa+: Download Speed 21Mbps, Upload Speed 5.76Mbps
Hsdpa: Download Speed 7.2Mbps, Hsupa: Upload Speed 5.76Mbps
Umts: 384Kbps
Tx Power <23dbm
Rx Sensitivity <-97dbm
F8916-L-L Lora+Lte Ip Modem
Standard And Band Lte Fdd,Lte Tdd,Evdo,Wcdma,Td-Scdma,Cdma1X,Gprs/Edge
Bandwidth Lte Fdd: Download Speed 100Mbps, Upload Speed 50Mbps
Lte Tdd: Download Speed 61Mbps, Upload Speed 18Mbps
Dc-Hspa+: Download Speed 42Mbps, Upload Speed 5.76Mbps
Td-Hspa+: Download Speed 4.2Mbps, Upload Speed 2.2Mbps
Evdo Rev. A: Download Speed 3.1Mbps, Upload Speed 1.8Mbps
Tx Power <23dbm
Rx Sensitivity <-97dbm
LoRa Specification
Item Content
Communication Frequency Band Support a variety of frequency bands around the world（433/470/780/868/915 MHz）
Indoor/Urban Communication Distance 2km
Outdoor/Visual Communication Distance 9km
TX Power <30dBm
RX Sensitivity <-140dBm
RF Data Rate 6 level adjustable（0.3、0.6、1.0、1.8、3.1、5.5Kbps）
Interface type
Item Content
Serial 2 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 1200~230400 bps(110,300,600 optional)
Indicator "Power", "ACT", "Online","LoRa"

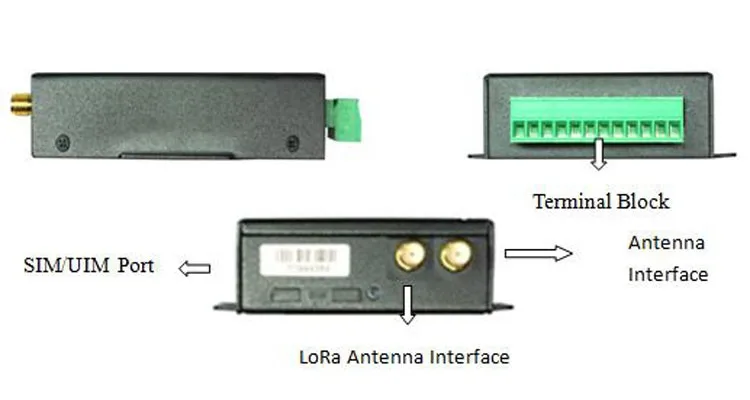

Antenna Cellular :Standard SMA female interface, 50 ohm, lighting protection(optional)
LoRa : Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Terminal block interface, reverse-voltage and overvoltage protection
Power supply
Item Content
Standard Power DC 12V/0.5A
Power range DC 5~36V
Consumption
Working condition Consumption
Standby 35~50 mA@12VDC 55~105 mA@5VDC
Communication
45~165mA@12VDC(2G:45~55 mA 3G:80~165 mA 4G:75~95mA )
105~365mA@5VDC(2G:105~115 mA 3G:165~365 mA 4G:150~200mA )
Sleep 3mA@12VDC 6mA@5VDC
Physical Characteristics
Item Content
Housing Iron, providing IP30 protection
Dimensions 91x58.5x22 mm
Weight 210g
Environmental Limits
Item Content
Operating Temperature -35~+75ºC(-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)
Ordering Information
Model No. Description
F8916-L-G LoRa+GPRS IP MODEM
F8916-L-C LoRa+CDMA IP MODEM
F8916-L-W LoRa+WCDMA IP MODEM
F8916-L-V LoRa+EVDO IP MODEM
F8916-L-TL LoRa+TDD LTE IP MODEM
F8916-L-FL LoRa+FDD LTE IP MODEM
F8916-L-L LoRa+LTE IP MODEM
