F8914 ZigBee TERMINAL for m2m
F8914 ZigBee module is a kind of data terminal device that provides data transfer function by public ZigBee network.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232, RS485 (or RS422) and ZigBee port that can conveniently and transparently connect one device to a ZigBee network, allowing you to connect to your ZigBee devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Product Specification:
Item
Content
ZigBee Module
Industrial ZigBee module
Standard and Band
IEEE 802.15.4
ISM 2.4 GHz
Indoor/Urban Range
60m
90m(for enhanced version)
Outdoor/RF Line-of-Sight Range
100m
800m(for enhanced version)
Transmit Power
0dBm
22dBm (for enhanced version)
Bandwidth
250Kbps
Receiver Sensitivity
-95dBm
-104dBm(for enhanced version)
Network Topologies
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Number of channels
16 Direct Sequence Channels
15 Direct Sequence Channels (for enhanced version)
Channels
11 to 26
11 to 25 (for enhanced version)
Max packge size
1024 Bytes

Product Feature:
Design for Industrial Application
High-powered industrial ZigBee module High-powered industrial 32 bits CPU Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function Housing: iron, providing IP30 protectionPower range: DC 5~35V
Stability and Reliability
Support hardware and software WDT Support auto recovery mechanism, including online detect, auto redial when offline to make it always online RS232/RS485/RS422 port: 15KV ESD protection Power port: reverse-voltage and overvoltage protection Antenna port: lightning protection(optional)
Standard and Convenience
Adopt terminal block interface, convenient for industrial application Support standard RS232 and RS485(or RS422) port that can connect to serial devices directly TTL logic level RS232 interface can be customized Support intellectual mode, enter into communication state automatically when powered Provide management software for remote management Support several work modes Convenient configuration and maintenance
High-performance
Support data transfer by ZigBee network Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.

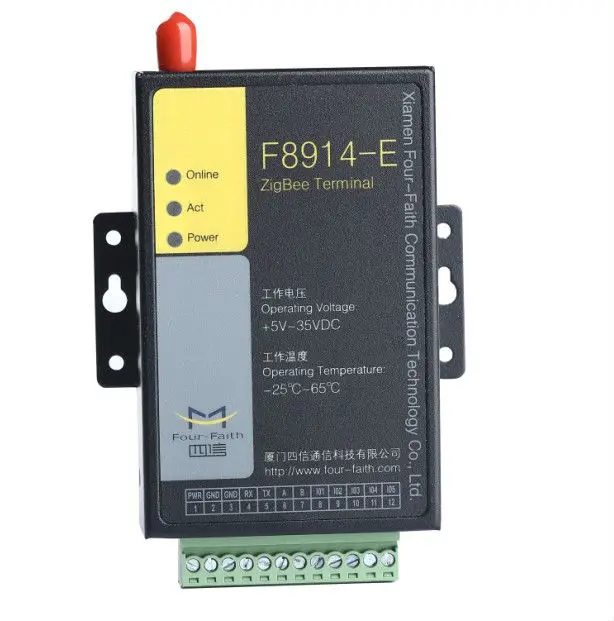

Product images:
